Chapter 4 Backplane Specications

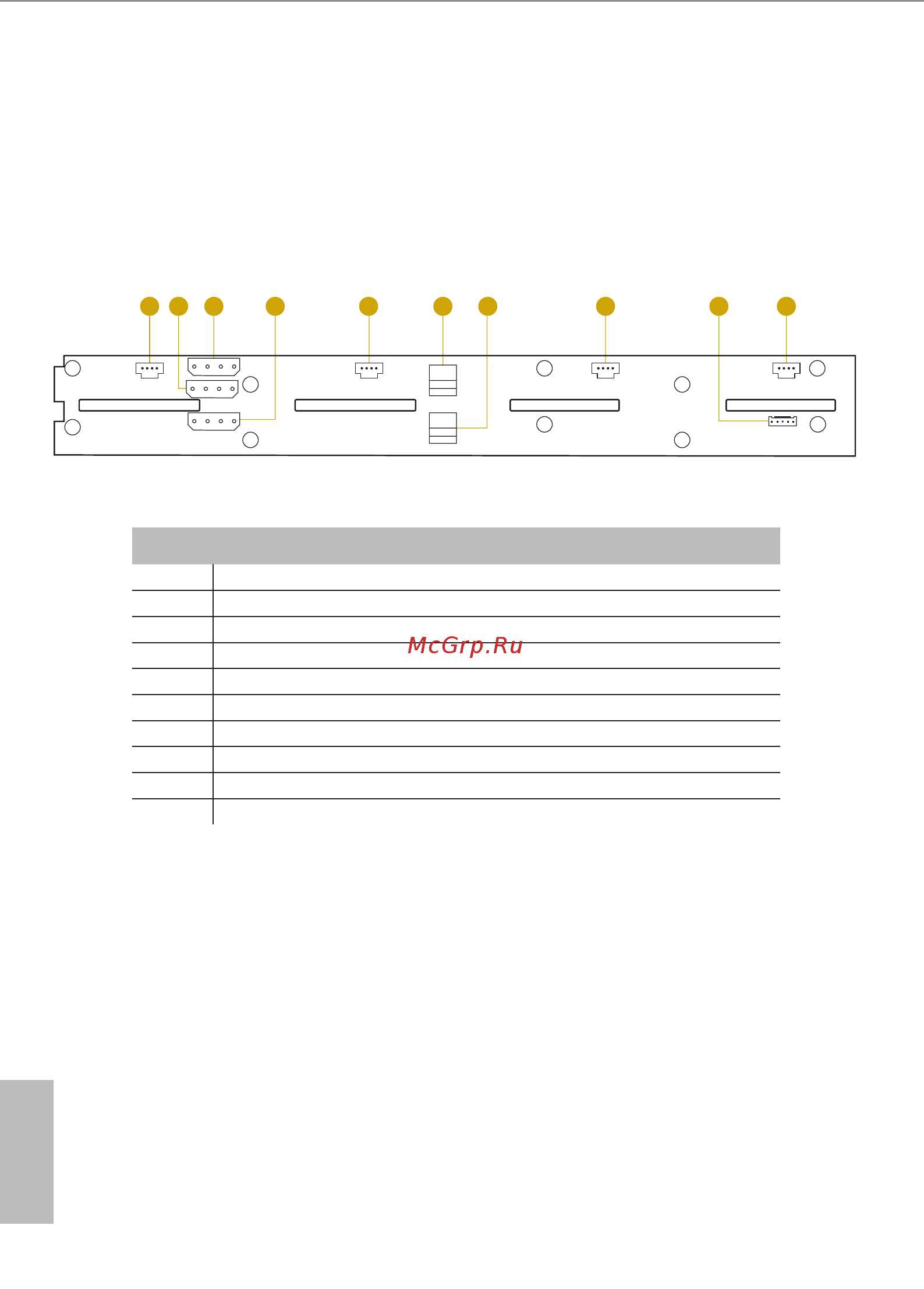

4.1 Hard Drive Backplanes (BPB)
Top View
No. Description
1 SSD Power Connector (PWR_HDD4)
2 HDD Power Connector (PWR_HDD2)
3 HDD Power Connector (PWR_HDD3)
4 HDD Power Connector (PWR_HDD1)
5 SSD Power Connector (PWR_HDD5)
6 Mini-SAS HD Connector (HBA1)
7 Mini-SAS HD Connector (HBA0)
8 SSD Power Connector (PWR_HDD6)
9 BMC SMBus Connector (BMC_SMB1)
10 SSD Power Connector (PWR_HDD7)
1
PWR_HDD1
PWR_HDD2
HBA0
2
3 10
BMC_SMB1
HBA1
PWR_HDD3
PWR_HDD4 PWR_HDD5 PWR_HDD6 PWR_HDD7
4
5
6 7
8
9
