2U4FH-8L
20 21
English

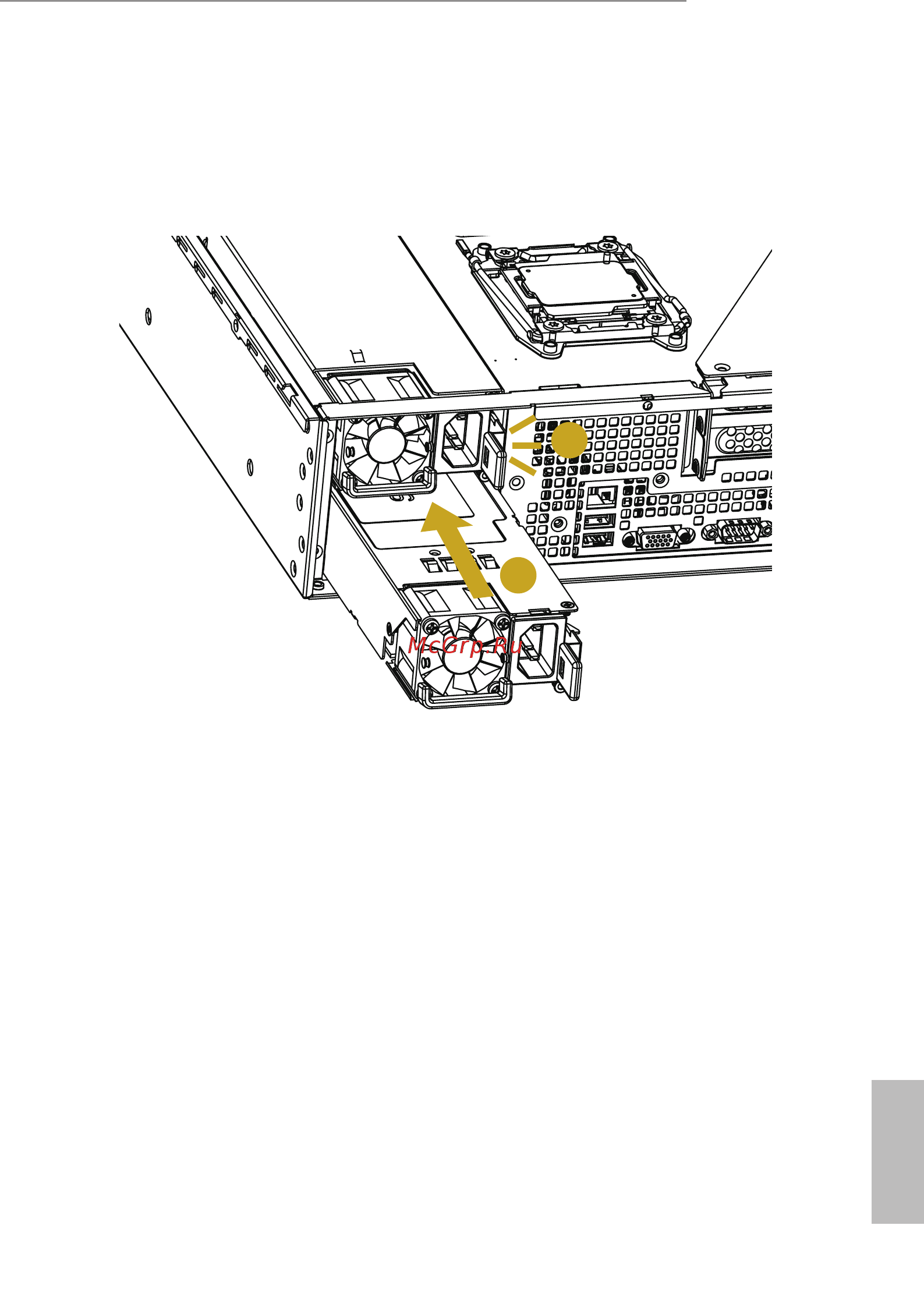

Installing the Power Supply Unit
1. Align the power supply unit with the power supply slot. Ensure that the LED appears
on the lower right corner when you are installing the power supply unit.
2. Carefully slide the PSU all the way into the power supply bay until it clicks into place.
1
2
