3.1 Server Top Cover
Removing the Server Top Covers
2
1
1
1
1
1

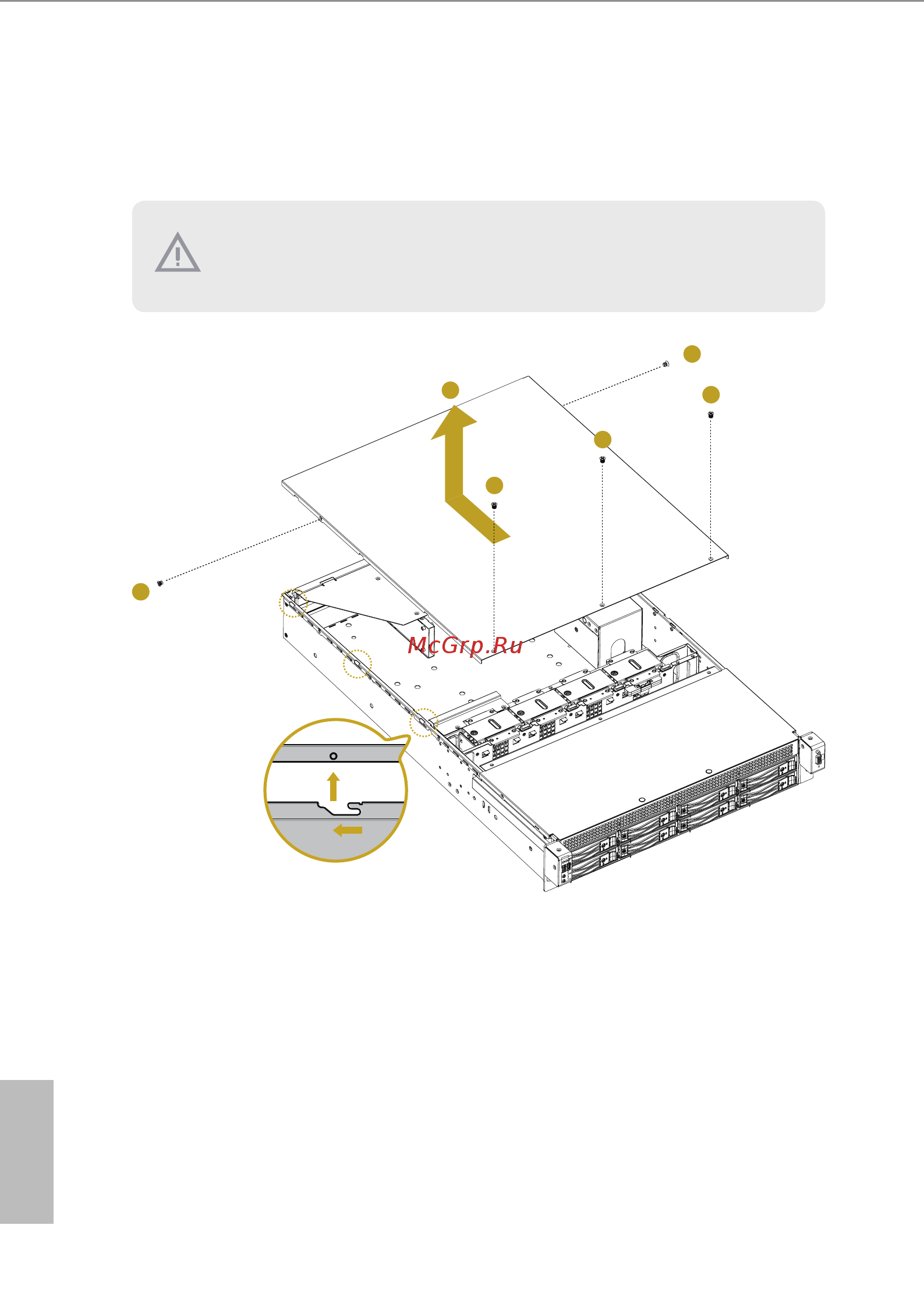

1. Remove the screws that secure the top rear cover to the chassis.
2. Push the top rear cover toward the rear of the chassis to remove the cover from the
locked position. Li up and remove the top rear cover.
1. Before removing the top cover, power o the server and unplug the power cord.
2. e system must be operated with the chassis top cover installed to ensure proper cooling.
