ASRock 2U4FH-8L [28/43] English
![ASRock 2U4FH-8L [28/43] English](/views2/1694126/page28/bg1c.png)
22 23
English
3.4 Add-In Card
Installing an add-in card

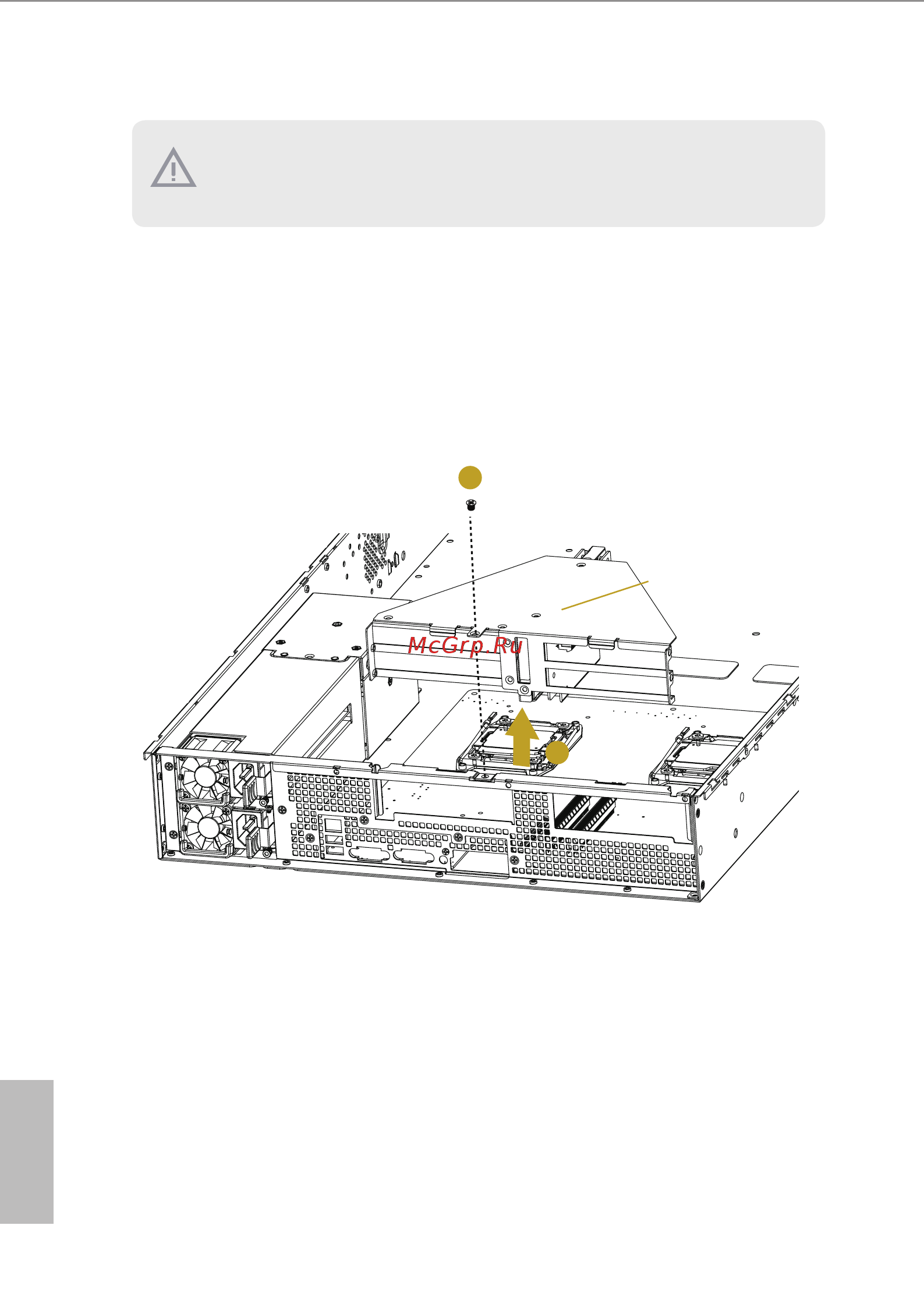

1. Remove the screw securing the riser card assembly on the chassis. Keep this screw for
later use.
2. Li up and remove the riser card assembly from the chassis.
1
2
Riser Card Assembly
1. You can install up to four PCIE add-in cards to the chassis when they are installed on the
provided riser card assembly.
2. Before installing an add-in card, power o the server and unplug the power cord.
