2U4FH-8L
24 25
English

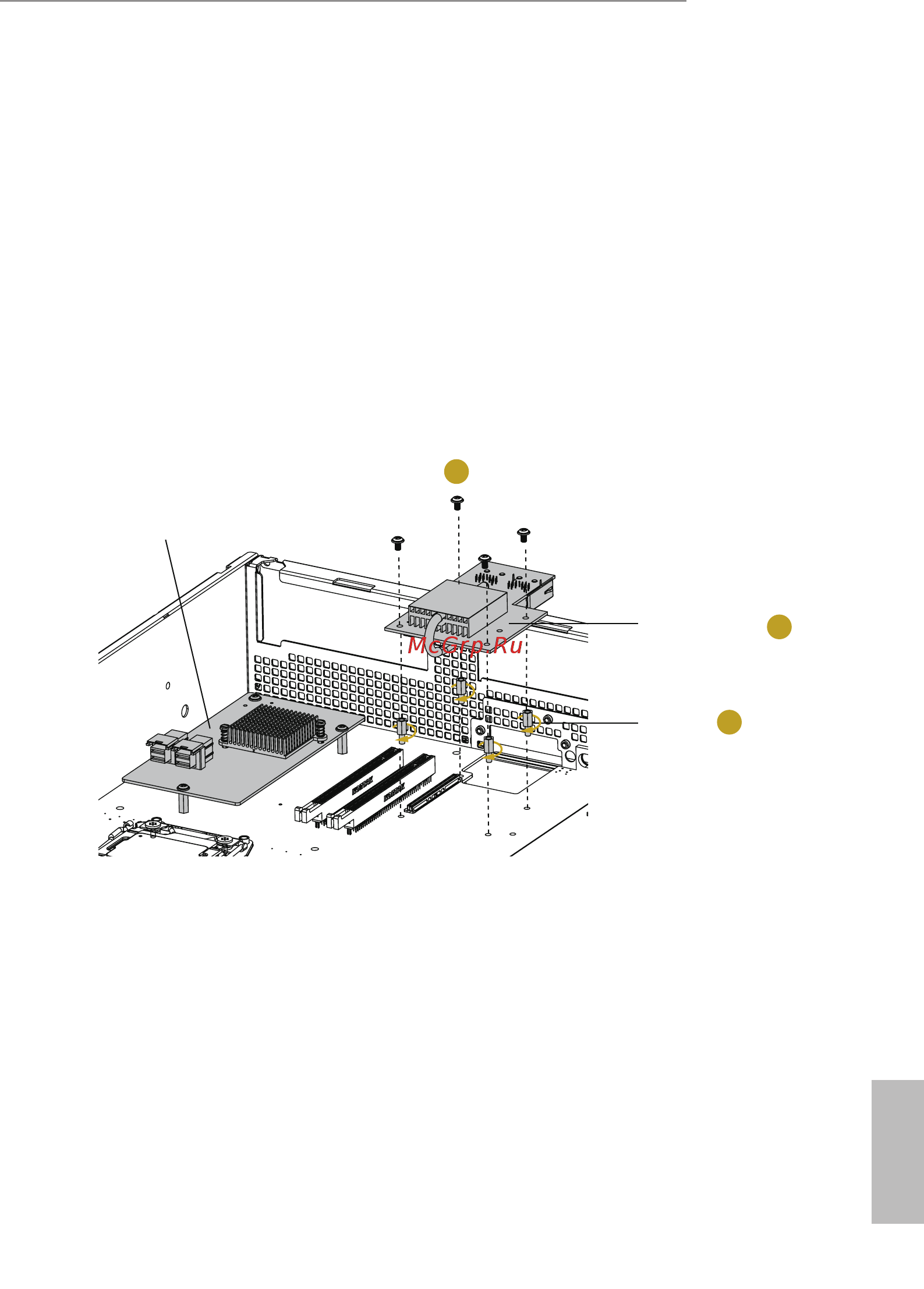

3.5 Mezzanine Card
Installing a Mezzanine Card
You can use an optional Ethernet mezzanine card for additional LAN ports or an
optional storage mezzanine card for additional hard drives. Please be aware that the LAN
mezzanine card must be used in conjunction with a matching I/O module.
1. Install the four standos into the motherboard around the mezzanine card slot. Hand-
tighten the standos.
2. Gently insert the mezzanine card into the mezzanine card slot on the motherboard.
3. Use screws to secure the mezzanine card to the motherboard standos.
1
2
Standoff
LAN
Mezzanine Card
3
Storage
Mezzanine Card
