10 11
English

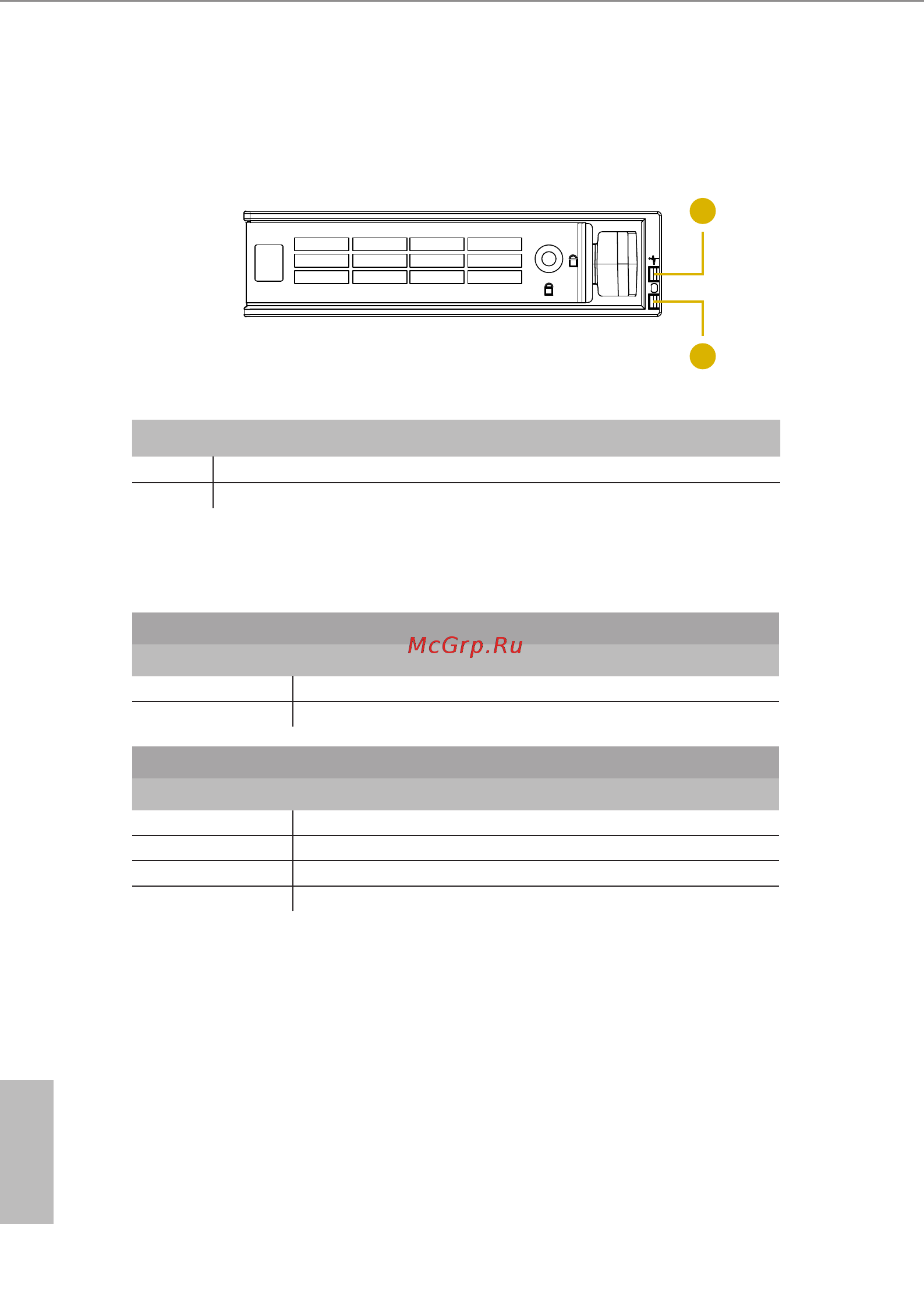

2.7 3.5-inch Hard Drive Tray LEDs
1
2
No. Description
1 HDD Power LED
2 HDD Activity LED
Status LED Denitions
HDD Power LED
Status Description
Blue HDD powered-on
O No power to HDD
HDD Activity LED
Status Description
Solid Green HDD active
Blinking Green HDD accessing or reading
Red HDD failed
O HDD powered-o
