2U4FH-8L
18 19
English

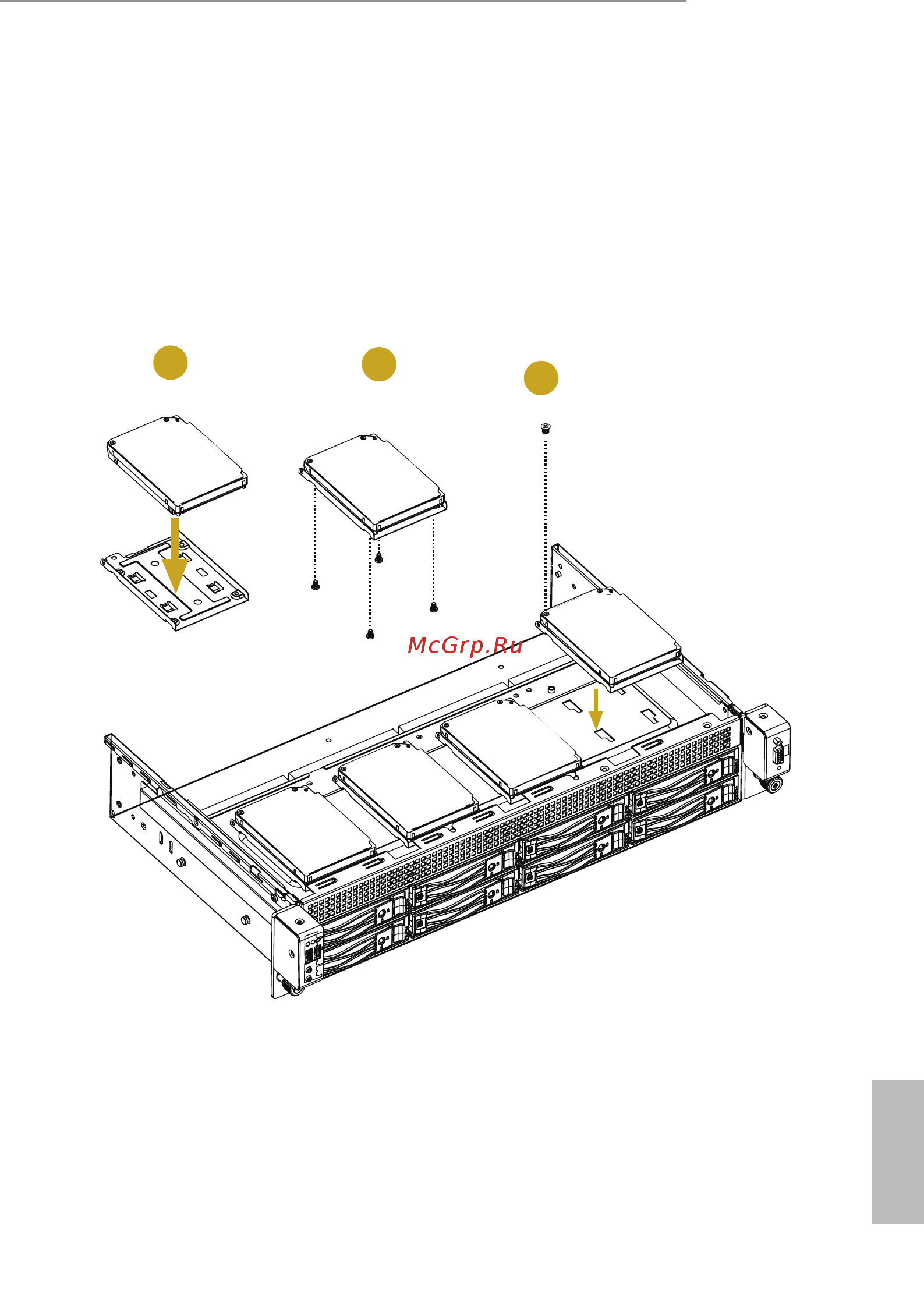

Installing a 2.5” SSD to the SSD Carrier
1. Place a 2.5" PCIE SSD into the carrier with its connector end toward the rear of the carrier
where the mounting hole is located.
Carefully align the mounting holes on the SSD and the carrier.
2. Secure the SSD using four screws.
3. Place the drive carrier back to the chassis with screw holes aligned.
Secure each drive carrier with one screw.
1
2
3
