ESIEN05-04 Switch Box Layout
Part 1 – System Outline 1–99
3
1
4
5
5.5 FFQ25, 35, 50, 60B

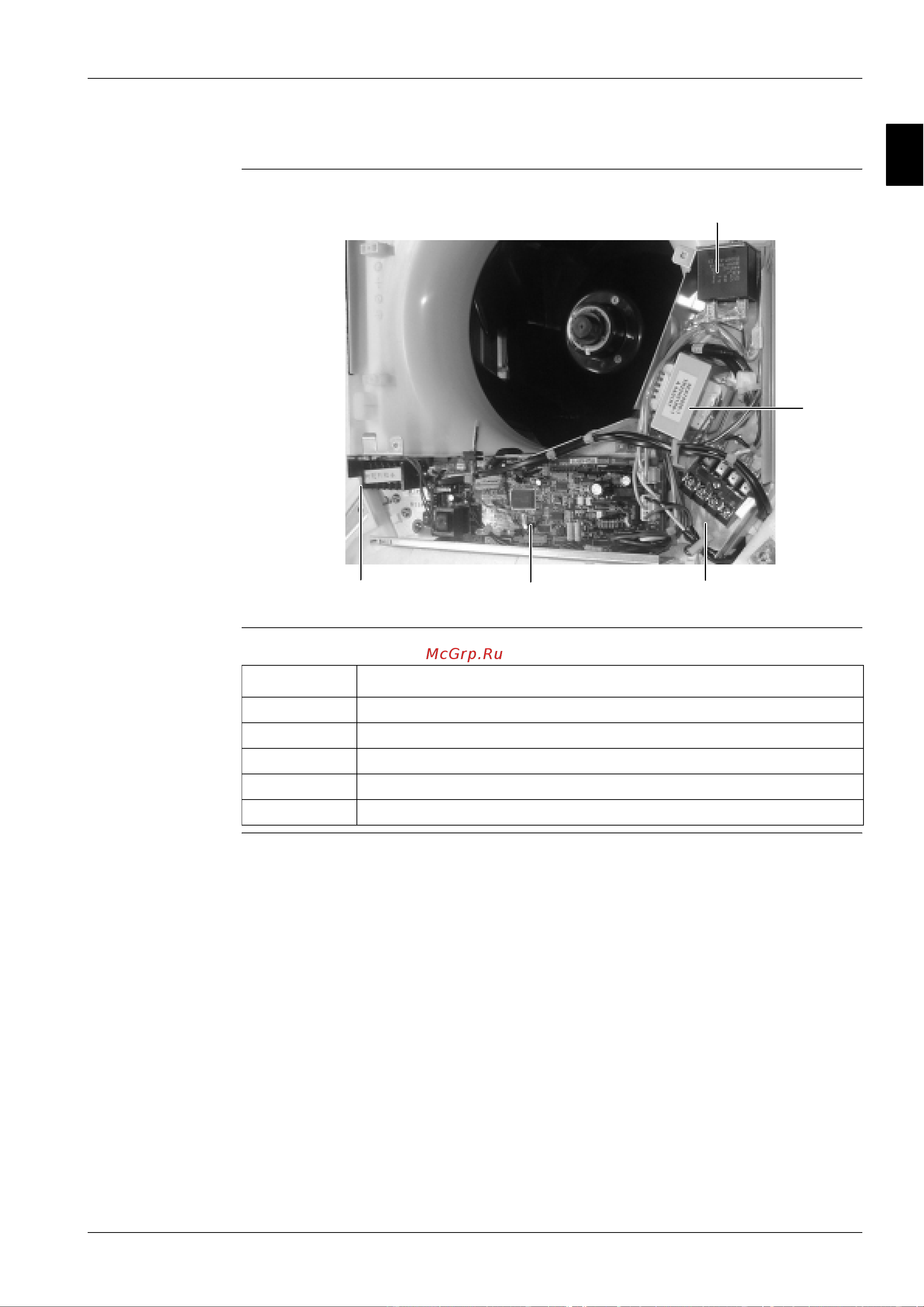

The illustration below shows the switch box layout:
T1R
C1R
X2M
PCB
X1M
Item Description
PCB Printed circuit board
T1R Transformer
C1R Fan motor capacitor
X1M Terminal strip (for remote control P1/P2)
X2M Terminal strip (interconnection wiring)
