ESIEN05-04 Disassembly and Maintenance
Part 5 – Disassembly and Maintenance 5–23
3
5
1
5
1.11.1 Removal of Suction Grille
Warning Be sure to wait 10 minutes or more after turning off all power supplies before disassembling work.
Procedure:
Step Procedure Points

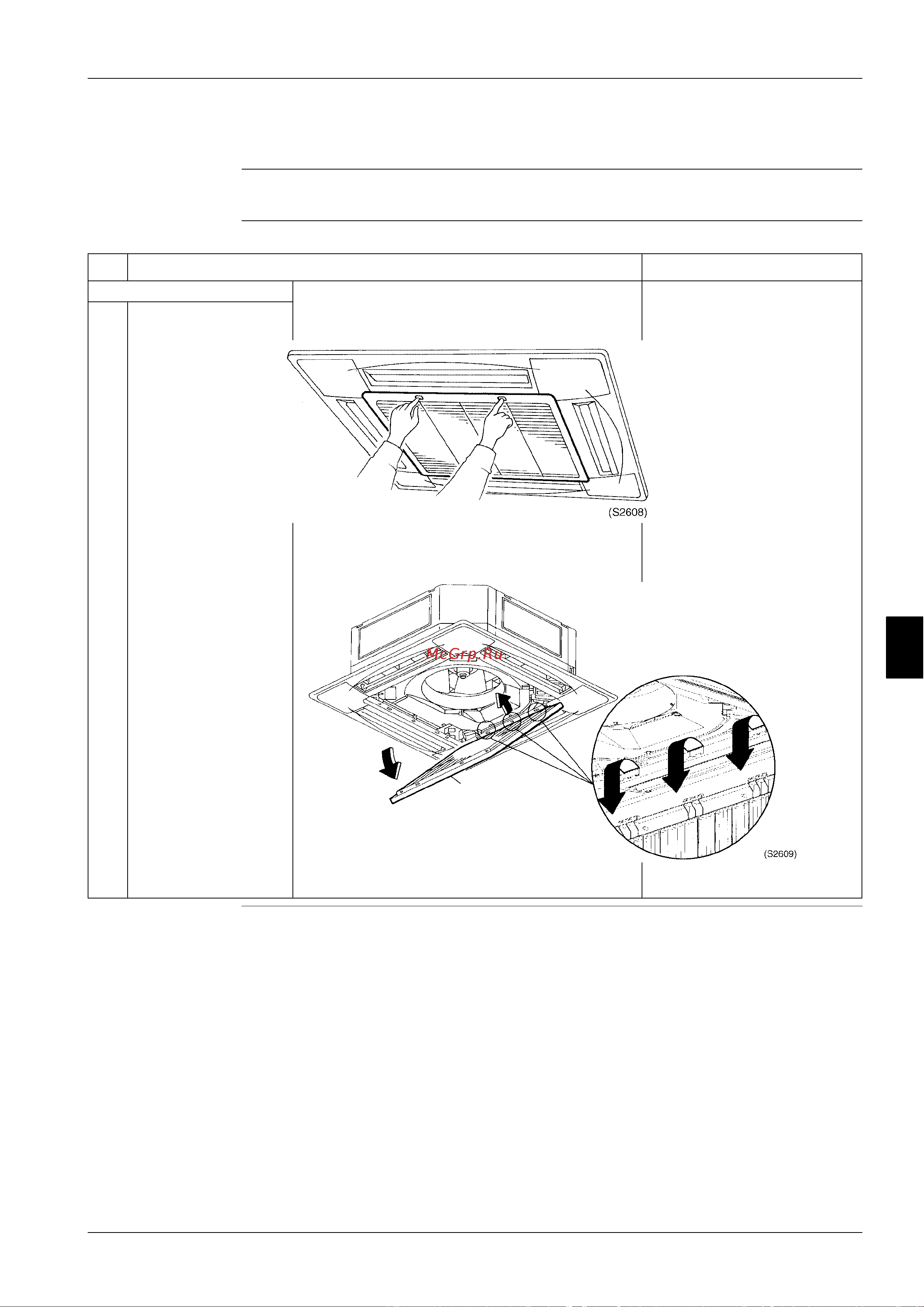

1 Removing the suction grille
cPush the buttons and pull down
1 Push the 2 buttons
simultaneously and pul
the suction grille down
slowly.
Q When closing, push up the
grille slowly.
2 With the suction grille
open at an angle of 45°,
lift it up to remove it.
dOpen te 45°
Q Grille is attached with 3 hooks
Suction grille
