ESIEN05-04 PCB Layout
Part 1 – System Outline 1–113
3
1
4
5
6.6 FBQ35, 50, 60, 71B & FDEQ71B

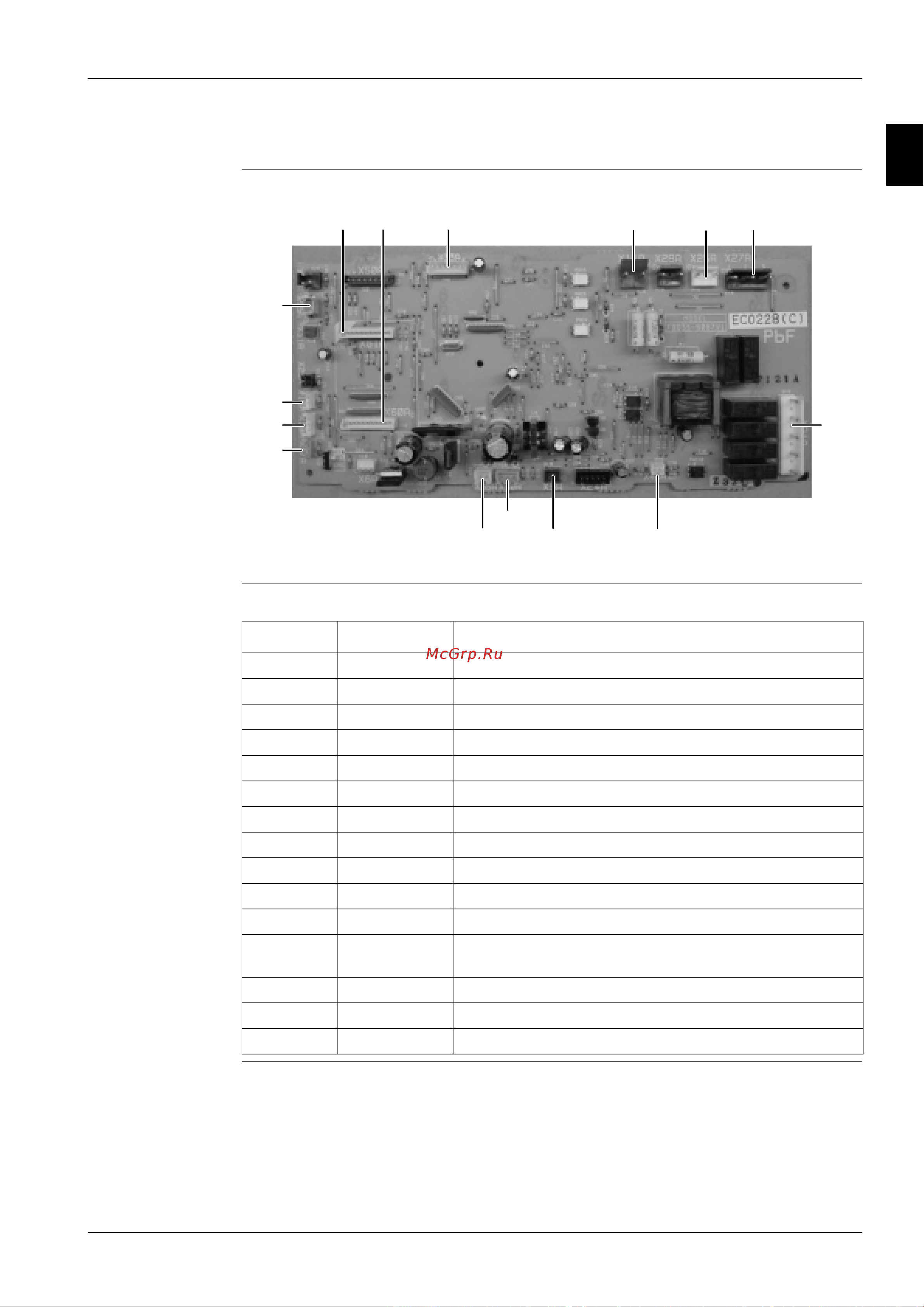

PCB The illustration below shows the PCB connectors.
Connectors The table below describes the PCB connectors.
X61A
X18A
X19A
X15A
X60A X11A X25A X27A
X35A X40A
X10A
X33A
X21A
X17A
X5A
Connector Connected to Description
X5A X1M Terminal strip for P1/P2
X10A T1R Transformer secondary side
X11A T1R Transformer primary side
X15A 33H Float switch
X17A R3T Coil thermistor
X18A R2T Coil thermistor (liquid)
X19A R1T Air thermistor
X21A M1F Fan motor (power supply)
X25A M1P Drain pump motor
X27A X2M Power supply & communication
X33A X1A on KRP1B Connector for wiring adapter KRP1B
X35A X1A on KRP4 Connector to group control adapter power supply (16VDC) for
optional PCB KRP4
X40A – Connector for remote ON/OFF, Forced OFF
X60A X1A on DTA112 Connection for interface adapter
X61A X2A on DTA112 Connection for interface adapter
