Switch Box Layout ESIEN05-04
1–102 Part 1 – System Outline
3
11
4
5
5.8 FHQ35, 50, 60, 71, 100, 125B

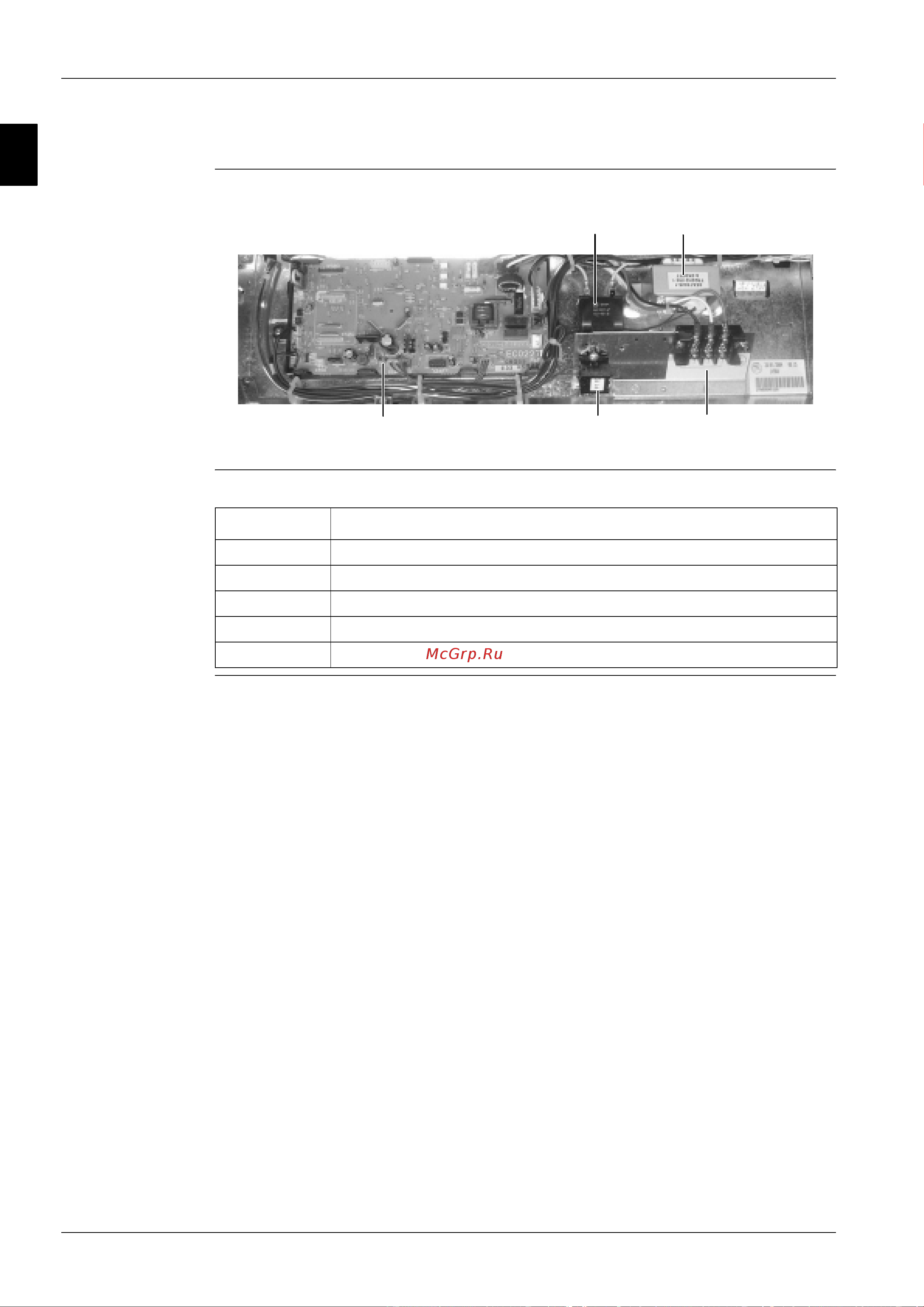

The illustration below shows the switch box layout:
C1R
PCB X1M X2M
T1R
Item Description
PCB Printed circuit board
T1R Transformer
C1R Fan motor capacitor
X1M Terminal strip (for remote control P1/P2)
X2M Terminal strip (interconnection wiring)
