Wiring Diagrams ESIEN05-04
1–72 Part 1 – System Outline
3
11
4
5
4.7 FBQ71B

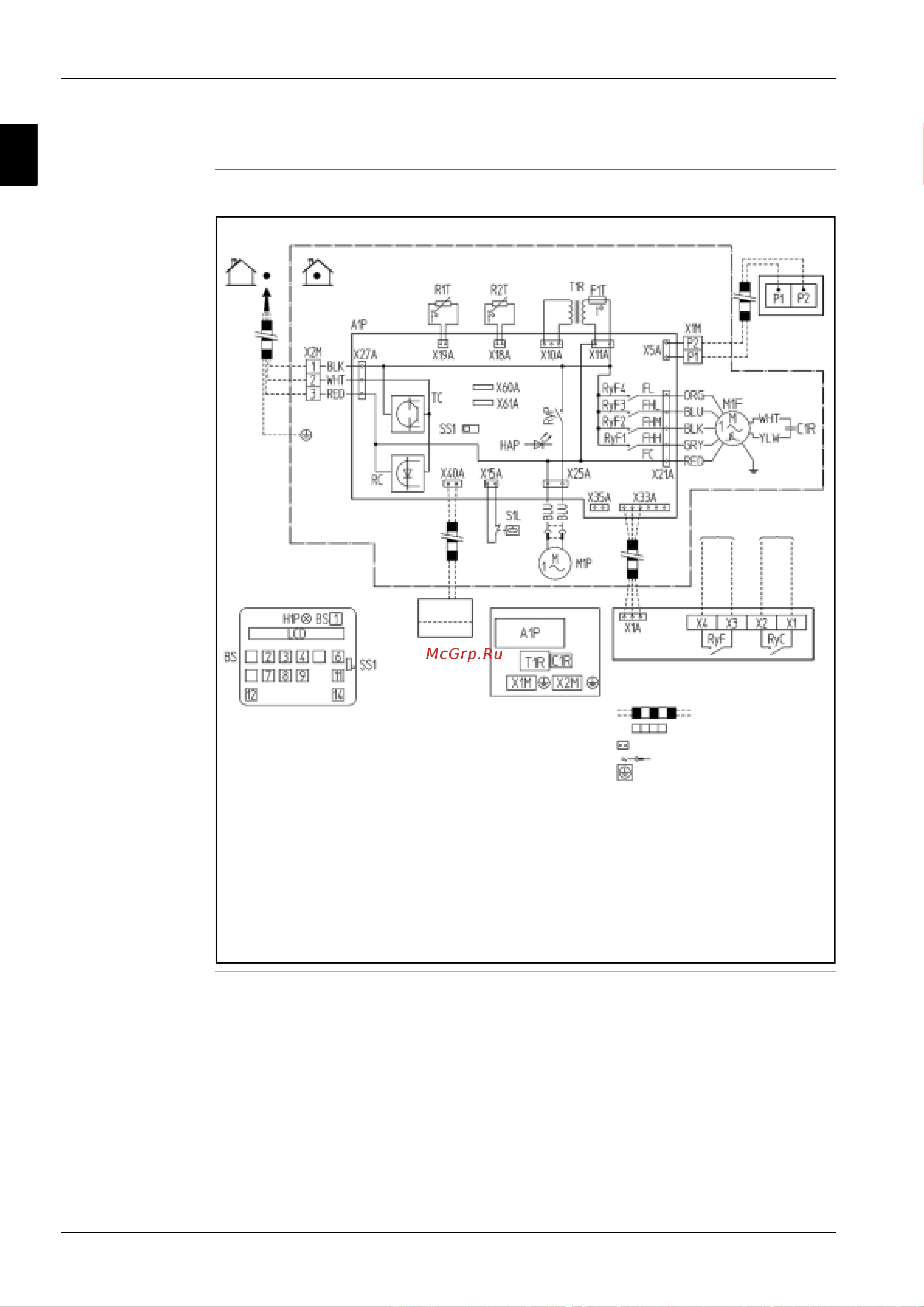

Wiring diagram The illustration below shows the wiring diagram of the unit.
Remote
ON/OFF
Forced OFF
: Field wiring
: Terminal
Colors:
BLK : Black
BLU : Blue
GRY : Gray
ORG : Orange
RED : Red
WHT : White
outdoor
indoor
Terminals for
Operation Indicator
Fan
Operation
Compressor
Operation
adapter for wiring
Wired remote
control
Notes:
1. When using the central remote control, see manual for connection to
the unit.
2. The remote control model varies according to the combination
system. See technical materials and catalogues, etc. before
connecting.
Switch box
71 CLASS
: Connector
: Wire lamp
: Protective earth (screw)
Details of Wired
remote control
(Optional accessory)
