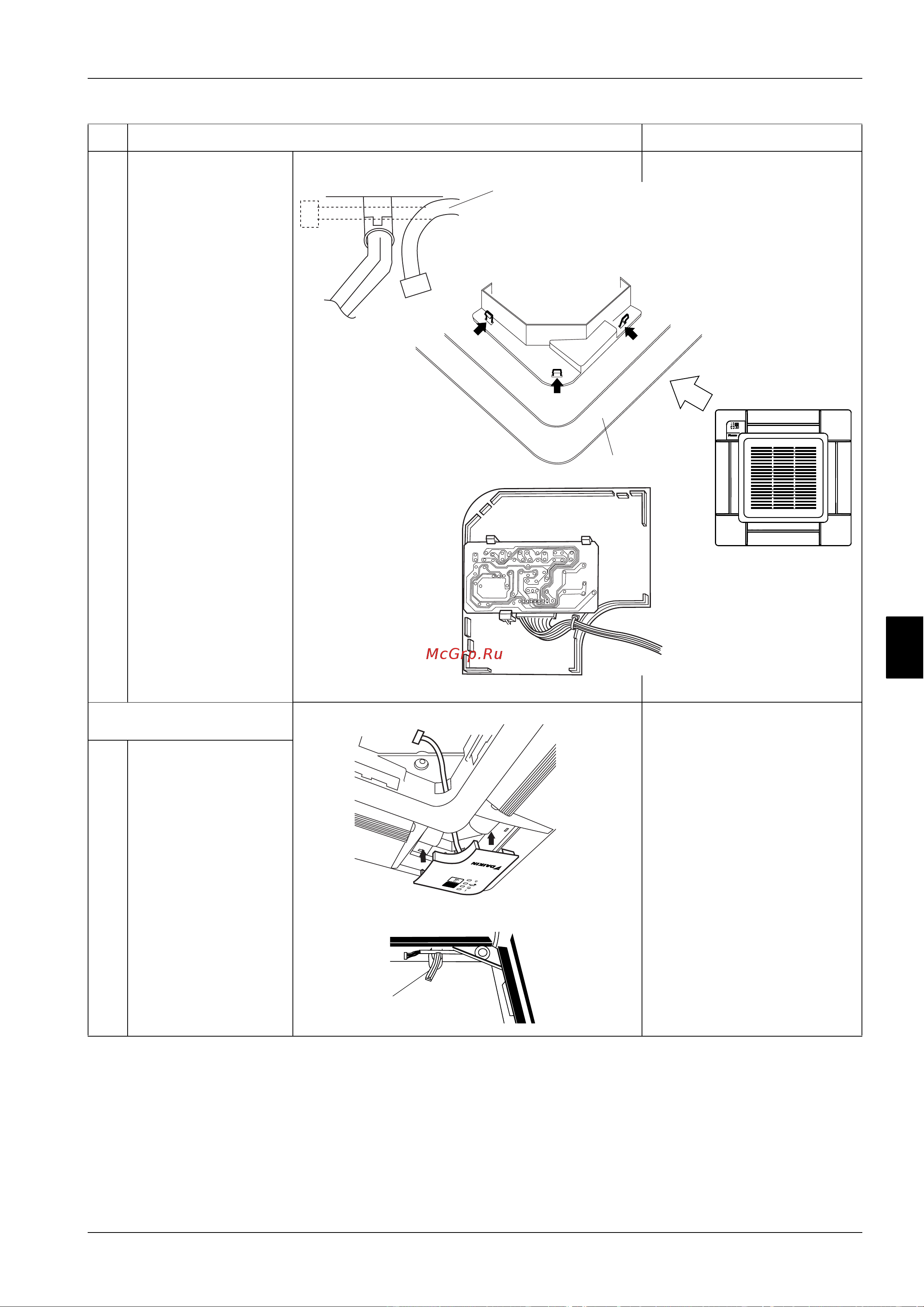

ESIEN05-04 Disassembly and Maintenance
Part 5 – Disassembly and Maintenance 5–77
3
5
1
5
4 Removing the decoration
panel
Q Refer to "Removal of
Decoration Panel"
5 Pull out the lead wire of
receiver section from
wiring groove.
6 Push three claws on the
rear side of panel to
remove the corner cover
(receiver section).
2 Installing the receiver
section
1 Pass through the lead
wire of the receiver
section, and insert the
corner cover.
2 Put the wire in the wiring
groove on the hooking
piece securely.
Step Procedure Points
Decoration panel
Push three claws to remove
the corner cover.
Lead wire of receiver section
(S2697)
(S2698)
(S2699)
(S2700)
Hooking piece
(S2701)
