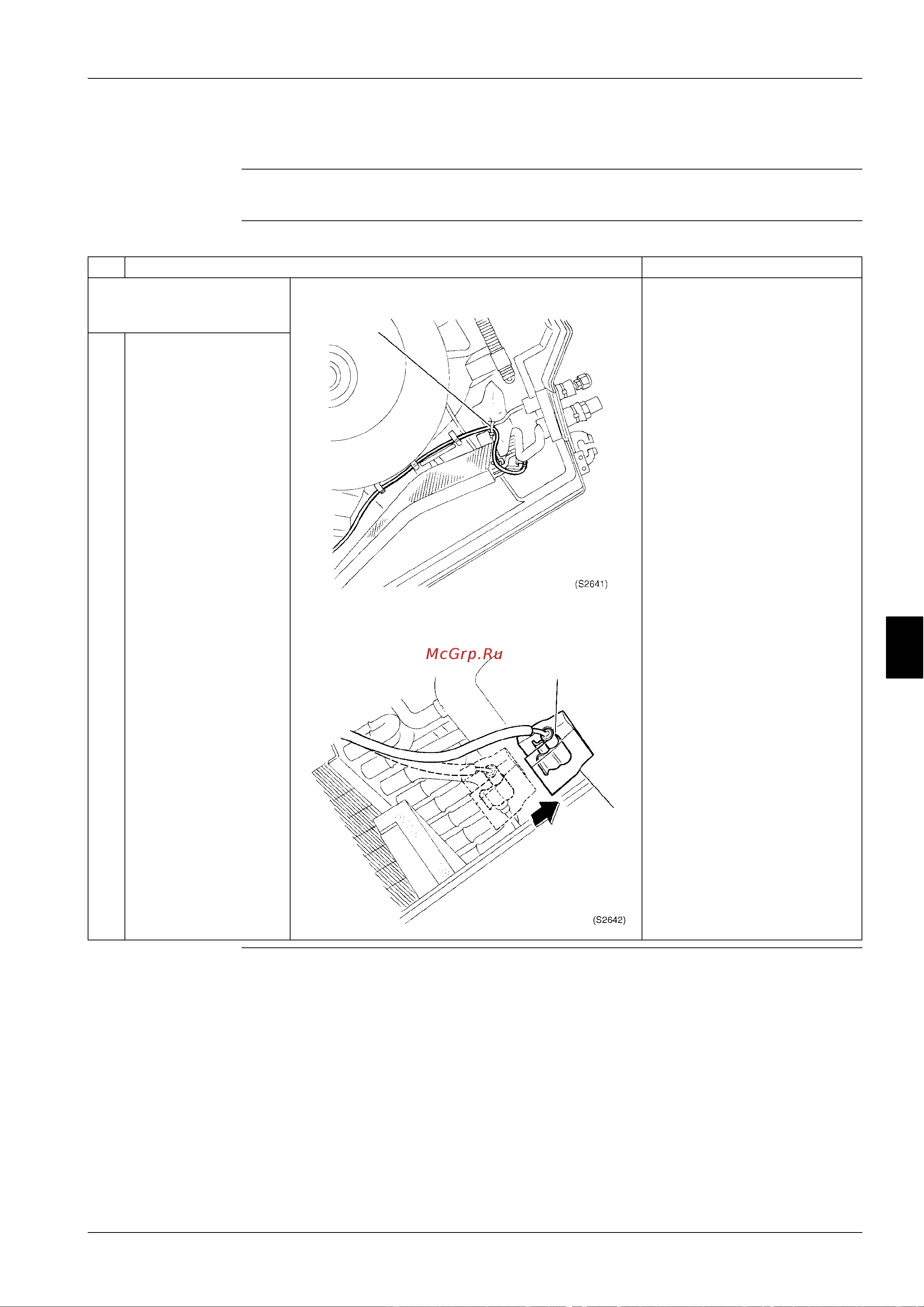

1.11.11 Removal of Heat Exchanger Temperature Thermistor
Warning Be sure to wait 10 minutes or more after turning off all power supplies before disassembling work.
Procedure:
Step
Procedure Points
Q Remove the drain pan
according to the procedure
for removing the drain pan.
1 Cut the clamp material.
2 Draw the heat exchange
temperature thermistor
together with the
insulation material out in
the direction shown by
the arrow.
Clamp
material
Heat exchanger
temperature thermistor
Insulation
material
