PCB Layout ESIEN05-04
1–118 Part 1 – System Outline
3
11
4
5
6.11 FUQ71, 100, 125B

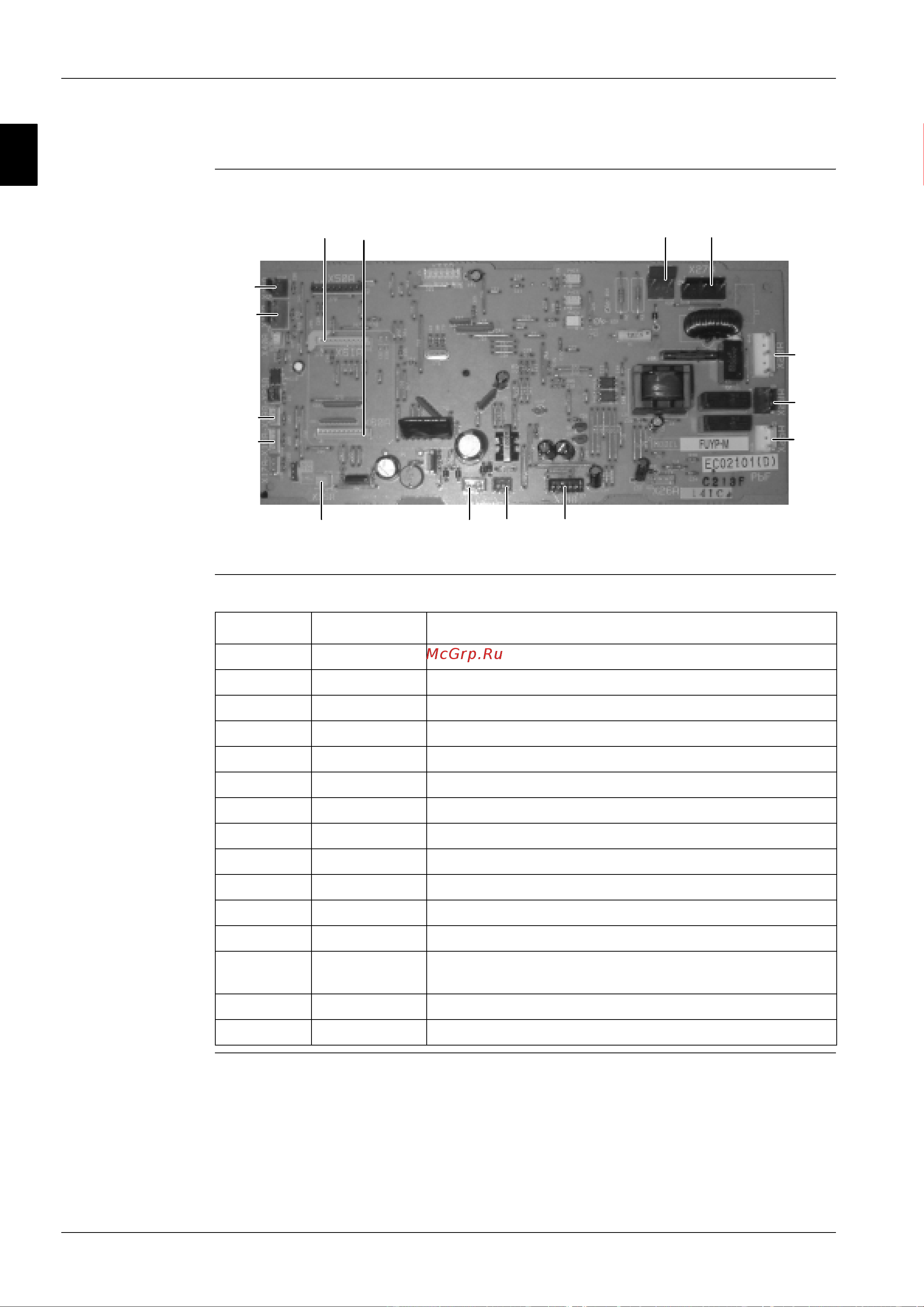

PCB The illustration below shows the PCB connectors.
Connectors The table below describes the PCB connectors.
X14A
X60A
X11A X27A
X20A
X29A
X25A
X61A
X15A
X18A
X19A
X35A X10A X5A X24A
Connector Connected to Description
X5A X1M Terminal strip for P1/P2
X10A T1R Transformer secondary side
X11A T1R Transformer primary side
X14A S1Q Limit switch swing flap
X15A S1L Float switch
X18A R2T Coil thermistor (liquid)
X19A R1T Air thermistor
X20A M1F Fan motor (power supply)
X24A X2A on A3P X24A is connected when the infrared remote control is used.
X25A M1P Drain pump motor
X27A X2M Power supply & communication
X29A M1S Swing flap motor
X35A X1A on KRP4 Connector to group control adapter power supply (16 VDC) for
optional PCB KRP4
X60A X1A on DTA112 Connector for interface adapter
X61A X2A on DTA112 Connector for interface adapter
