Daikin FCQ71B7V3B [352/381] Removal of air filter and front panel
![Daikin FCQ35B7V1 [352/381] Removal of air filter and front panel](/views2/1697514/page352/bg160.png)
Disassembly and Maintenance ESIEN05-04
5–112 Part 5 – Disassembly and Maintenance
3
1
55

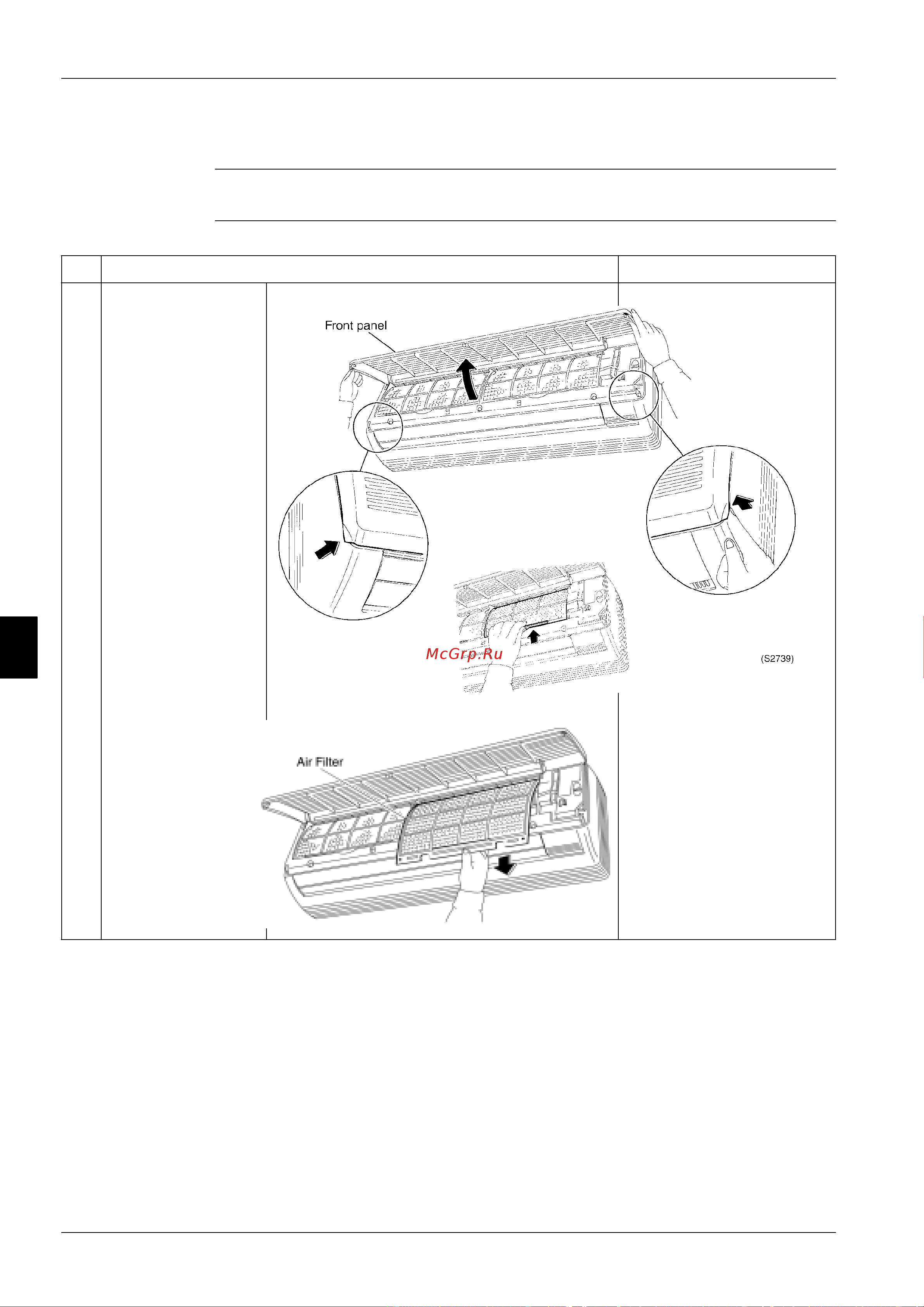

1.15.1 Removal of Air Filter and Front Panel
Warning Be sure to wait 10 minutes or more after turning off all power supplies before disassembling work.
Procedure:
Step Procedure Points
1 Put your fingers on
protrusions at left and
right side of the unit to
open the front panel.
2 To remove the air filter,
push up the tab and pull
down the filter.
Q The air filter is free from the
side of left or right.
Q It is easy to install if inserting
along the guide.
