Wiring Diagrams ESIEN05-04
1–62 Part 1 – System Outline
3
11
4
5
4.2 FCQ35, 50, 60B

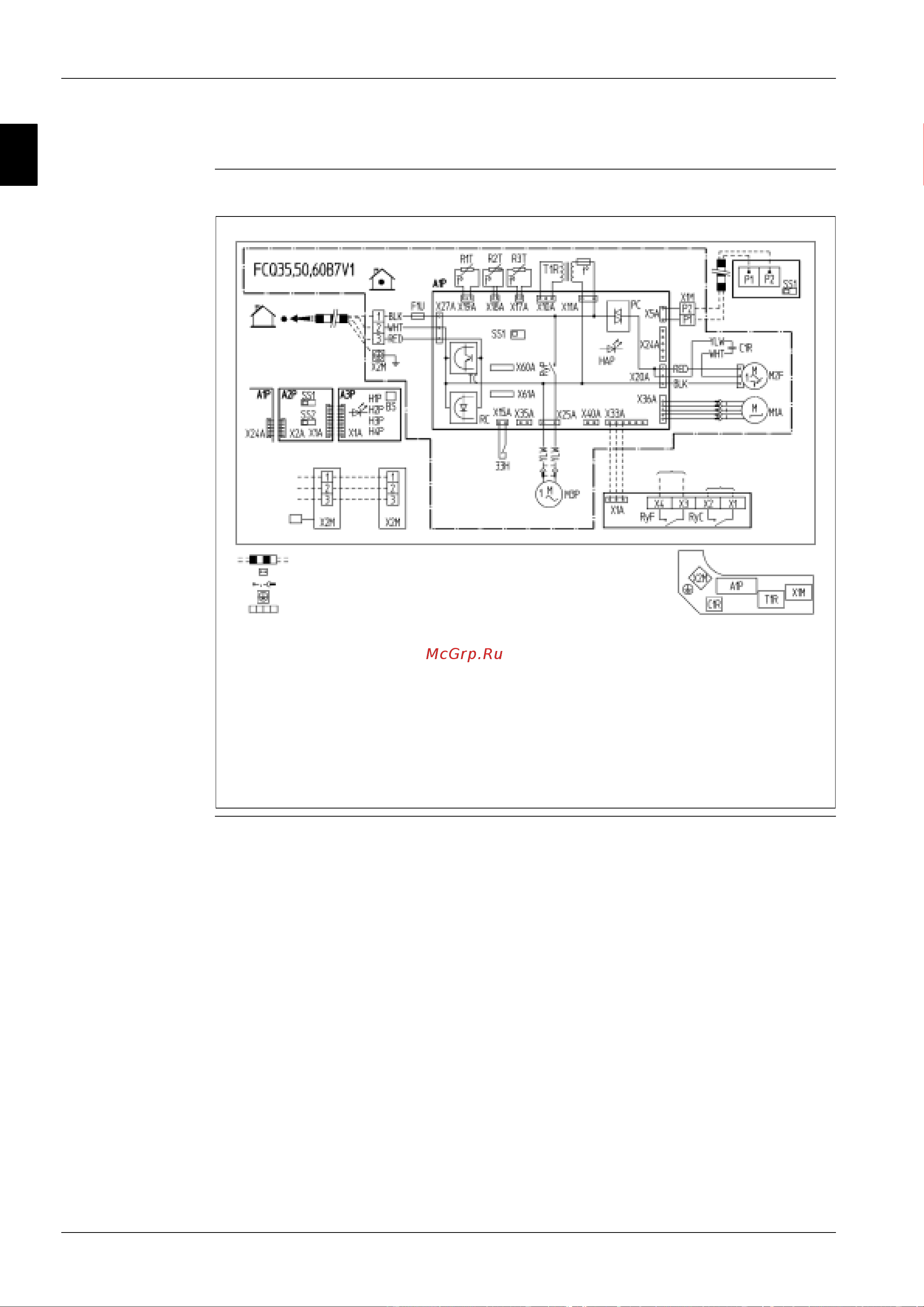

Wiring diagram The illustration below shows the wiring diagram of the unit.
: Field wiring
: Connector
: Wire lamp
: Protective earth (screw)
: Terminal
Colors:
BLK : Black
RED : Red
WHT : White
YLW : Yellow
outdoor
indoor
Note 3
Receiver / Display unit
Simultaneous Operation System
Outdoor
unit
remote control
(Master)
(Slave)
Terminals for Operation
Indicator
Fan Operation
Compressor Operation
adapter for
wiring
Wired remote
control
Norm.emerg.
Switch box
Notes:
1. Use copper conductors only.
2. When using the central remote control, see manual for connection to
the unit.
3. X24A is connected when the infrared remote control kit is used.
4. The remote control model varies according to the combination
system. See technical data and catalogs before connecting.
