Disassembly and Maintenance ESIEN05-04
5–38 Part 5 – Disassembly and Maintenance
3
1
55
1.11.10 Removal of Drain Pan, Drain Pump, Float Switch
Warning Be sure to wait 10 minutes or more after turning off all power supplies before disassembling work.
Procedure:
Step
Procedure Points

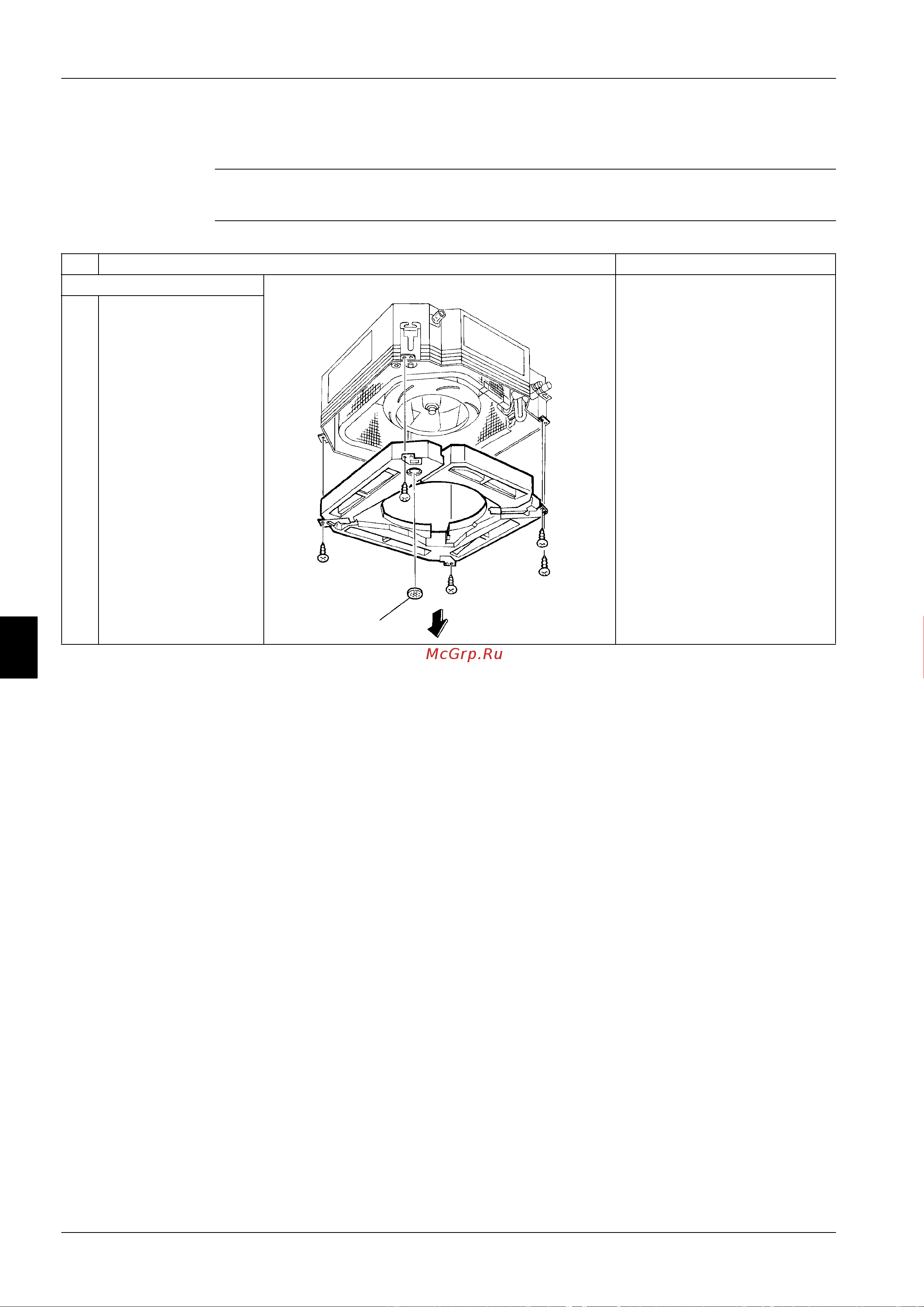

1 Removing the drain pan
1 Remove the drain socket
cap to discharge water.
2 Remove the 5 mounting
screws to pull the drain
pan out downward.
Drain socket cap
