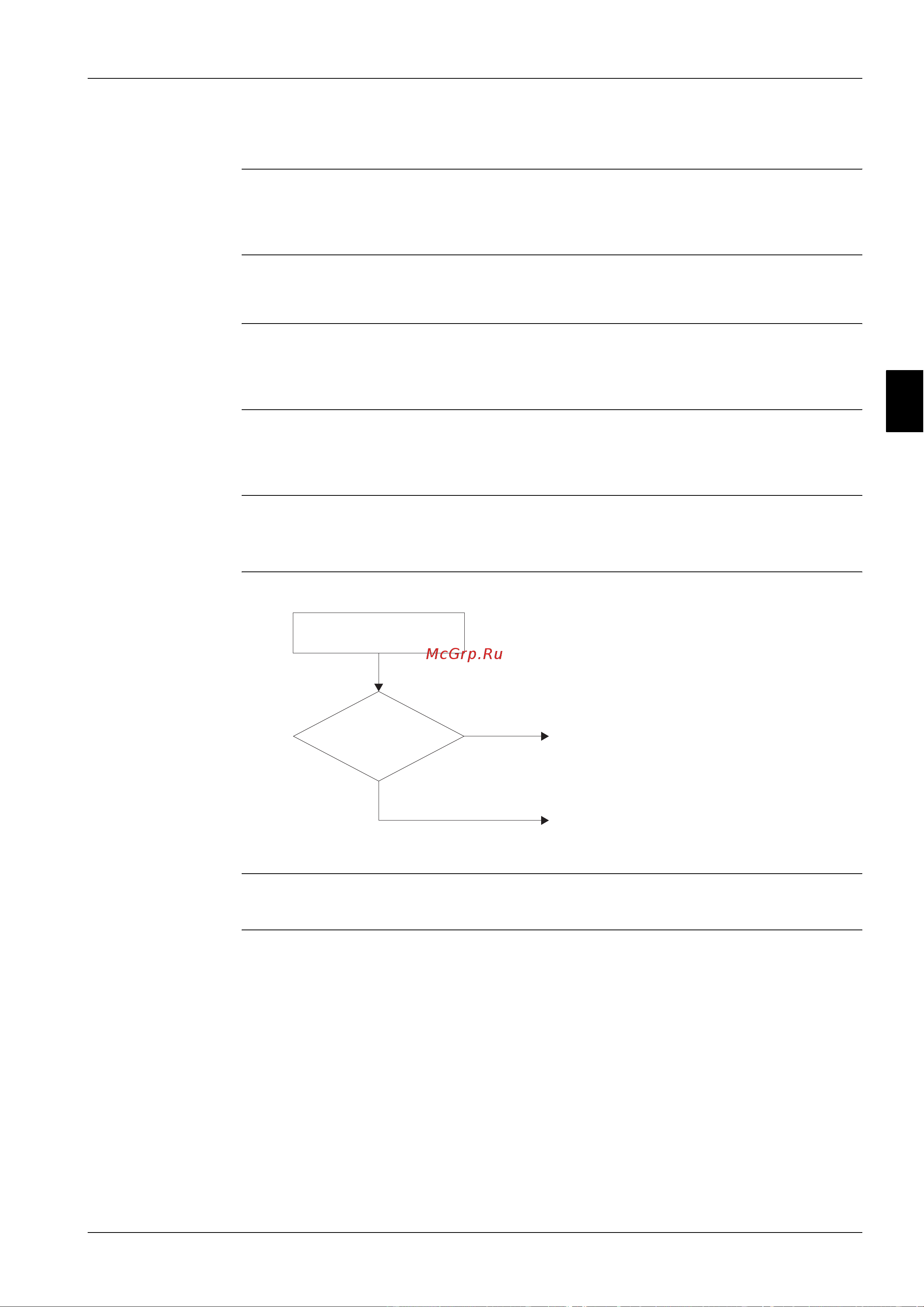

ESIEN05-04 Error Codes
Part 3 – Troubleshooting 3–43
4
5
1
3
2.9 Malfunctioning of Moisture Sensor System (
CC
)
Remote
controller
display
CC
Applicable
models
FCQ-D
Method of
malfunction
detection
Even if a malfunction occurs, operation still continues.
Malfunction is detected according to the moisture (output voltage) detected by the moisture
sensor.
Malfunction
decision
conditions
When the moisture sensor is disconnected or short-circuited
Supposed
causes
Q Faulty sensor
Q Disconnection
Troubleshooting
Caution Be sure to turn off power switch before connect or disconnect connector, or parts damage may be
occurred.
Is the code
"CC" displayed on the
remote controller?
Turn the power supply
off once and back on.
Yes
Replace the moisture sensor PC
board assembly (A4P).
Problem could be caused by external
factor (noise, etc.) other than malfunction.
No
