ESIEN05-04 Disassembly and Maintenance
Part 5 – Disassembly and Maintenance 5–125
3
5
1
5

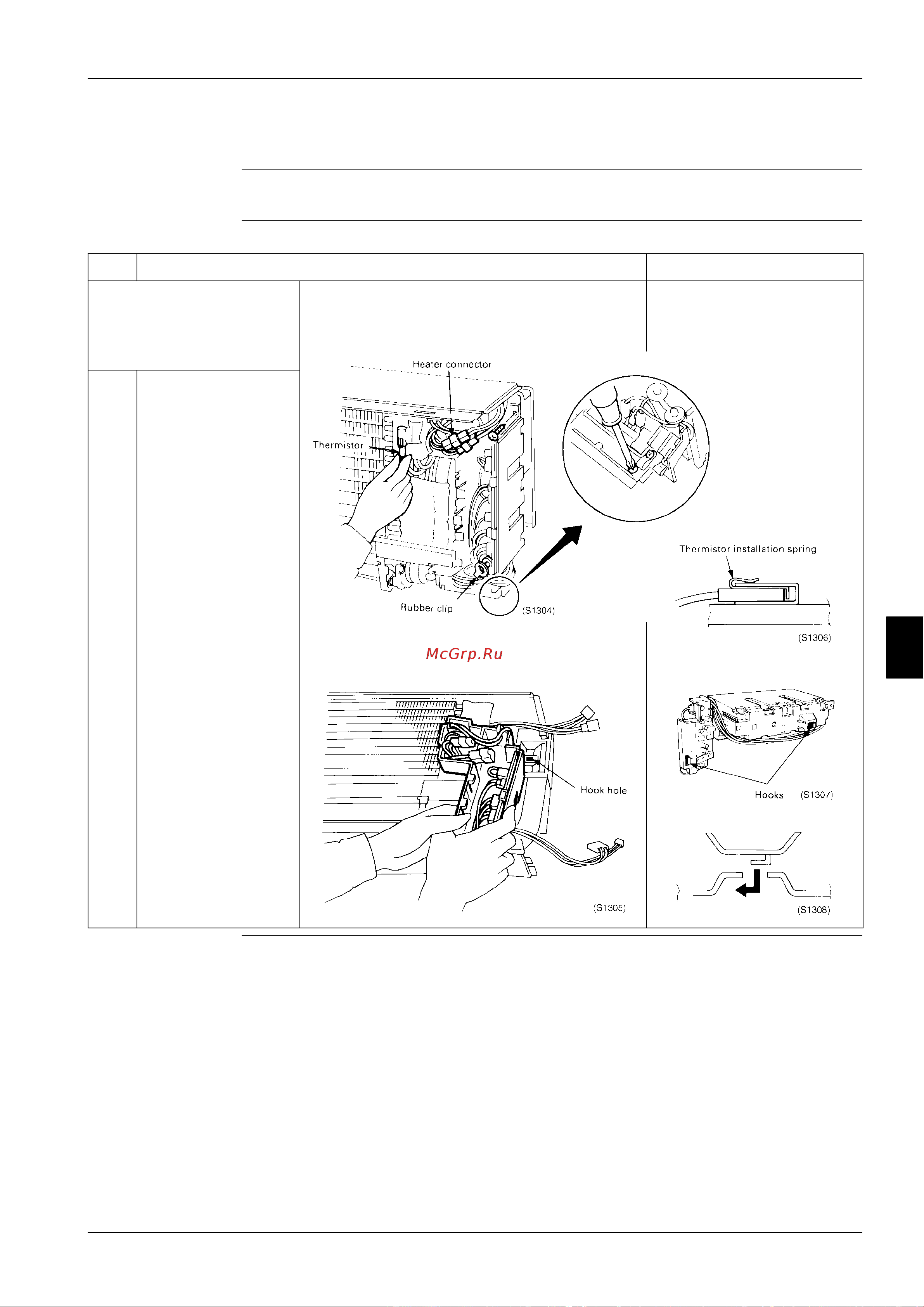

1.16.3 Removal of Electrical Parts Box
Warning Be sure to wait 10 minutes or more after turning off all power supplies before disassembling work.
Procedure:
Step Procedure Points
Q Remove the left and right side
panels, operation display
cover and front grille
according to the procedures
for their removal.
The left and right side panels
have to be taken off in order to
remove the front grille.
1 Remove the
(1) thermistor,
(2) heater connector
and
(3) rubber clip
connected to the PC
board.
2 Remove the 2 screws
fastening the electrical
parts box to the units.
3 Lift the electrical parts
box and remove by
moving toward the right.
