ED34-645B REFNET Pipe System
Installation of Outdoor Units 639
15
3.2 Max. Refrigerant Piping Length

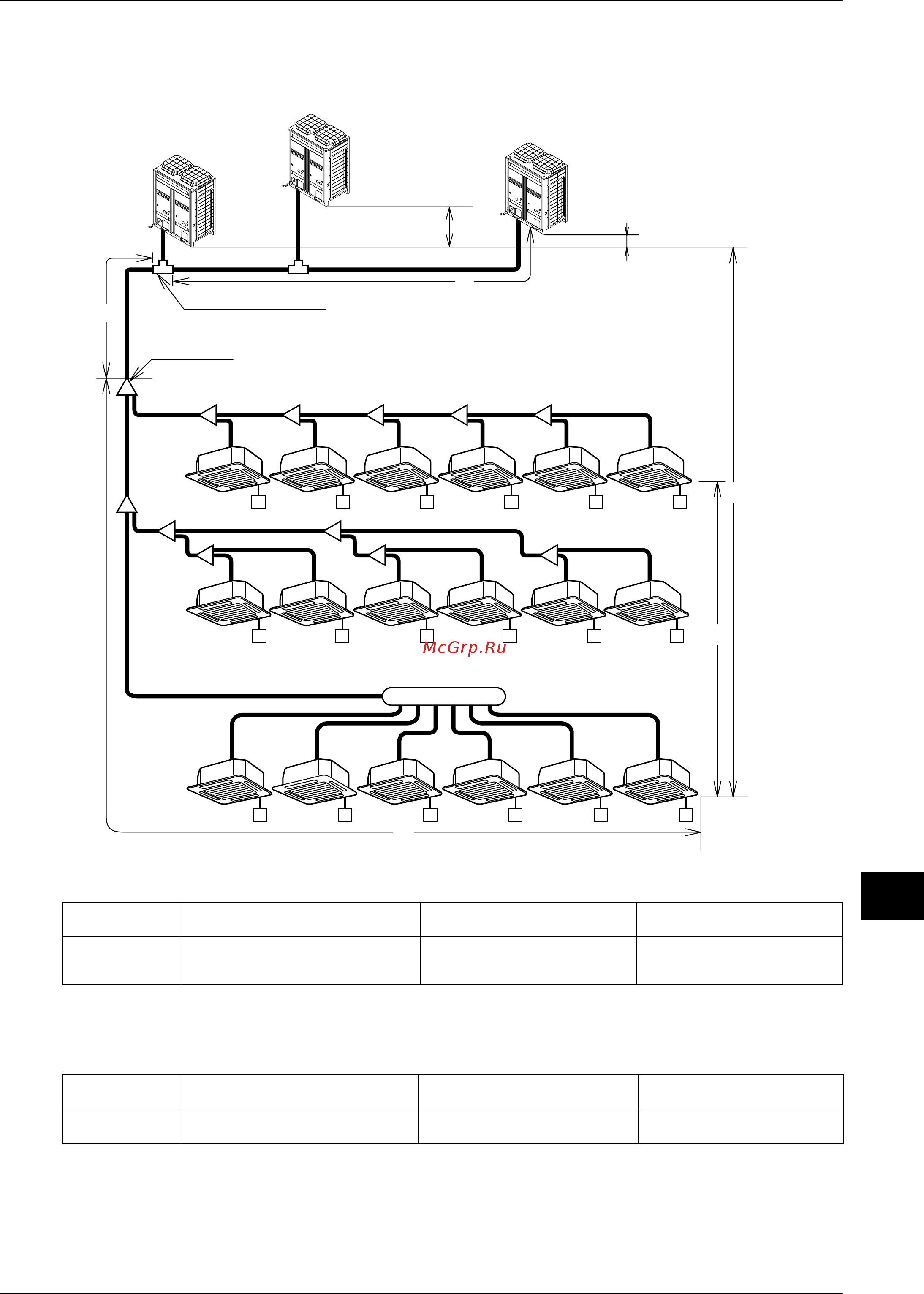

Max. Refrigerant Piping Length (Actual Piping Length)
Total Extension length
Total Piping length from outdoor unit to all indoor units ≤ 1000m
Max. Level Difference
Notes:
1. Be sure to use a REFNET Piping Kit for the branch of piping.
2. A Branch Part can not be installed to the down flow of the REFNET Header.
3. If the outdoor unit is located under the indoor unit, the level difference is a maximum of 40m in case of RXYQ5P.
4. Available on request if the outdoor unit is above.
First outdoor Branch ~ Outdoor units
[a]
First Branch ~ Indoor Units
[c]
Outdoor Units ~ Indoor Units
[b+c]
Max. Refrigerant
Piping Length (m)
10m or less than 10m 40m or less than 40m
(Refer to Page 657, 658 Note 2 in
case of up to 90m)
165m or less than 165m
Outdoor Units ~ Indoor Units
[H
1
]
Between the Indoor Units
[H
2
]
Between the Outdoor Units
[H
3
, H
4
]
Max. Level
Difference (m)
50m or less than 50m (Note 3)
90m or less than 90m (Note 4)
15m or less than 15m 5m or less than 5m
H1
H3
H4
H2
c
b
a
(V1923)
Outdoor Unit 1
Indoor Unit
Indoor Unit
Indoor Unit
First Outdoor Branch
First Branch
Outdoor Unit 2
Outdoor Unit 3
