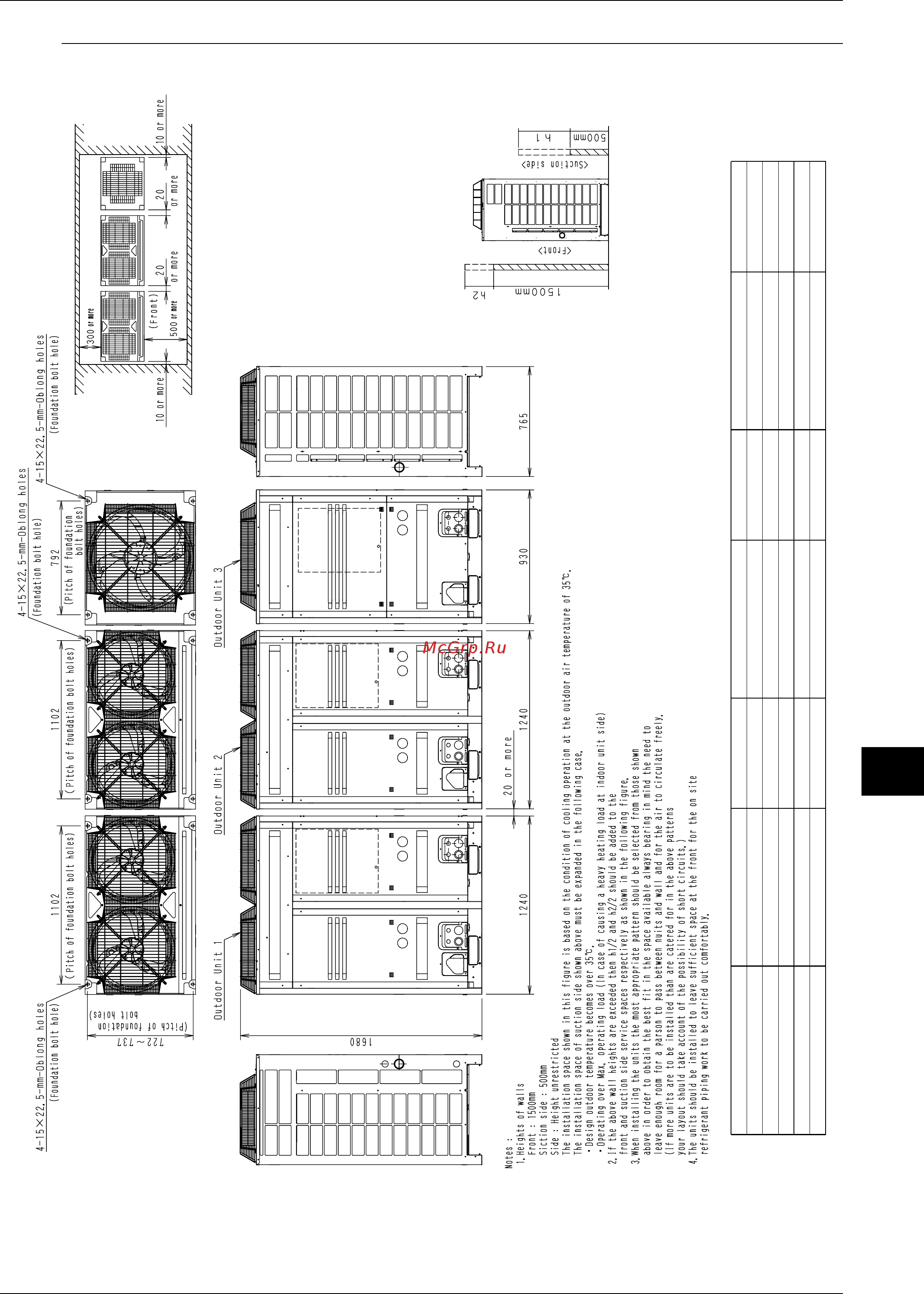

ED34-645B Dimensions
RXYQ-P 427
13
RXYQ38P, RXYQ40P, RXYQ42P, RXYQ44P, RXYQ46P
Model Name Outdoor Unit 1 Drawing No. Outdoor Unit 2 Drawing No.
RXYQ38PY1
RXYQ40PY1
RXYQ42PY1
RXYQ44PY1
RXYQ46PY1
RXYQ18PY1
RXYQ16PY1
RXYQ18PY1
RXYQ18PY1
RXYQ18PY1
3D051450A
3D051450A
3D051450A
3D051450A
3D051450A
RXYQ12PY1
RXYQ16PY1
RXYQ16PY1
RXYQ18PY1
RXYQ18PY1
3D051450A
3D051450A
3D051450A
3D051450A
3D051450A
Outdoor Unit 3 Drawing No.
RXYQ8PY1
RXYQ8PY1
RXYQ10PY1
RXYQ8PY1
RXYQ8PY1
3F051449A
3F051449A
3F051449A
3F051449A
3F051449A
C : 3D052932A
Unit (mm)
