ED34-645B Control Devices
Control 721
16

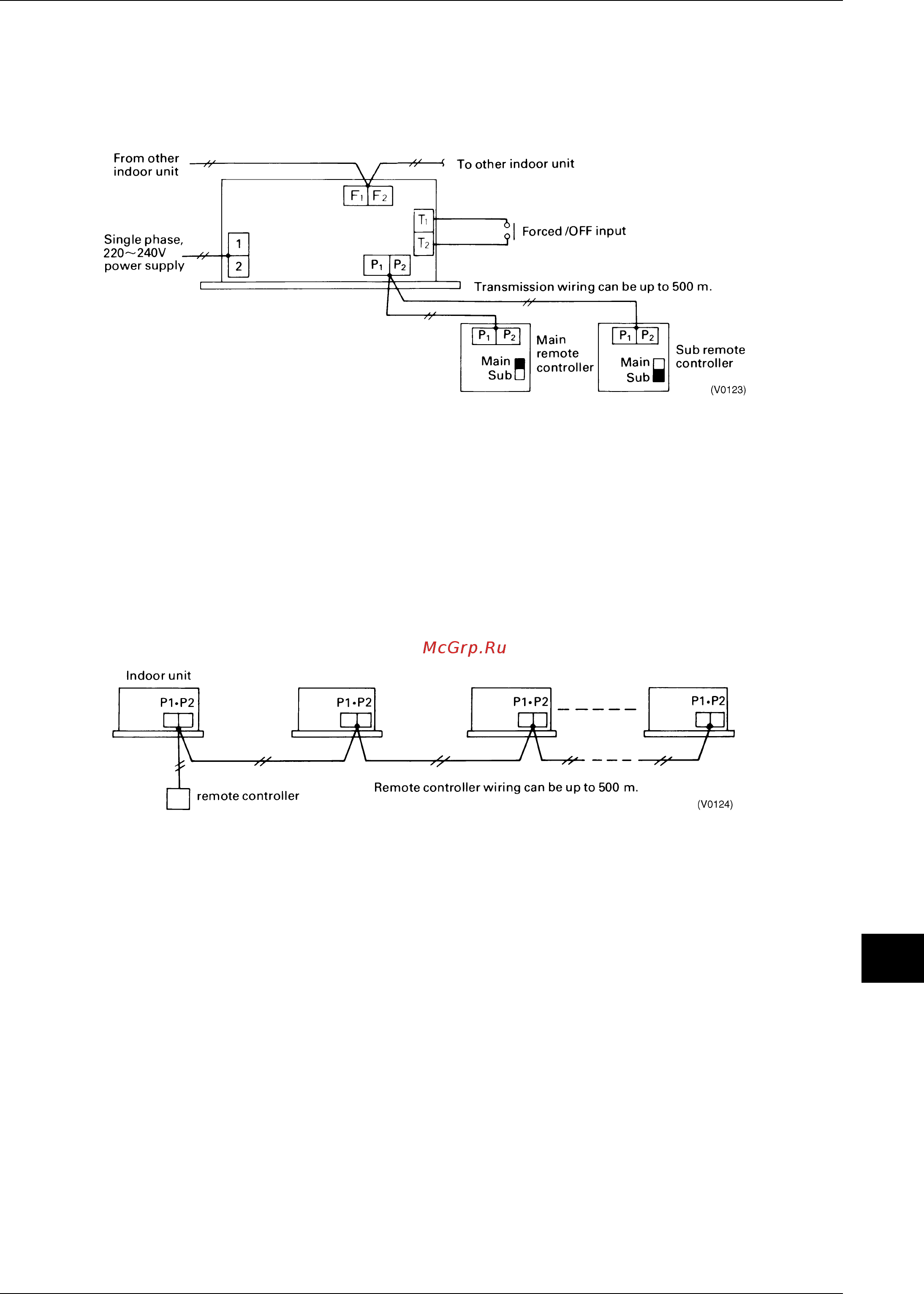

4.1.3 2 Remote Controllers
1 indoor unit is controlled by 2 remote controllers from 2 separate locations
This is a convenient system for when you want to operate an indoor unit in the reception room from the office, for
example, or finely operate an indoor unit from a local or remote location. (The same applies to other types of indoor
units.)
Operation control mode of the indoor unit is last command priority.
Remove the front panel of the remote controller and set the main/sub changeover switch on the PC board to
“main” for the main remote controller, and to “sub” for the sub remote controller.
Note:
The remote controller is equipped with a thermostat sensor. If the main and sub remote controllers are mounted in
separate rooms, set the main remote controller so that the thermostat sensor in the remote controller is not used.
4.1.4 Group Control
Simultaneous control of up to 16 units with a single remote controller
This is a convenient system for when you want to simultaneously control several indoor units with the same settings
for air conditioning a wide, single floor.
Wiring for remote controller group control has no polarity, P
1
and P
2
can be switched.
All indoor units within the group have the same setting, and each indoor unit is controlled individually by its own
built-in thermostat.
Because automatic address is used, address does not have to be set by remote controller for group control.
Note:
Only remote controller wiring is shown.
For Connection unit series
Although group control in Connection unit series is possible, however, group control with other series is
impossible.
4.1.5 Remote Control
Enables forced OFF or ON/OFF control of indoor unit by input from outside.
Indoor units can be started or stopped by building control or key control system.
Notes
· FXUQ-M(A) : Optional Accessory (Remote ON/OFF, forced OFF <EKRORO> is required.)
