Daikin RXYQ28PY1 [261/487] Connecting the refrigerant piping
![Daikin RXYQ24PY1 [261/487] Connecting the refrigerant piping](/views2/1711913/page261/bg105.png)

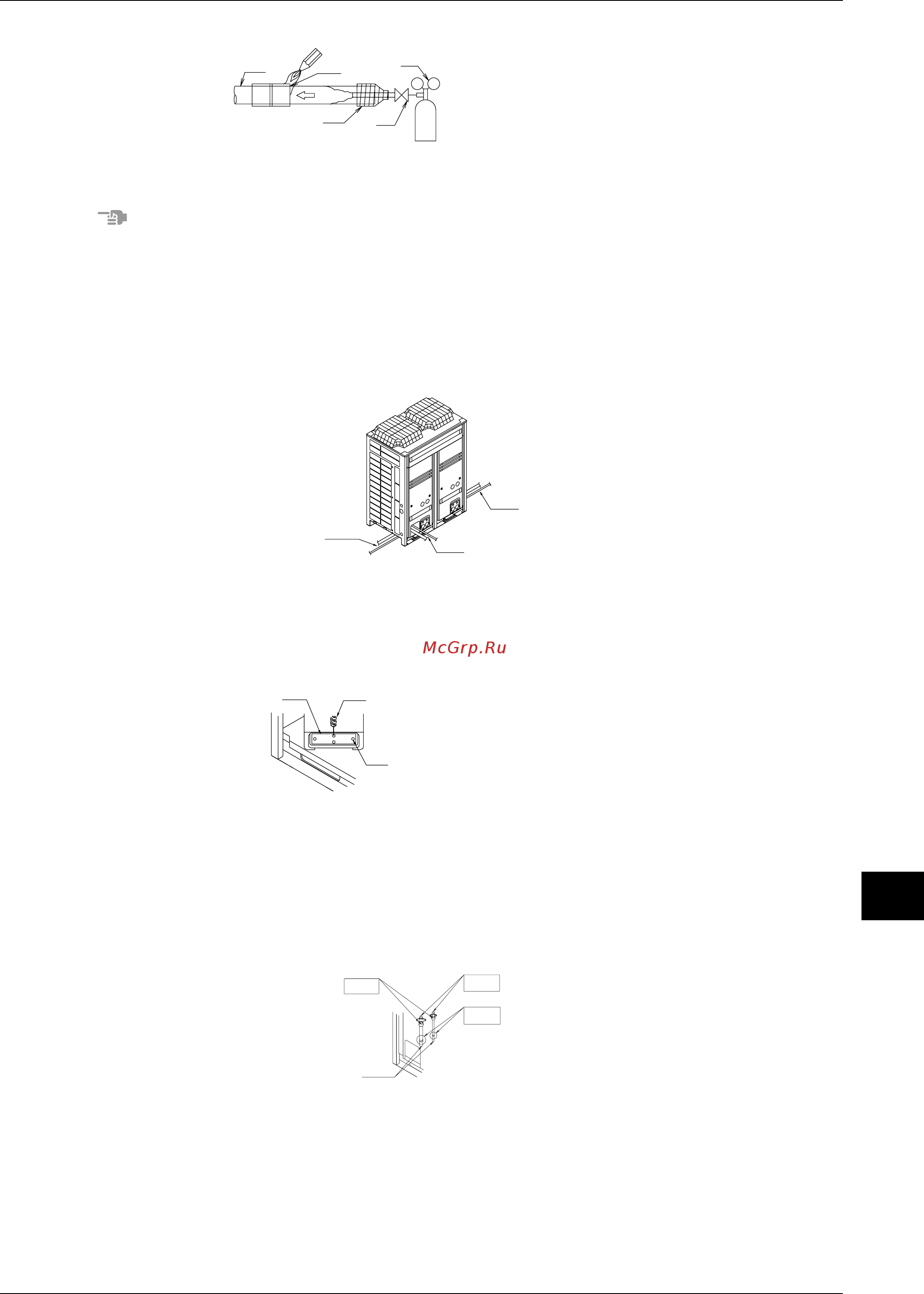

ED34-645B Refrigerant Piping
Installation of Outdoor Units 653
15
1. Refrigerant pipe
2. Location to be brazed
3. Nitrogen
4. Taping
5. Handy valve
6. Regulator
1. The pressure regulator for the nitrogen released when doing the brazing should be set to 0.02 MPa (about 0.2kg/
cm
2
:Enough to feel a slight breeze on your cheek).
Do not use anti-oxidants when brazing the pipe joints.
Residue can clog pipes and break equipment.
6.4 Connecting the Refrigerant Piping
(1) Direction to bring out the pipes
The local interunit piping can be connected either forward or to the sides (taken out through the bottom) as shown
in next figure.
(When passing out through the bottom, use the knock hole in the bottom frame.)
1. Left-side connection
2. Front connection
3. Right-side connection
Precautions when knocking out knock holes
• Open knock hole in the base frame by drilling the 4 concave around it with a 6mm bit. (Refer to next figure)
1. Knock hole
2. Drill
3. Concave section
• Be sure to avoid damaging the casing
• After knocking out the holes, we recommend you paint the edges and areas around the edges using the repair
paint to prevent rusting.
• When passing electrical wiring through the knock holes, remove any burrs and protect the wiring with a conduit or
bushings, making sure not to damage the wiring.
(2) Removing Pinch Piping
• When connecting refrigerant piping to an outdoor unit, remove the pinch piping. (Refer to next figure)
• Pinch piping should be removed using the procedure in next figure.
1. Shutoff valve (liquid side · gas side)
2. Service port
3. Pinch piping
4. Procedure 1:
Confirm the shutoff valve is closed.
5. Procedure 2:
Connect a charge hose to the service port of the liquid side and gas side shutoff valves and remove the gas from
the pinch piping.
6. Procedure 3:
After removing the gas from the pinch piping, dissolve the brazing using a burner and remove the pinch piping.
1
2
6
3
3
4
5
Note
1
2
3
1
2
3
1
4
2
5
6
3
