Control Devices ED34-645B
776 Control

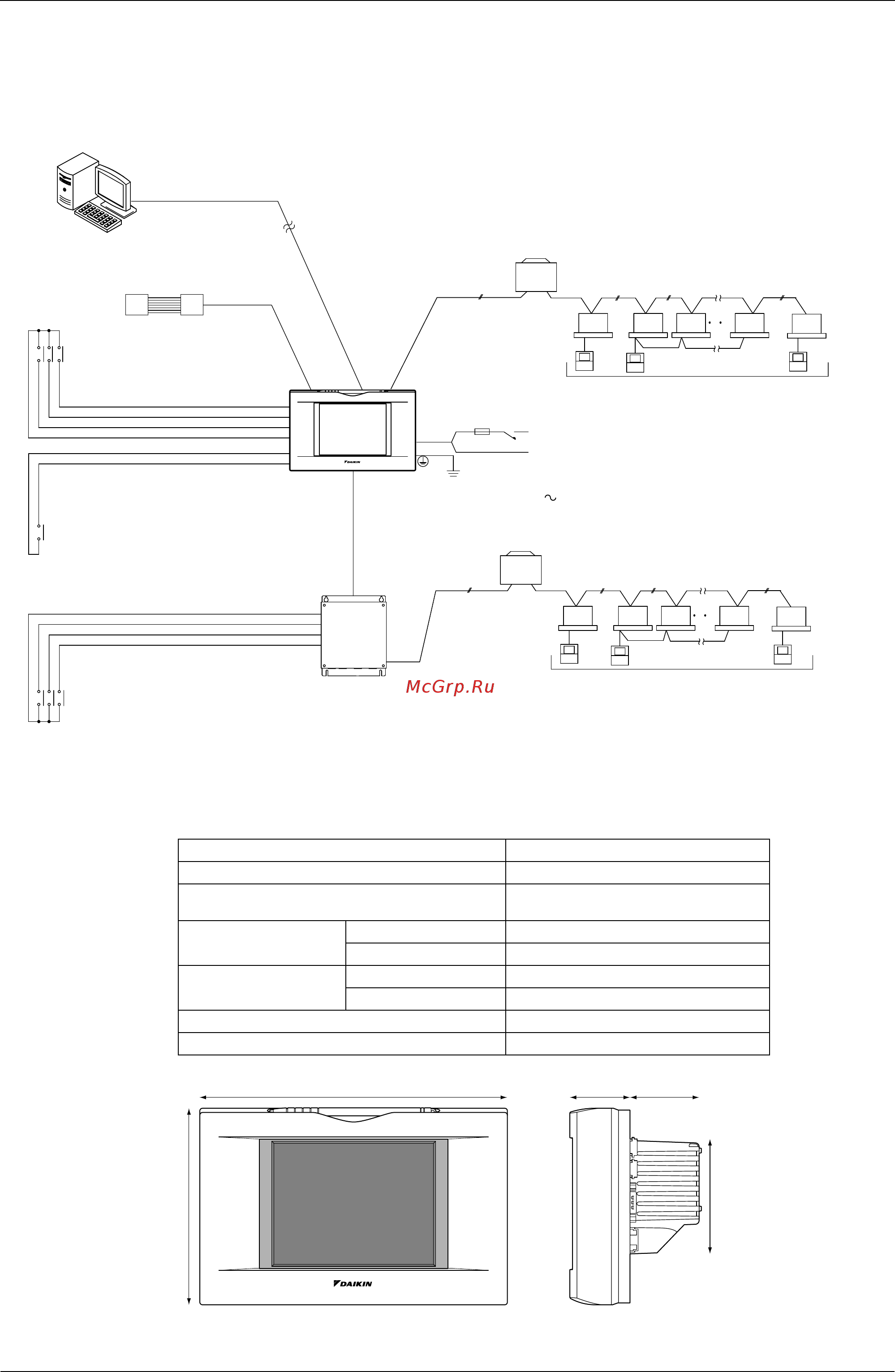

4.7.4 Options
3P073677-12R
4.7.5 Specification
Specification
Dimension
C : 3P073677-12R
Power AC100 - 240V 50/60Hz
Power consumption 10 W maximum
Force stop input
Normally-open contact
Contact current approximately 10 mA
Operating temperature
range
Ambient temperature 0°C~40°C
Ambient humidity 85%RH (Non condensing)
Storage temperature
range
Ambient temperature -10°C~50°C
Ambient humidity 85%RH (Non condensing)
Size 230×147×107 (W×H×D)
Weight (Mass) 1.2kg
Connecting Unification adaptor allows using the contact for normal and abnormal operation signal and collective
start/stop with a contact. For details, contact the vendor you purchased the product from.
Also, by connecting DIII NET-plus adapter, it is possible to operate and monitor the indoor units of 64 groups (intelligent
Touch Controller plus DIII NET-plus adapter-128 groups in total) additionally.
Central monitoring panel
(Collective start, stop and
error monitoring with contact)
Monitoring from PC is possible by Web E-mail functions.
(Optional intelligent Touch Controller Web Software is necessary)
Unification adaptor
for computerized control
CN2
LAN
F1,F2
F1,F2
F1,F2
F1,F2 F1,F2 F1,F2
F1,F2 F1,F2
DIII NET-plus adapter
RS-232C
Outdoor unit
Outdoor unit
(The number of connectable indoor units is up to 64
units maximum, where the Power Proportional
Distribution Card as option is used.)
(The number of connectable indoor units is up to 64
units maximum, where the Power Proportional
Distribution Card as option is used.)
Up to 64 groups maximum
Up to 64 groups maximum
Up to 16 units maximum
Up to 16 units maximum
Force stop command
Measuring meter (max 3 units)
(Where Power Proportional
Distribution Card as option is used)
(Where Power Proportional
Distribution Card as option is used)
Measuring meter (max 3 units)
Power supply
100 - 240 VAC
50/60 Hz
L
N
L N
switchFuse(10A)
Grounding work
The specification and appearance of the product may be modified for improvement without prior notice.
147
90
230 50 57
