Daikin RXYQ28PY1 [275/487] Procedure for wiring inside units
![Daikin RXYQ20PY1 [275/487] Procedure for wiring inside units](/views2/1711913/page275/bg113.png)
ED34-645B Field Wiring
Installation of Outdoor Units 667
15
• When two wires are connected to a single terminal, connect them so that the rear sides of the crimp contacts face
each other. Also, make sure the thinner wire is on top, securing the two wires simultaneously to the resin hook
using the included clamp (1).
7.6 Procedure for Wiring Inside Units

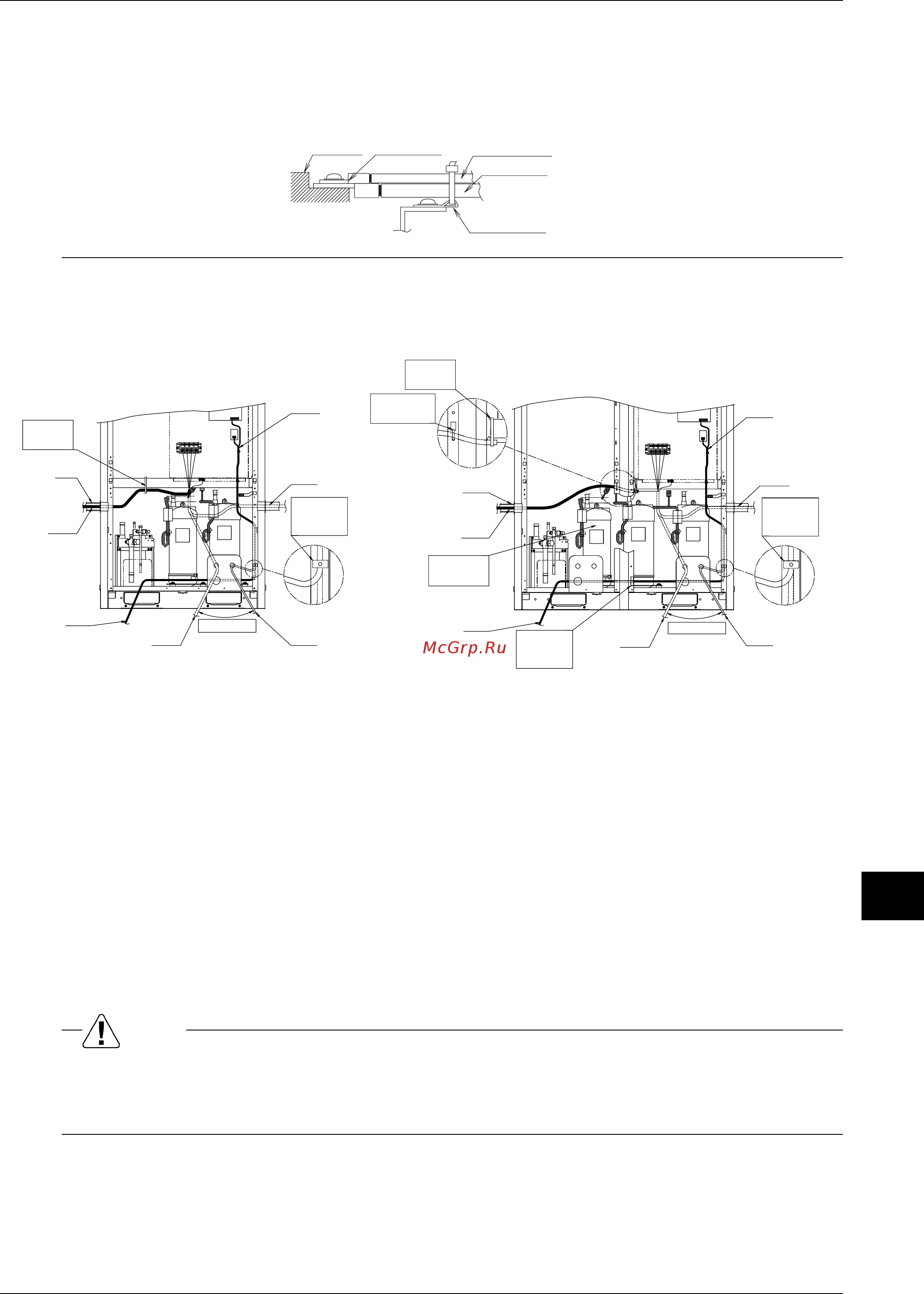

• Referring to next figure, secure and wire the power and transmission wiring using the included clamp (1), (2), and
(3).
1. Retain with accessory clamp (3).
2. Electric conduit
3. When routing out the power/ground wires from the left side.
4. When routing out the transmission wiring from the opening for piping.
5. When routing out the power/ground wires from the front.
6. Clear over 50 mm.
7. When routing out the transmission wiring from the knockout hole.
8. Retain to the back of the column support with the accessory clamp (2).
9. When routing out the power/ground wires from the right side.
10.Power wiring
11.Transmission wiring
12.Ground wire
13.Secure to the back side of the support beam using the accessory clamp (1).
14.Retain to the back of the column support with the accessory clamp (2).
15.When wiring, exercise sufficient caution not to detach the acoustic insulators from the compressor.
Caution
• The transmission wiring must be at least 50 mm away from the power wiring.
• Make sure all wiring do not contact to the pipes (hatching parts in the previous figure).
• After wiring work is completed, check to make sure there are no loose connections among the electrical parts in
the EL.COMPO.BOX.
Terminal
block
Crip style
terminal
Wire: narrow
Wire: thick
Resin hook
1
2
3
4
5
6
7
8
9
10
12
11
[In case of 5~10HP type] [In case of 12~18HP type]
1
13
2
3
4
14
5
6
7
8
9
11
10
12
15
