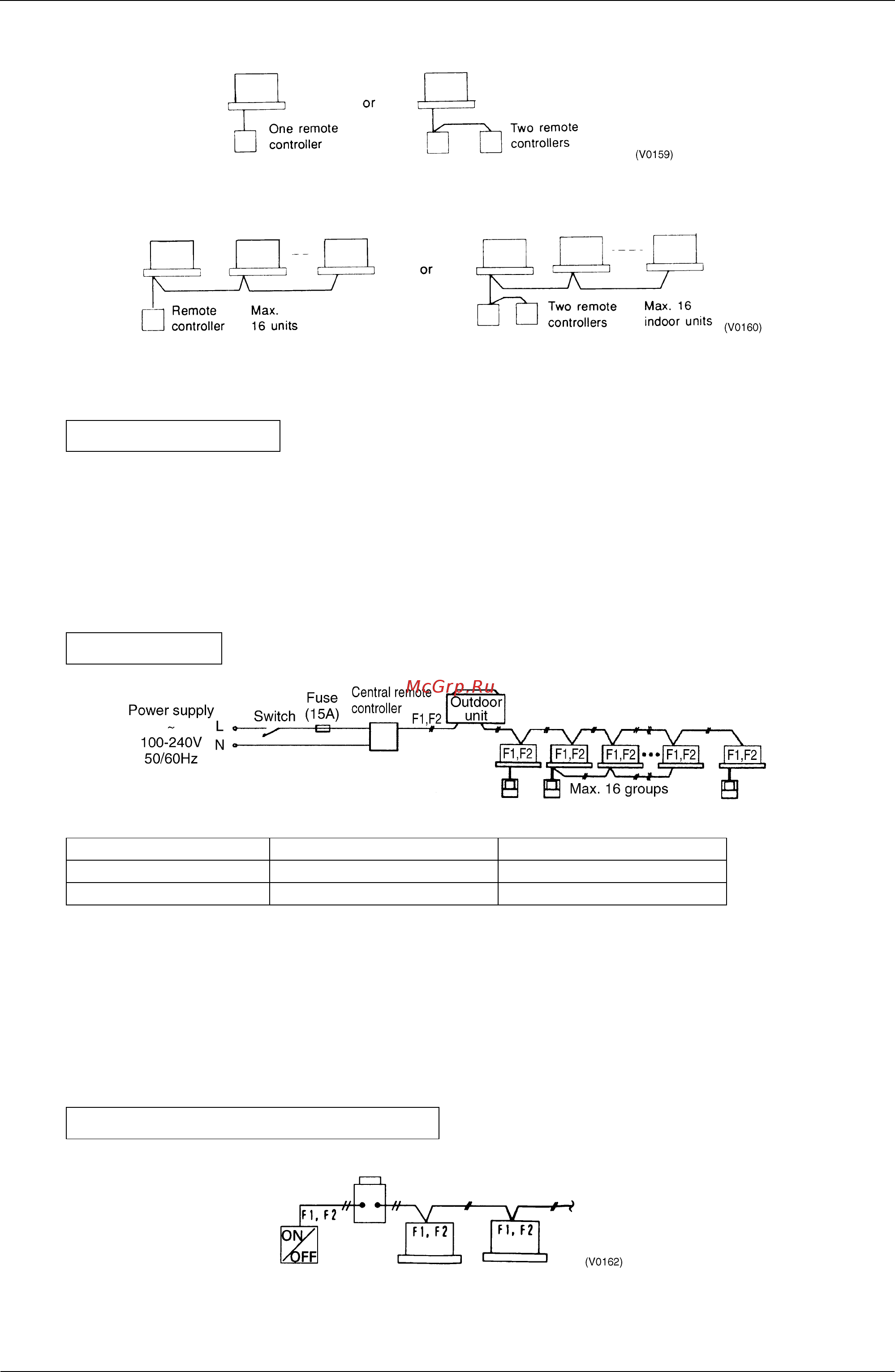

Control Devices ED34-645B
756 Control
2. One indoor unit controlled by one or two remote controllers
3. A maximum of 16 indoor units controlled in groups by one or two remote controllers
C: 1P162827
4.4.2 Electric Wiring
All wiring, components and materials to be procured on the site must comply with the applicable local and national
codes.
Use copper conductors only.
All field wiring and components must be provided by licensed electrician.
Unit shall be grounded in compliance with the applicable local and national codes.
Fit the power supply wiring with a fuse and a switch.
After wiring work, check power to the equipment shuts OFF when switch is shut OFF.
Wiring Specification
Notes:
1. The size of power supply wiring must comply with the applicable national and local codes.
2. Allowable length of transmission wiring is as follows.
Max. 1000m (Total wiring length: 2000m)
Connect the wiring between indoor and outdoor units, indoor/outdoor units and power supply, and indoor units and
remote controllers.
For details, refer to the installation manuals of indoor and outdoor units.
1. Series Wiring
General Instructions
Wiring Outline
Type Size
Power Supply Wiring H05VV-U3G (Note 1)
Transmission Wiring Sheathed Wire (2 wire) (Note 2) 0.75-1.25mm
2
Examples of Wiring for Transmission
