ED34-645B Control Functions
Control 865
16

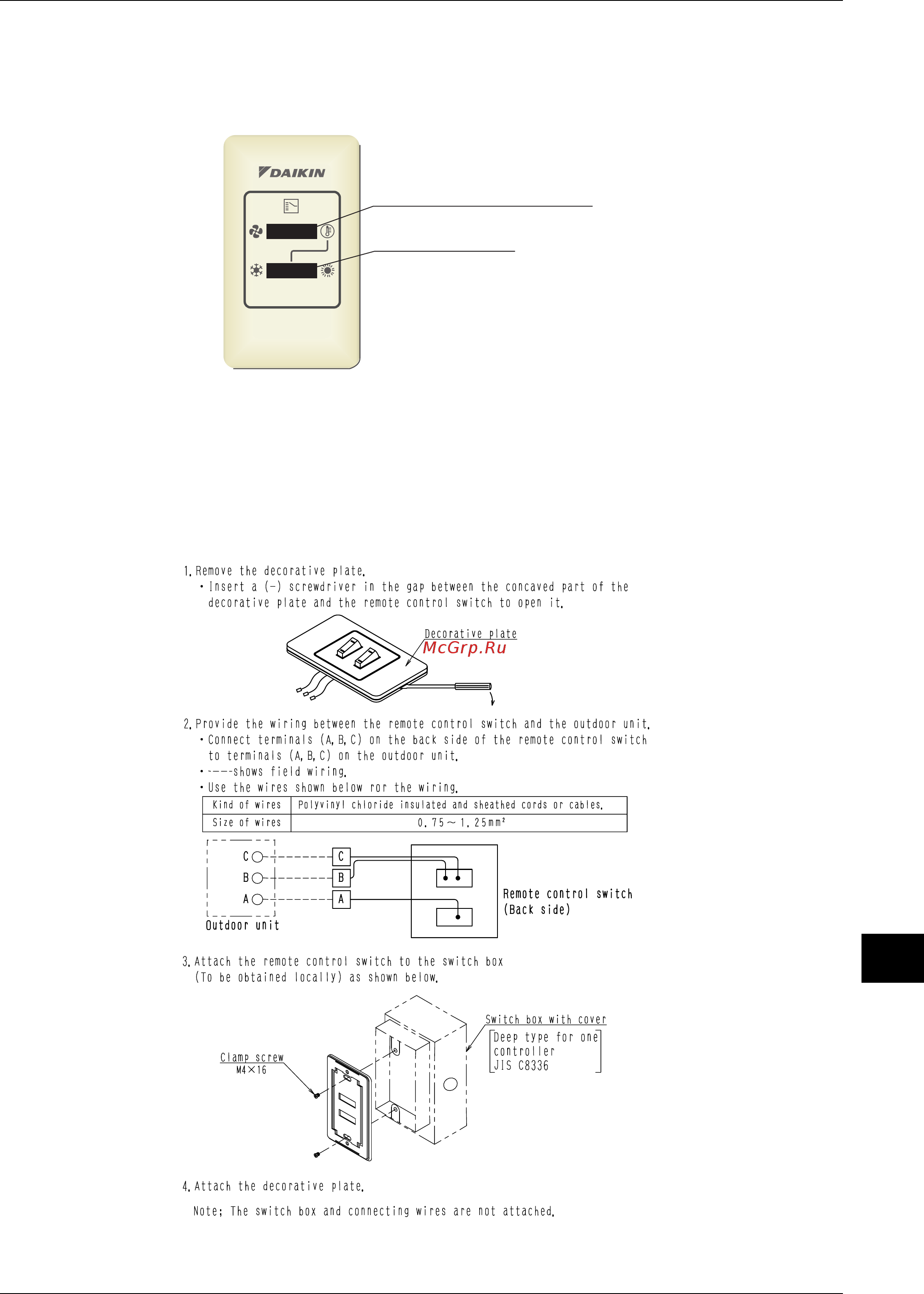

6.5 <KRC19-26A> Cool / Heat Selector for Outdoor Units
This remote controller has a switch to enable selection of a heating or cooling operation for each outdoor unit or
system. The controller can also be used to switch to the fan operation mode, for example, during moderate weather
season.
Basically, this remote controller is not necessary for the Cooling/Heating VRV System and the Cooling Only VRV
System.
When the BS unit that automatically selects either cooling or heating operation mode is used in the manual mode,
this remote controller can be connected to the BS unit.
Installation Point
Fan / Temperature control selector switch
Cool / Heat selector switch
(V2227)
3P077945A
