DIVAtop HC
27
TR
cod. 3540S840 - 02/2010 (Rev. 00)

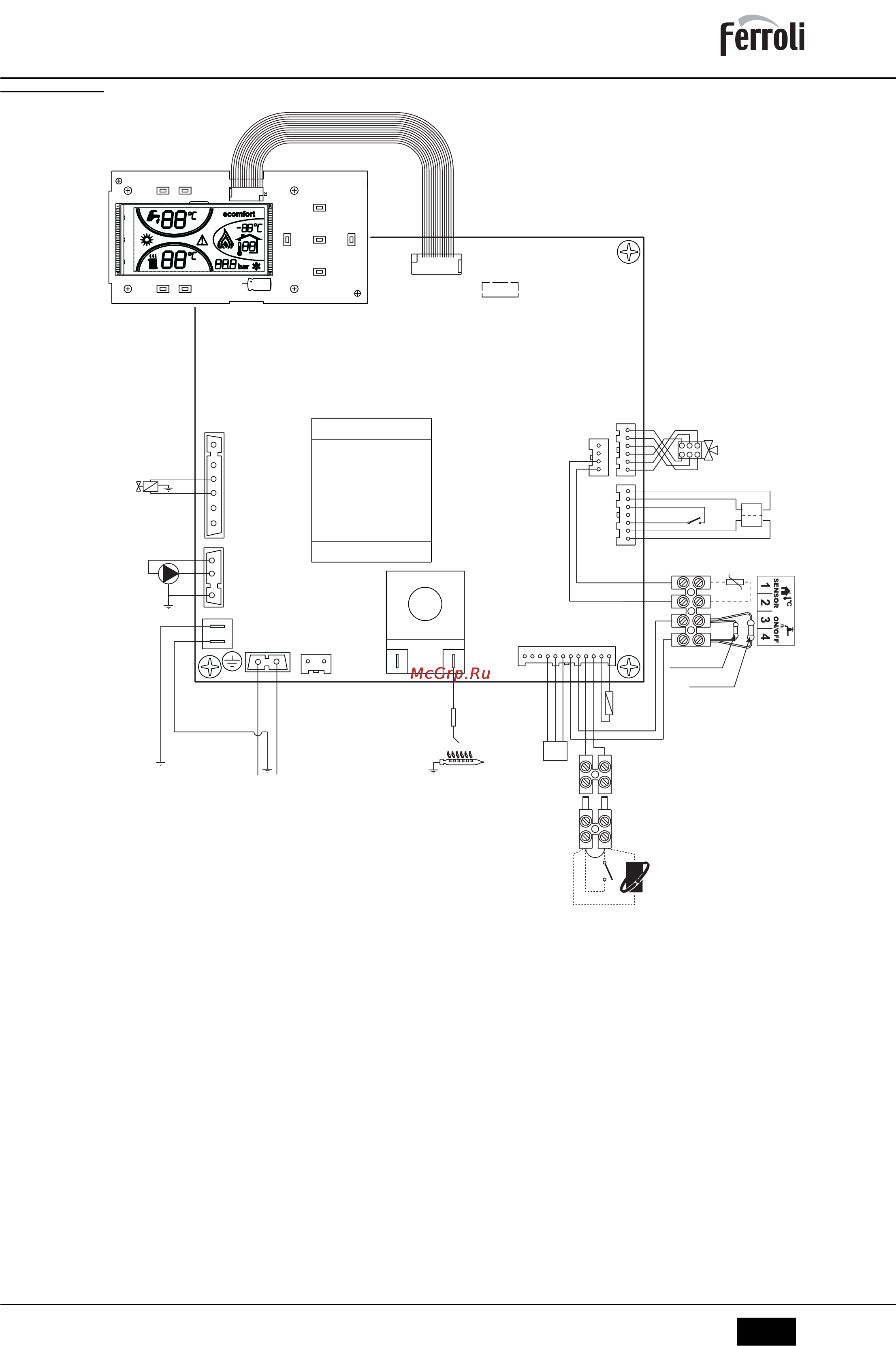

5.5 Elektrik úeması
úek. 25 - Elektrik úeması
A
Dikkat: Ortam termostatınıveya uzaktan kumandalı zamanlayıcı kon-
trolünütakmadan önce terminal blo÷undaki konnektörü çıkartınız.
Açıklamalar
32 Isıtma sirkülatörü
44 Gaz valfı
47 Modureg
72 Ortam termostatı
81 Ateúleme ve tespit elektrotu
95 Saptırıcı valf
126 Duman termostatı
138 Harici sensör
139 Uzaktan kumandalı zamanlayıcı (OpenTherm)
246 Basınç düúürücü
278 Çift sensör (Emniyet + Isıtma)
LCD
X8
PROG
X10
X7
X9
X6
X5
X2
X1
L aux N
L main N
X3
X4
TR1
T2
X11
DBM03
81
°
T
°
T
278
126
7
6
5
4
3
2
1
9 8 7 6 5 4 3 2 1
12 11 10
47
246
OUT
+5V
GND
L N
230V
50Hz
1
2
3
1
2
3
4
5
6
32
44
95
6
5
4
3
2
1
4
3
2
1
DSP05
72
139
10kOhm
1.8kOhm
138
1
2
