DIVAtop HC
52
RO
cod. 3540S840 - 02/2010 (Rev. 00)

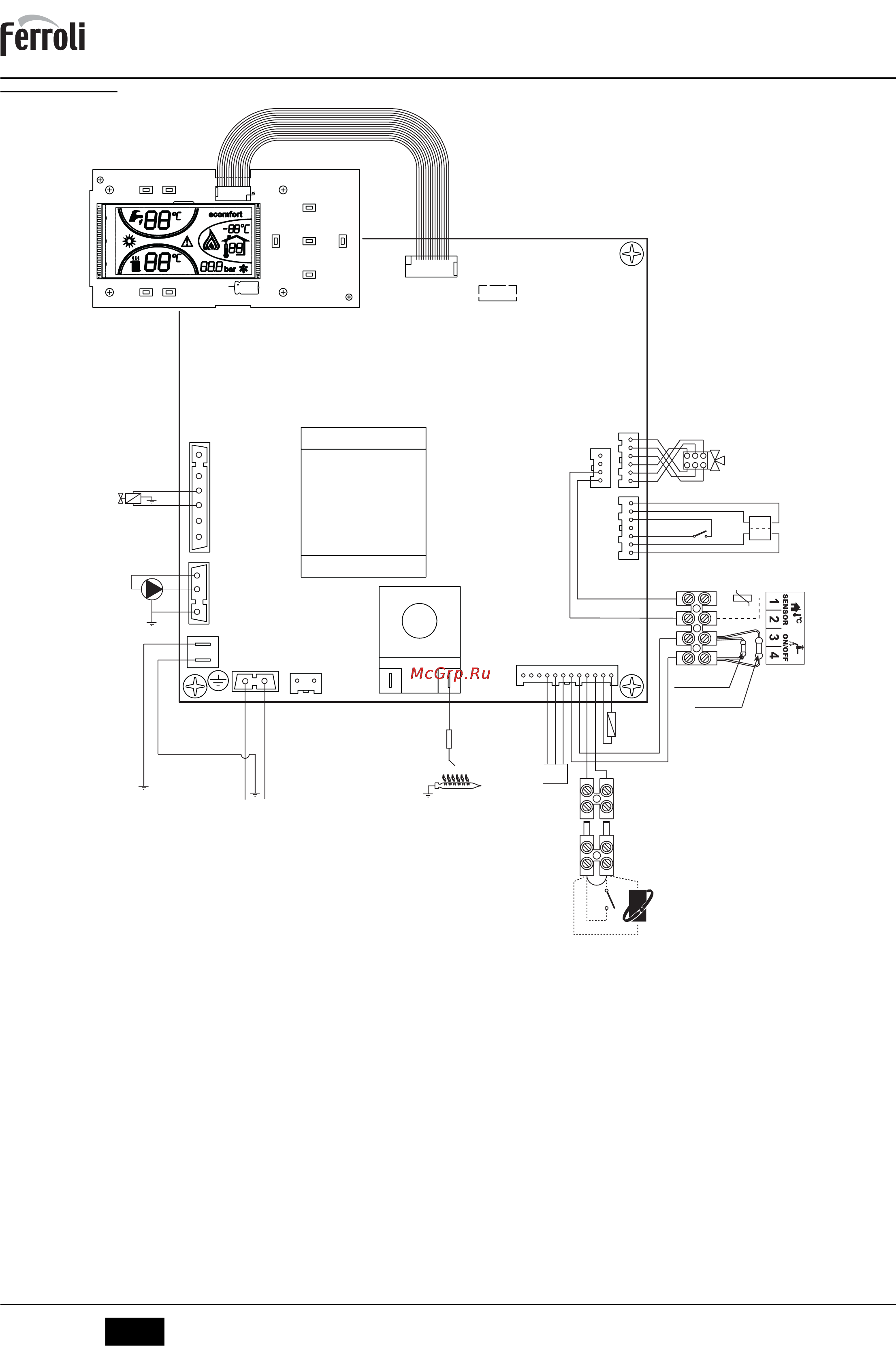

5.5 Schemă electrică
fig. 25 - Schemă electrică
A
AtenĠie: Înainte de a racorda termostatul de cameră sau cronocomanda la
distanĠă, scoateĠi puntea de pe panoul de borne.
Legendă
32 Pompă de circulaĠie încălzire
44 Valvă de gaz
47 Cablu "modureg"
72 Termostatul de cameră
81 Electrod de aprindere/detectare
95 Valvă deviatoare
126 Termostat gaze arse
138 Sondă externă
139 Cronocomandă la distanĠă (OpenTherm)
246 Transductor de presiune
278 Senzor dublu (SiguranĠă + Încălzire)
LCD
X8
PROG
X10
X7
X9
X6
X5
X2
X1
L aux N
L main N
X3
X4
TR1
T2
X11
DBM03
81
°
T
°
T
278
126
7
6
5
4
3
2
1
9 8 7 6 5 4 3 2 1
12 11 10
47
246
OUT
+5V
GND
L N
230V
50Hz
1
2
3
1
2
3
4
5
6
32
44
95
6
5
4
3
2
1
4
3
2
1
DSP05
72
139
10kOhm
1.8kOhm
138
1
2
