99
12
SET MODE
■ Miscellaneous (others) set mode
CCaalliibbrraattiioonn MMaarrkkeerr
This item is used for a simple frequency check of the
transceiver.
See p. 109 for calibration procedure.
Turn the calibration marker OFF after checking the
frequency of the transceiver.
OONN
Calibration marker ON
OOFFFF
Calibration marker OFF
(default)
BBeeeepp((CCoonnffiirrmmaattiioonn))
A beep sounds each time a switch is pushed to con-
firm it. This function can be turned OFF for silent op-
eration.
The volume level can be set in level set mode. (p. 96)
OONN
Confirmation beep ON
(default)
OOFFFF
Confirmation beep OFF
BBeeeepp((BBaanndd EEddggee))
A beep sounds when an operating frequency enters
or exits an amateur band. This functions independent
of the confirmation beep setting (above).
The volume level can be set in level set mode. (p. 96)
OONN
Band edge beep ON
(default)
OOFFFF
Band edge beep OFF
RRFF//SSQQLL CCoonnttrrooll
The [RF/SQL] control can be set as the RF/squelch
control (default), the squelch control only (RF gain is
fixed at maximum) or ‘Auto’ (RF gain control in SSB,
CW and RTTY; squelch control in AM and FM).
See pgs. 2, 30 for details.
RRFF++SSQQLL
[RF/SQL] control as RF/squelch control
(default)
SSQQLL
[RF/SQL] control as squelch control
AAUUTTOO
[RF/SQL] control as RF gain control in SSB,
CW and RTTY; squelch control in AM and
FM

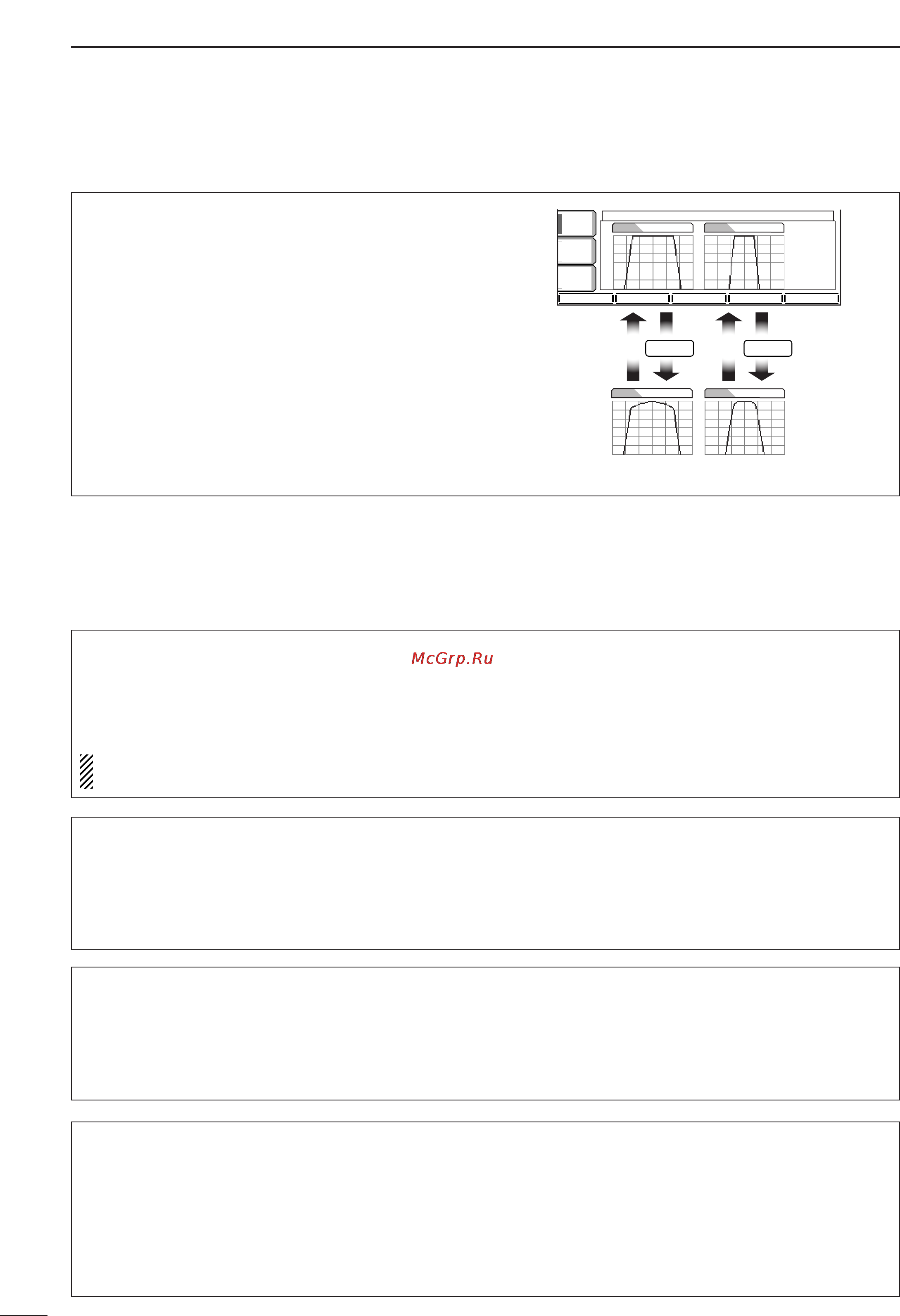

■ DSP filter set mode
To suit your operating style, the type of DSP filter
shape for SSB and CW can be selected.
q Push the [EXIT/SET] several times to close a
multi-function screen, if necessary.
w Push the [EXIT/SET] switch for 1 sec. to enter set
mode.
e Push the [(F-3)DSP] switch to enter the DSP filter
set mode.
r Push one of [(F-2)SSB-FIL] or [(F-4)CW-FIL] to
select the desired DSP filter shape from sharp and
soft for SSB or CW mode, respectively.
t Push [EXIT/SET] twice to exit the DSP filter set
mode.
AGCAGC
MIDMID
BK-INBK-IN
OFFOFF
1/41/4
OFFOFF
DSP FILTER SET
SSBSSB
SHARPSHARP CWCW
SHARPSHARP
SSB-FILSSB-FIL CW-FILCW-FIL
SSBSSB
SOFTSOFT CWCW SOFTSOFT
F-4
Push
F-2
Push
