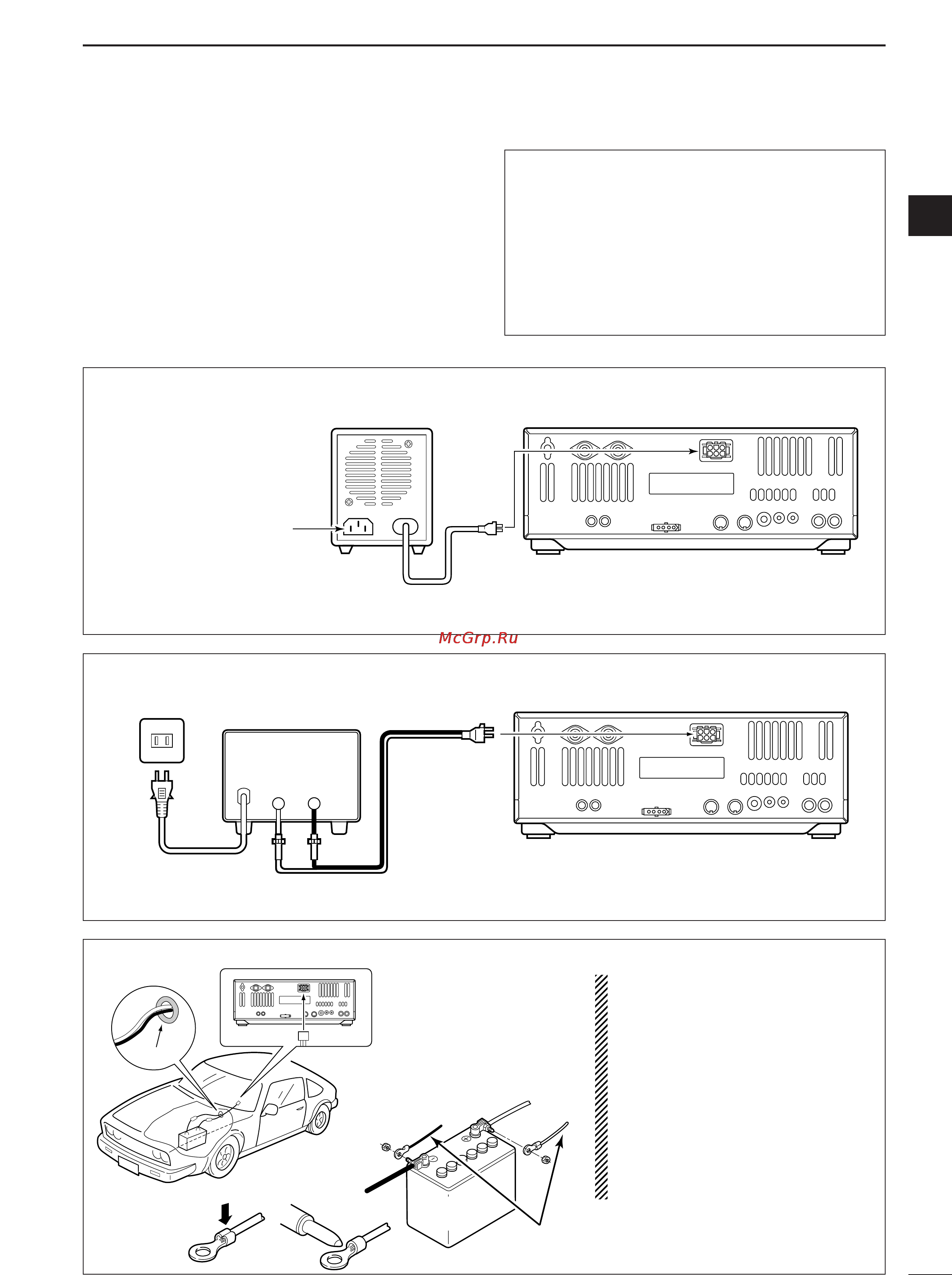

INSTALLATION AND CONNECTIONS
2
■ Power supply connections
Use the optional PS-125 DC power supply with a 25 A
capacity when operating the transceiver with AC
power. Refer to the diagrams below.
CAUTION: Before connecting the DC power
cable, check the following important items. Make
sure:
• The [POWER] switch is OFF.
•Output voltage of the power source is 12–15 V
when you use a non-Icom power supply.
• DC power cable polarity is correct.
Red : positive + terminal
Black : negative _ terminal
CONNECTING A DC POWER SUPPLY
to DC power
socket
A DC power supply
AC outlet
AC cable
30 A fuses
Supplied
DC power cable
13.8 V; at least 23 A
Black
_
Red
+
Transceiver
CONNECTING A VEHICLE BATTERY
12 V
battery
Supplied
DC power cable
+ red
_ black
Crimp
Solder
Grommet
NOTE: Use terminals for
the cable connections.
R WARNING NEVER con-
nect to a battery without supplied
DC fuses, otherwise a fire hazard
may occur.
NEVER connect the transceiver
directly to a 24 V battery.
IMPORTANT! Detailed installation
notes for Icom mobile transceivers to
be fitted into vehicles are available.
Contact your Icom dealer or distribu-
tor.
CONNECTING PS-125 DC POWER SUPPLY
PS-125
Connect to an AC outlet
using the supplied AC cable.
DC power cable
DC power
socket
Transceiver
