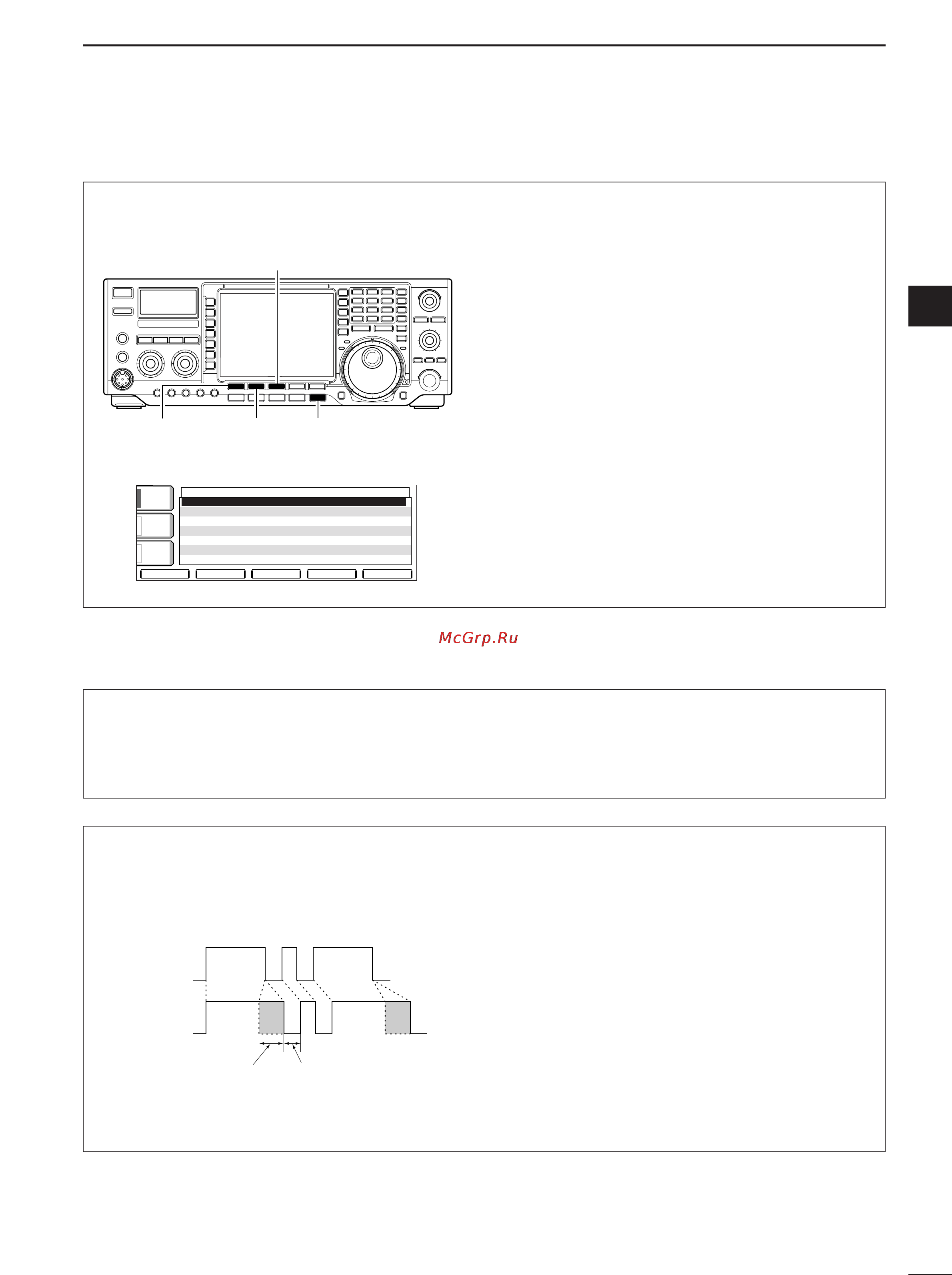

![Icom IC-756PROIII [47/124] D keyer set mode](/views2/1074410/page47/bg2f.png)
42
4
RECEIVE AND TRANSMIT
DD
Keyer set mode
KKeeyyeerr RReeppeeaatt TTiimmee
(Keyer repeat time)
When sending CW using the repeat timer, this item
sets the time between transmission.
•1 to 60 sec. in 1 sec. steps can be selected.
•Push [(F-3)DEF] for 1 sec. to select a default setting.
(default: 2 sec.)
DDoott//DDaasshh RRaattiioo
(Dot/Dash ratio)
This item sets the dot/dash ratio.
•1:1:2.8 to 1 : 1 : 4.5 can be set.
• Check the ratio with side tone in CW mode.
•Push [(F-3)DEF] for 1 sec. to select a default ratio
of 1 : 1 : 3.0.
Keying weight example: Morse code “K”
DASH
Weight setting:
1:1:3 (default)
Weight setting:
Adjusted
DASH
DOT (Fixed*)
Adjustable range SPACE (Fixed*)
*SPACE and DOT length can be adjusted with
[KEY SPEED] only.
4
This set mode is used to set the CW side tone, mem-
ory keyer repeat time, dash weight, paddle specifica-
tions, keyer type, etc.
•Setting the electronic keyer
q Push [EXIT/SET] several times, if necessary.
w Push [CW/RTTY] to select CW mode.
e Push [(F-3)KEYER] then [EXIT/SET] to select
keyer set mode.
r Push [(F-4)CW KEY] to select memory keyer set
mode.
t Push [(F-1)
YY
] or [(F-2)
ZZ
] to select the desired set
item.
y Set the desired condition using the tuning dial.
•Push [(F-3)DEF] for 1 sec. to select a default condition
or value.
u Push [EXIT/SET] twice to normal screen.
DEFDEF
KEYER CW-KEYKEYER CW-KEY
é
è
KeyerKeyerRepeatRepeatTimeTime 2s 2s
Dot/DashDot/DashRatioRatio 1:1:3.01:1:3.0
RiseRiseTimeTime 4ms4ms
PaddlePaddlePolarityPolarity NormalNormal
KeyerKeyerTypeType ELEC-KEYELEC-KEY
MICMICUp/DownUp/Down KeyerKeyer OFFOFF
AGCAGC
MIDMID
1/41/4
OFFOFF
BK-INBK-IN
OFFOFF
[(F-2)√][(F-1)∫] [EXIT/SET]
[(F-3)DEF]
