56
4
FUNCTION FOR RECEIVE
5

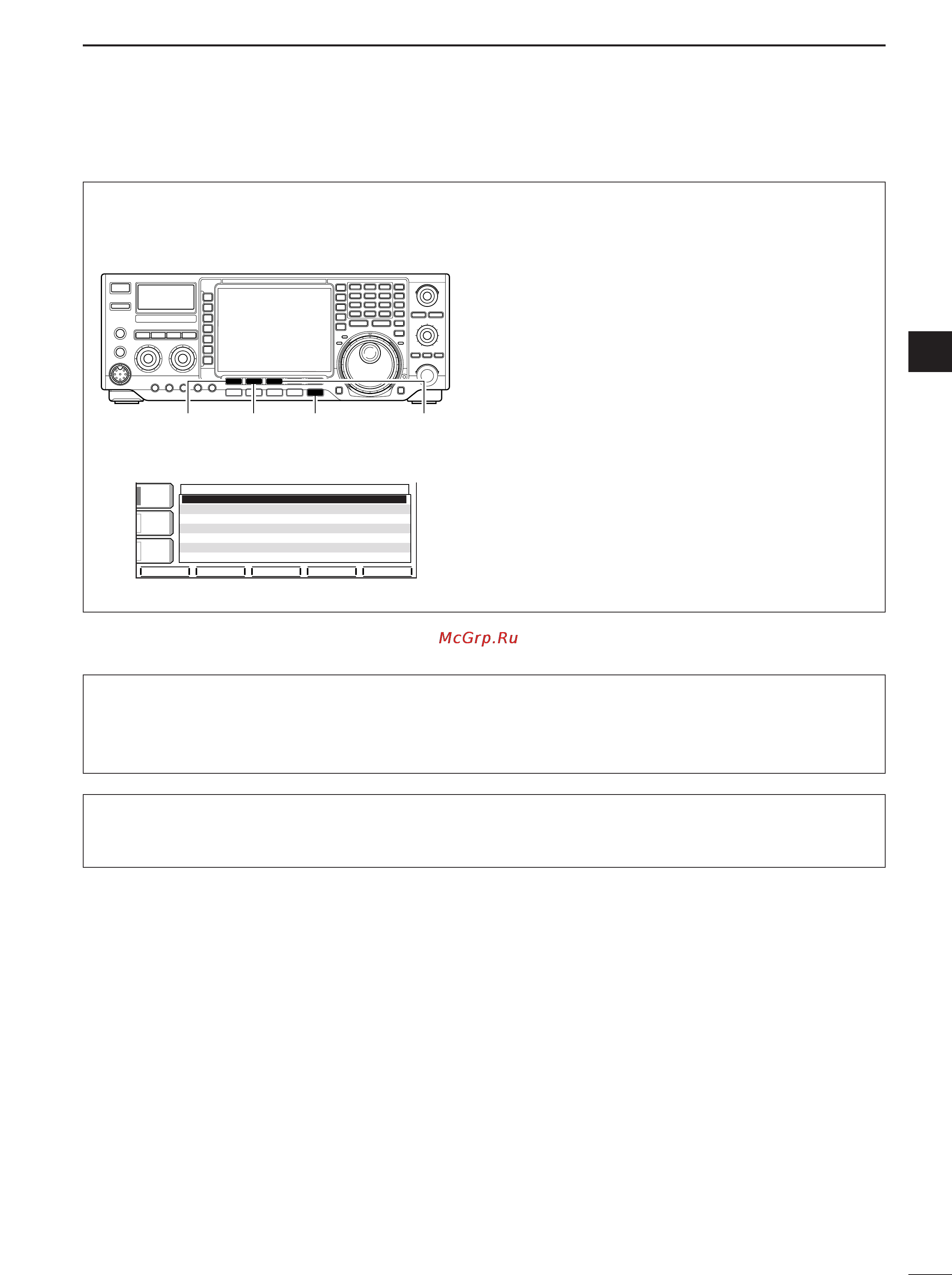

DScope set mode
The spectrum scope shows the transmit signal wave-
form while transmitting. This can be deactivated if de-
sired.
The spectrum scope shows the transmit signal wave-
form while transmitting. This can be deactivated if de-
sired.
When “OFF” is selected, the spectrum scope holds
the received waveform while transmitting and does
not show the transmit waveform.
q During spectrum scope indication ON, push [(F-5)
SET] to select scope set mode screen.
w Push [(F-5)SET] to select the spectrum scope set
mode.
e Push [(F-1)
YY
] or [(F-2)
ZZ
] to select the desired set
item.
r Rotate the tuning dial to select the desired condi-
tion.
•Push [(F-3)DEF] for 1 sec. to select a default condition.
t Push [EXIT/SET] to exit spectrum scope set
mode.
DEFDEF
é
è
VOXVOX
OFFOFF
COMPCOMP
OFFOFF
WIDEWIDE
AGCAGC
MIDMID
ScopeScopeduringduringTxTx ONON
MaxMaxHoldHold ONON
SCOPESCOPESETSET
[(F-2)Z][(F-1)Y] [EXIT/SET] [(F-3)DEF]
SSccooppee dduurriinngg TTxx
Turn the transmitting signal waveform indication ON
and OFF.
When “OFF” is selected, the spectrum scope holds
the received waveform while transmitting and does
not show the transmit waveform. (default: ON)
MMaaxx HHoolldd
Turn the peak level holding function ON and OFF.
(default: ON)
