Icom IC-756PROIII [98/124] D setting power off period
![Icom IC-756PROIII [98/124] D setting power off period](/views2/1074410/page98/bg62.png)
93
11

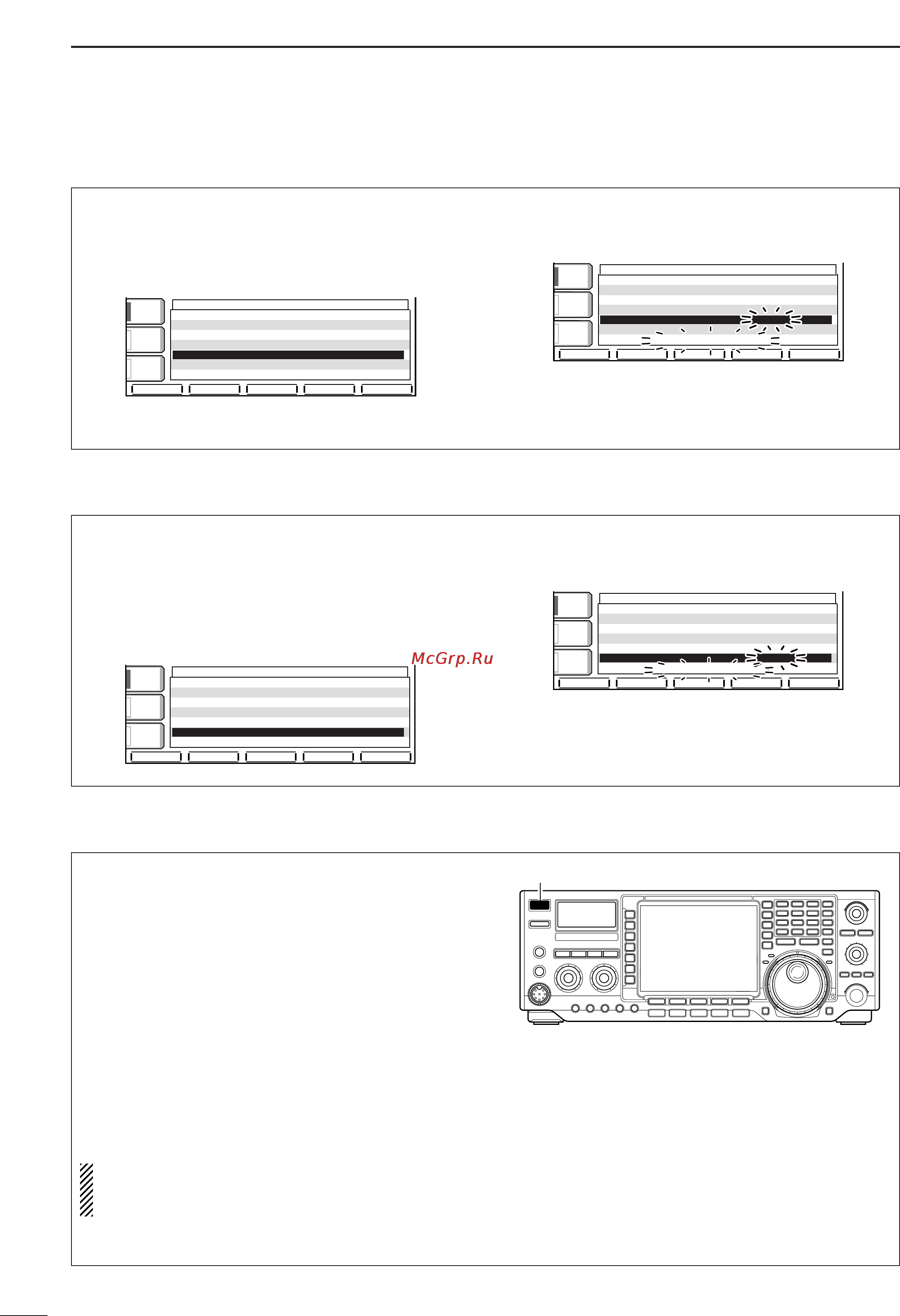

CLOCK AND TIMERS
The transceiver can be set to turn OFF automatically
after being activated via the power-on timer. The
power-off period can be set to 5–120 min. in 5 min.
steps.
q Entering time set mode, push [(F-2)
ZZ
] to select
the Power-OFF Period item.
w Set the desired power-off time using the tuning
dial.
• “TIMER – set Push [SET]” blinks.
e Push [(F-4)SET] to enter the set time.
• Push [EXIT/SET] to cancel the setting.
r Push [EXIT/SET] twice to exit timer set mode.
TIME SETTIME SET
é
è
SETSET
TimeTime(Now)(Now) 15:2415:24
CLOCK2CLOCK2FunctionFunction ONON
CLOCK2CLOCK2OffsetOffset 0:000:00
TimerTimerFunctionFunction ONON
Power-ONPower-ONTimerTimerSetSet 19:3019:30
Power-OFFPower-OFFPeriodPeriod 45min45min
TIMER-setTIMER-setPushPush [SET][SET]
COMPCOMP
OFFOFF
WIDEWIDE
AGCAGC
MIDMID
VOXVOX
OFFOFF
TIME SETTIME SET
é
è
TimeTime(Now)(Now) 15:2415:24
CLOCK2CLOCK2FunctionFunction ONON
CLOCK2CLOCK2OffsetOffset 0:000:00
TimerTimerFunctionFunction ONON
Power-ONPower-ONTimerTimerSetSet 19:3019:30
Power-OFFPower-OFFPeriodPeriod 60min60min
COMPCOMP
OFFOFF
WIDEWIDE
AGCAGC
MIDMID
VOXVOX
OFFOFF
q Preset the power-on time and power-off period as
described previously.
w Push [POWER] momentarily to turn the timer func-
tion ON.
•The [POWER] light lights when the timer function is
ON.
e Push [POWER] for 1 sec. to turn the power OFF.
• The [POWER] light lights continuously.
r When the set time arrives, the power is automati-
cally turned ON.
t The transceiver emits 10 beeps and turns OFF
after the power-off period elapses.
• The [POWER] light blinks while beeping.
•Push [POWER] momentarily to cancel the power-off
timer, if desired.
The timer function in time set mode must be turned
ON to enable the timer operation. See above for
details.
[POWER]
The transceiver can be set to turn ON automatically at
a specified time.
q Entering time set mode, push [(F-1)
YY
] or [(F-2)
ZZ
]
to select the Power-ON Time Set item.
w Set the desired power-on time using the tuning
dial.
• “TIMER–set Push [SET]” blinks.
e Push [(F-4)SET] to enter the set time.
• Push [EXIT/SET] to cancel the setting.
r Push [EXIT/SET] twice to exit time set mode.
TIME SETTIME SET
é
è
TimeTime(Now)(Now) 15:2415:24
CLOCK2CLOCK2FunctionFunction ONON
CLOCK2CLOCK2OffsetOffset 0:000:00
TimerTimerFunctionFunction ONON
Power-ONPower-ONTimerTimerSetSet 19:3019:30
Power-OFFPower-OFFPeriodPeriod 60min60min
TIMER-setTIMER-setPushPush [SET][SET]
SETSET
COMPCOMP
OFFOFF
WIDEWIDE
AGCAGC
MIDMID
VOXVOX
OFFOFF
TIME SETTIME SET
é
è
TimeTime(Now)(Now) 15:2415:24
CLOCK2CLOCK2FunctionFunction ONON
CLOCK2CLOCK2OffsetOffset 0:000:00
TimerTimerFunctionFunction ONON
Power-ONPower-ONTimerTimerSetSet 0:000:00
Power-OFFPower-OFFPeriodPeriod 60min60min
COMPCOMP
OFFOFF
WIDEWIDE
AGCAGC
MIDMID
VOXVOX
OFFOFF
DSetting power-on time
DSetting power-off period
DTimer operation
