Icom IC-756PROIII [67/124] Dsp filter shape
![Icom IC-756PROIII [67/124] Dsp filter shape](/views2/1074410/page67/bg43.png)
62
5
FUNCTION FOR RECEIVE

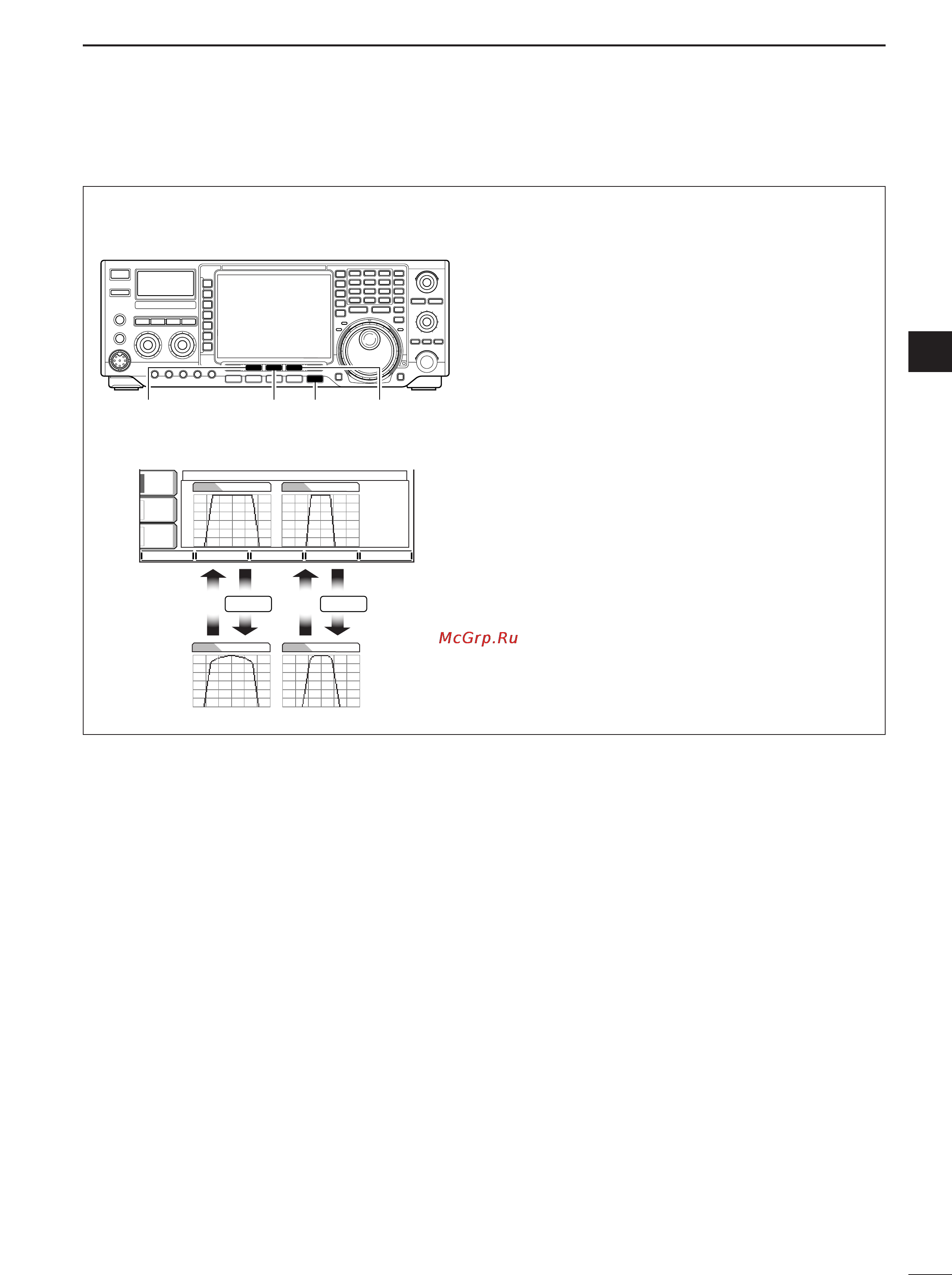

■ DSP filter shape
The type of DSP filter shape for each SSB and CW
can be selected independently from soft and sharp.
q Push [EXIT/SET] several times to close a multi-
function screen, if necessary.
w Push [EXIT/SET] switch for 1 sec. to enter set
mode.
e Push [(F-3)DSP] to enter the DSP filter set mode.
r Push one of [(F-2)SSB-FIL] or [(F-4)CW-FIL] to
select the desired DSP filter shape from sharp and
soft for each SSB or CW mode, respectively.
t Push [EXIT/SET] twice to exit the set mode.
AGCAGC
MIDMID
BK-INBK-IN
OFFOFF
1/41/4
OFFOFF
DSP FILTER SET
SSBSSB
SHARPSHARP CWCW
SHARPSHARP
SSB-FILSSB-FIL CW-FILCW-FIL
SSBSSB
SOFTSOFT CWCW SOFTSOFT
F-4
Push
F-2
Push
[EXIT/SET][(F-3)DSP][(F-2)SSB-FIL] [(F-4)CW-FIL]
5
