RECEIVE AND TRANSMIT
4
■ Electronic CW keyer
The IC-756PROIII has a number of convenient func-
tions for the electronic keyer that can be accessed
from the memory keyer menu.
q Push [EXIT/SET] several times, if necessary.
w Push [CW/RTTY] to select CW mode.
e Push [(F-3)KEYER] then [EXIT/SET] to select
memory keyer menu screen.

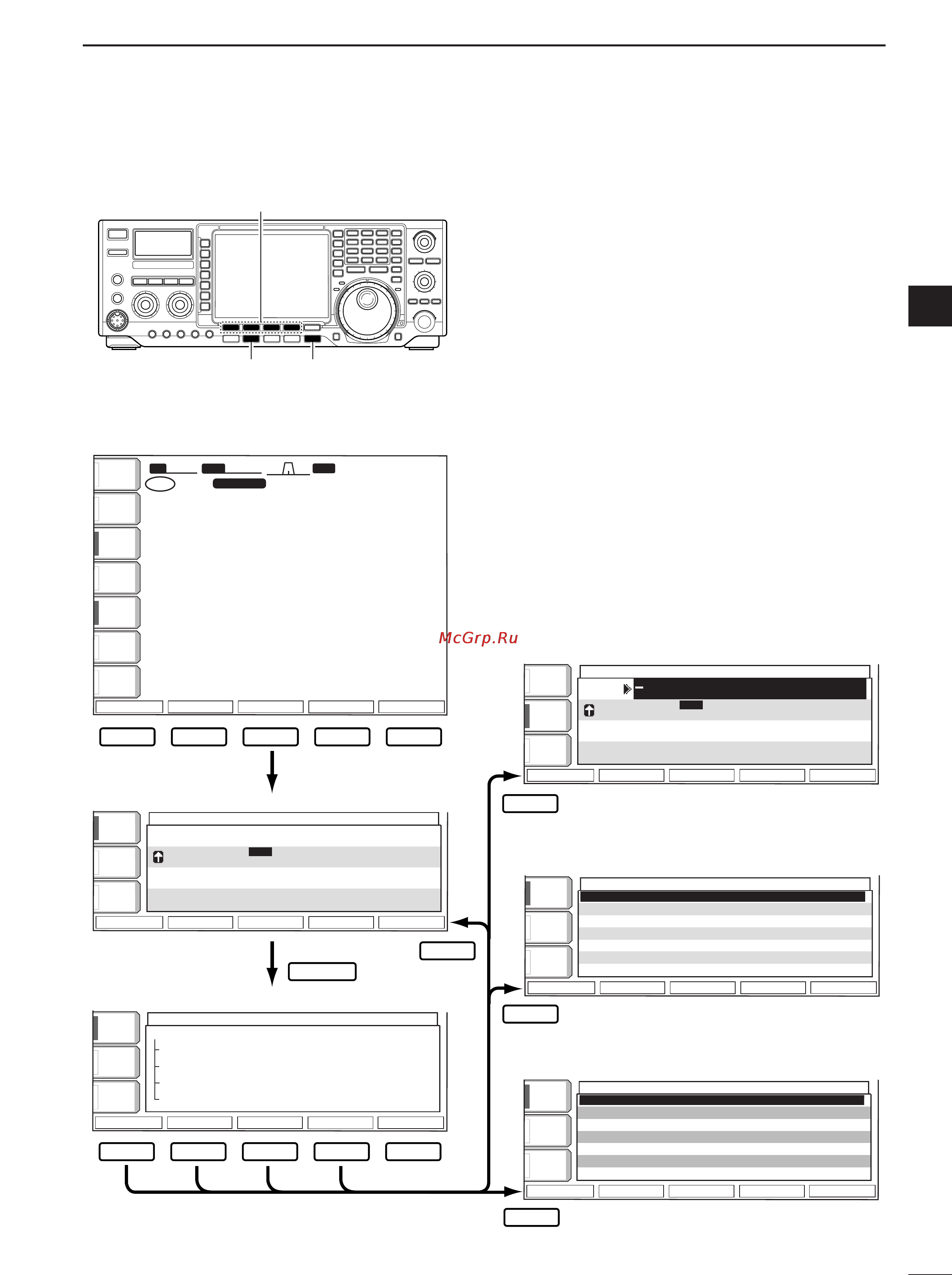

r Push one of the multi-function keys ([F-1] to [F-4])
to select the desired menu. See the diagram
below.
•Push [EXIT/SET] to return to the previous indication.
[CW/RTTY] [EXIT/SET]
[(F-1)]–[(F-4)]
F-1 F-2 F-3 F-4 F-5
BK-INBK-IN
OFFOFF
1/41/4
OFFOFF
AGCAGC
MIDMID
MEMORY KEYERMEMORY KEYER
MEMORY KEYER MENUMEMORY KEYER MENU
SEND Max.55 Characters SEND Max.55 Characters ◊ 4ch 4ch
EDIT Memory Editor EDIT Memory Editor
001 001 Style Contest Number 001 001 Style Contest Number
CW KEY Memo-key,Elec-key,CW Wave Form Set CW KEY Memo-key,Elec-key,CW Wave Form Set
¡Memory keyer menu screen
