RECEIVE AND TRANSMIT
DD
Keyer set mode (continued)
RRiissee TTiimmee
(Rise time)
This item sets the envelop time period which the out-
put power becomes the set transmit power.
•2, 4, 6, or 8 msec. can be selected.
•Push [(F-3)DEF] for 1 sec. to select a default setting.
(default: 4 sec.)
Key action
Tx output power

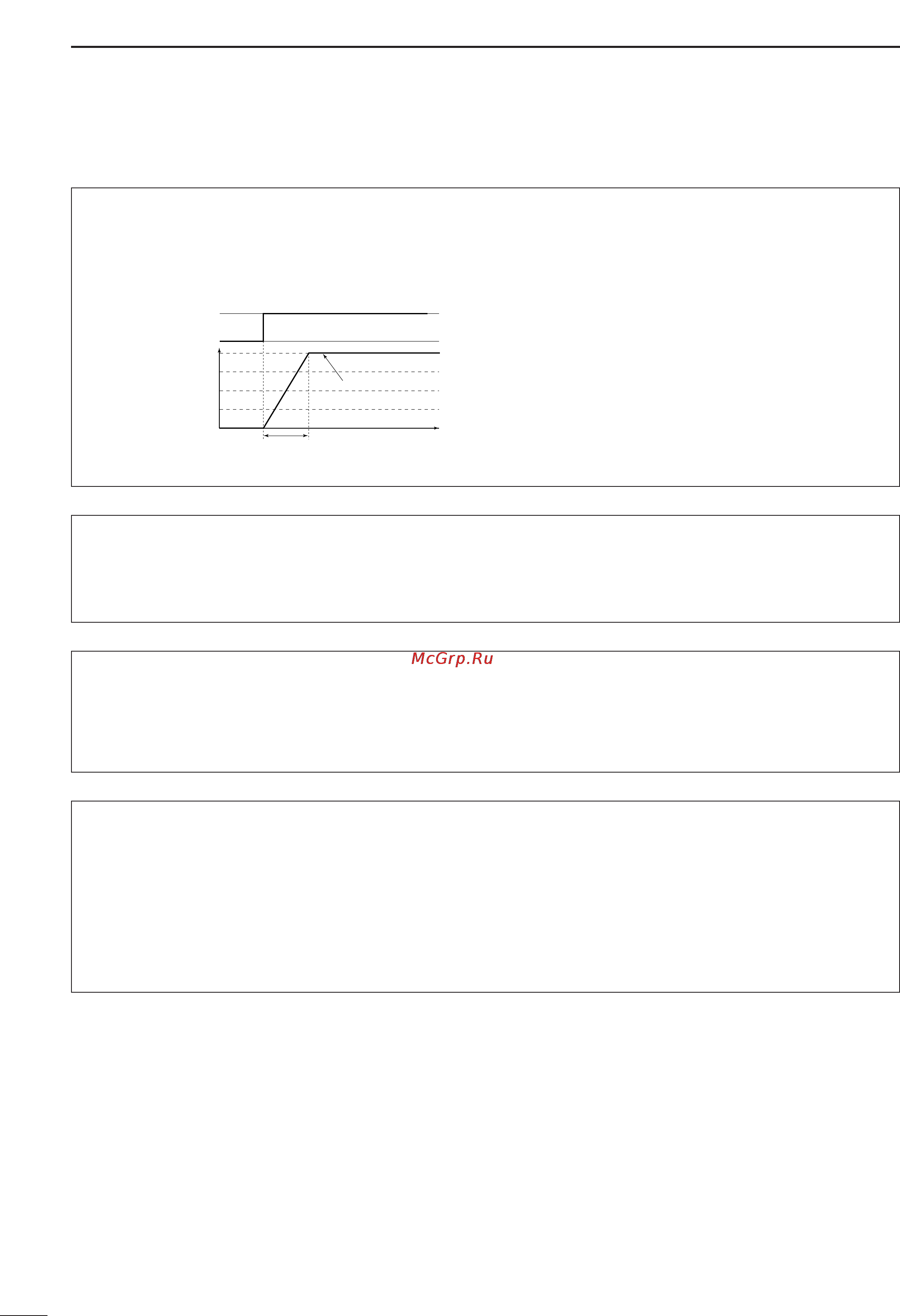

• About rise time
Rise time
Tx
Rx
Set Tx power level
Time
0
PPaaddddllee PPoollaarriittyy
(Paddle polarity)
This item sets the paddle polarity.
•Normal and reverse pooarity can be selected.
•Push [(F-3)DEF] for 1 sec. to select a default setting.
(default: Normal)
KKeeyyeerr TTyyppee
(Keyer type)
This item selects the keyer type for [ELEC-KEY] con-
nector on the front panel.
•ELEC-KEY, BUG-KEY and Straight key can be se-
lected.
•Push [(F-3)DEF] for 1 sec. to select a default setting.
(default: ELEC-KEY)
MMIICC UUpp//DDoowwnn KKeeyyeerr
(Microphone’s [UP]/[DN] switches keyer)
This item allows you to set the microphone [UP]/[DN]
switches to be used as a paddle.
•ON : [UP]/[DN] switches can be used for CW.
•OFF: [UP]/[DN] switches cannot be used for CW.
•Push [(F-3)DEF] for 1 sec. to select a default setting.
(default: OFF)
NOTE: When “ON” is selected, the frequency and
memory channel cnanot be changed using the
[UP]/[DN] switches.
