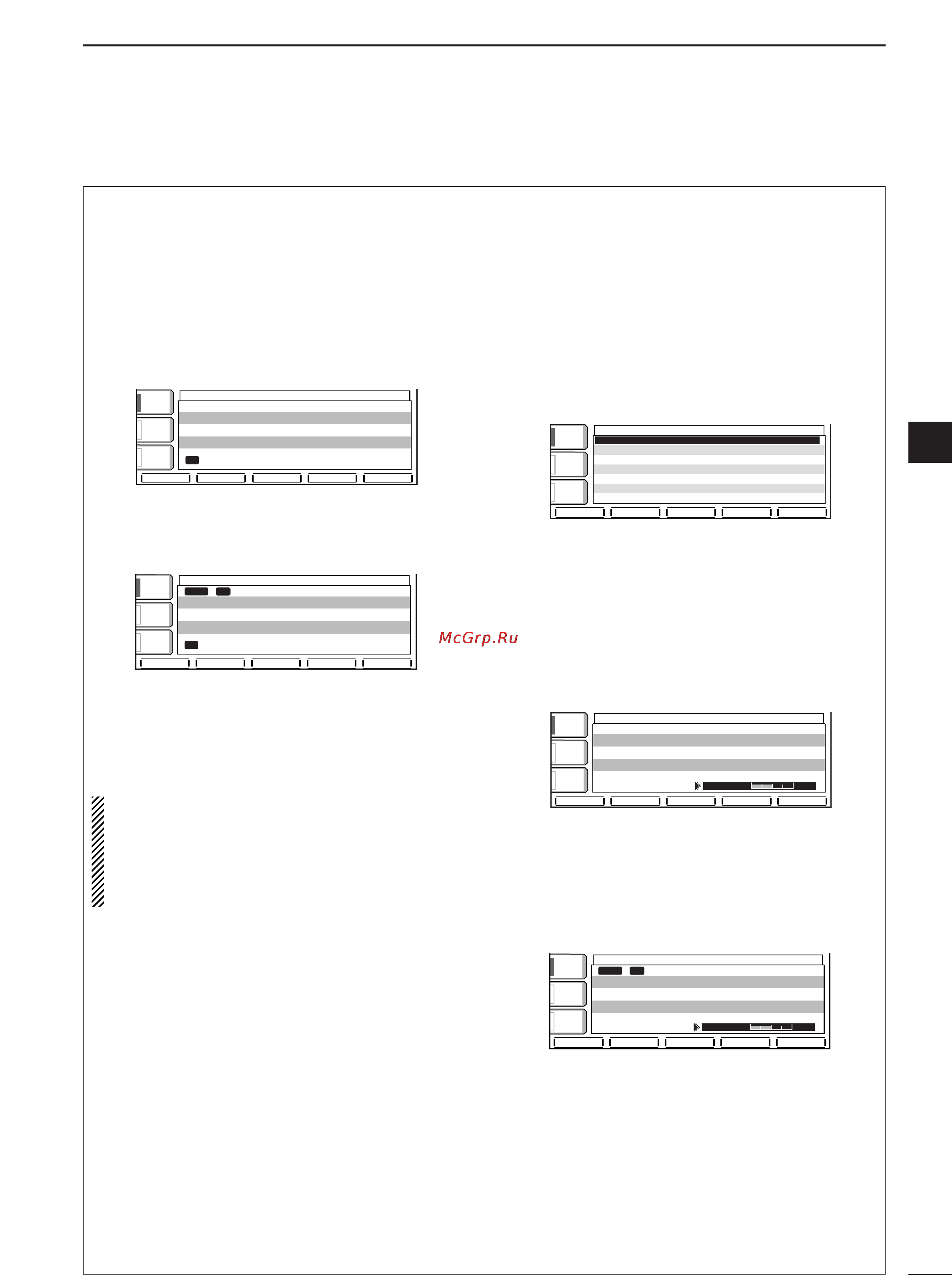

76
7
VOICE RECORDER FUNCTIONS
7
■ Digital voice recorder (continued)
•Sending a message for transmit
q Push [EXIT/SET] several times to close a multi-
function screen, if necessary.
w Select a phone mode by pushing [SSB] or
[AM/FM].
e Push [(F-2)VOICE] to call up the voice recorder
screen.
•If the receive voice memory channel (R1–R4) appears,
push [(F-5)T/R] to select transmit voice memory chan-
nel.
r Push the desired memory channel switch,
[(F-1)T1]– [(F-4)T4], momentarily to transmit the
contents.
t Push the selected memory channel switch,
[(F-1)T1]– [(F-4)T4], again to stop, if desired.
y Push [EXIT/SET] twice to exit the voice memory
screen.
For your information
When an external keypad is connected to the pin 3
and pin 7 of the [MIC] connecter, the recorded
message, T1–T4, can be transmitted without open-
ing the voice recorder set screen.
See page 104 for details.
•Transmit monitor function
The monitor function can be automatically turned ON
while transmitting a voice memory message.
q Call up the voice recorder screen as described at
left.
w Push [EXIT/SET] then [(F-5)SET] to select the
voice recorder set screen.
e Rotate the tuning dial to turn the monitor function
ON and OFF.
•Push [(F-3)DEF] for 1 sec. to select the default condi-
tion.
r Push [EXIT/SET] to return to the voice recorder
screen.
•Transmit level setting
q Call up the voice recorder screen as described at
left.
w Push [(F-3)TX LEV.] to select the voice memory
transmit level set mode screen.
e Push the desired memory channel switch,
[(F-1)T1]– [(F-4)T4], momentarily to transmit the
contents.
r Rotate the tuning dial to adjust the transmit voice
level.
•Push [(F-5)DEF] to select the default condition.
t Push [EXIT/SET] to return to the voice recorder
screen.
