DD

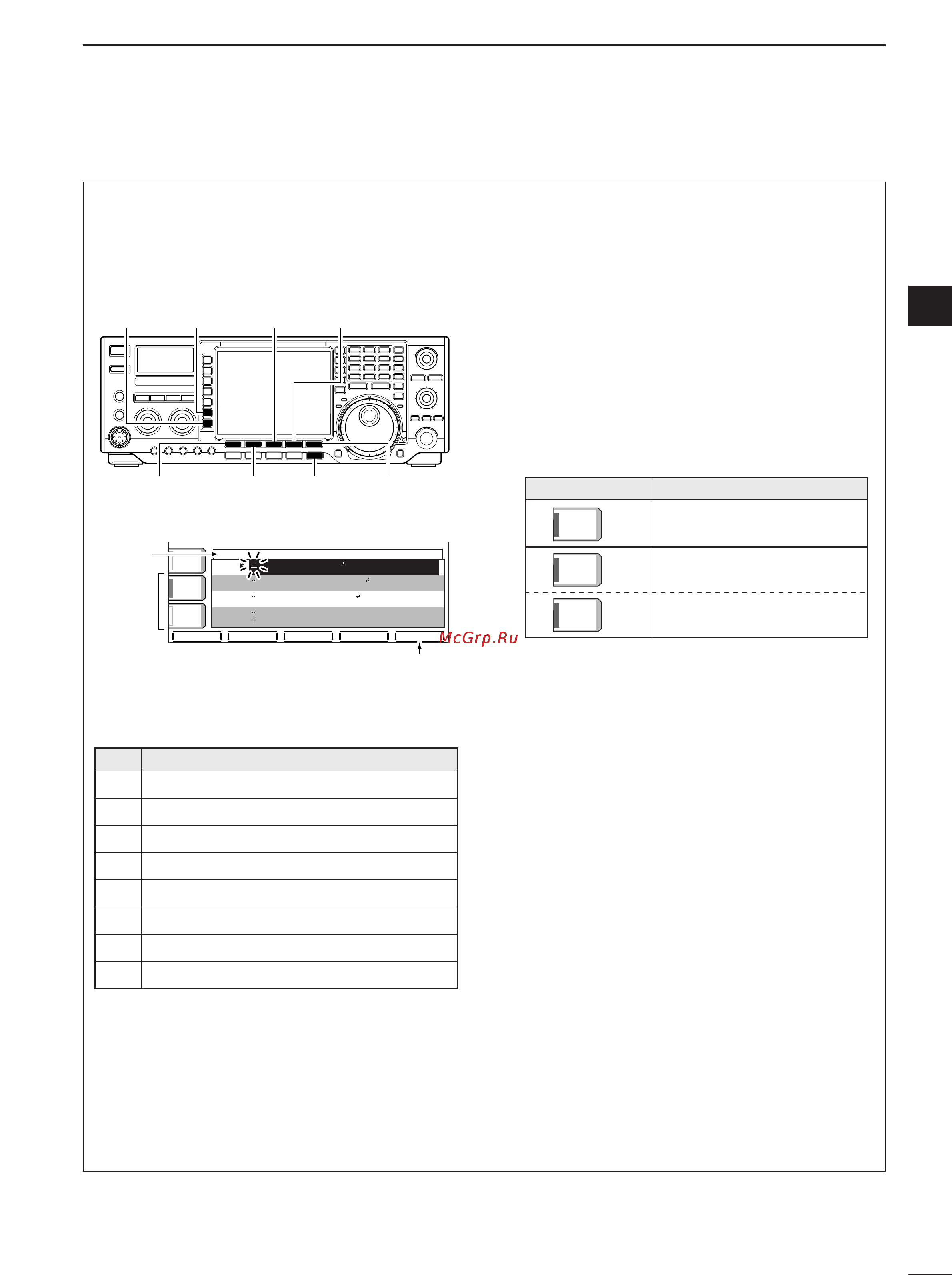

Editing RTTY memory
48
4
RECEIVE AND TRANSMIT
4
The contents of the RTTY memories can be set using
the memory edit menu. The memory can memorize
and re-transmit 8 RTTY contents for often-used RTTY
sentences. Total capacity of the memory is 70 char-
acters per memory channel.
• Pre-programmed contents
•Programming contents
q Push [EXIT/SET] several times, if necessary.
w Push [CW/RTTY] to select RTTY mode.
e Push [(F-3)DECODE] then [(F-1)MENU1] to select
the RTTY decode menu 2.
r Push [(F-2)EDIT] to enter the RTTY memory edit
screen.
t Push [(F-5)RT1..8] several times to select the de-
sired memory channel.
y Select the desired character group by pushing the
character group keys ([ABC], [123] or [etc]) sev-
eral times.
•[etc] appears when [123] is pushed when “123” char-
acter group is selected.
•Selectabel characters (with the tuning dial);
u Select the desired character by rotating the tuning
dial or by pushing the band key for number input.
• Push [(F-1)
ΩΩ
] or [(F-2)
≈≈
] for cursor movement.
• Push [(F-3)DEL] to delete the selected character.
• Push [(F-4)SPACE] to input a space.
i Repeat step u until the desired contents are input.
o Push [(F-5)RT1..8] to select the next memory
channel and repeat step u for character input, if
desired.
!0 Push [EXIT/SET] to set the contents and exit
RTTY memory edit screen.
Key selection
ABCABC
Editable characters
A to Z (capital leters)
123123
0 to 9 (numbers)
! $ & ? " ' – / . , : ; ( ) ↵
etcetc
CH Contents
↵DE ICOM ICOM K↵
↵DE ICOM ICOM ICOM K↵
↵QSL UR 599–599 BK↵
RT1
RT2
RT3
↵QSL DE ICOM ICOM UR 599–599 BK↵
RT4
↵CQ CQ CQ DE ICOM ICOM ICOM K↵
RT6
RT7
RT8
↵73 GL SK↵
(blank)
(blank)
RT5
RTTY MEMORY EDITRTTY MEMORY EDIT
RT1RT1
RT2RT2
RT3RT3
RT4RT4
QSLQSL URUR 599-599599-599 BKBK
QSLQSL DEDE ICOMICOM ICOMICOM URUR 599-599599-599 BKBK
DEDE ICOMICOM ICOMICOM ICOM KICOM K
ç
å
DELDEL
SPACESPACE RT1..8RT1..8
ABCABC
ABCABC
123123
DEDE ICOMICOM ICOMICOM K
Character
group
keys
Selected
character
Memory ch
select
[(F-2)≈][(F-1)Ω]
[123]/[etc] [ABC]
[EXIT/SET] [(F-5)RT1..8]
[(F-3)DEL] [(F-4)SPACE]
