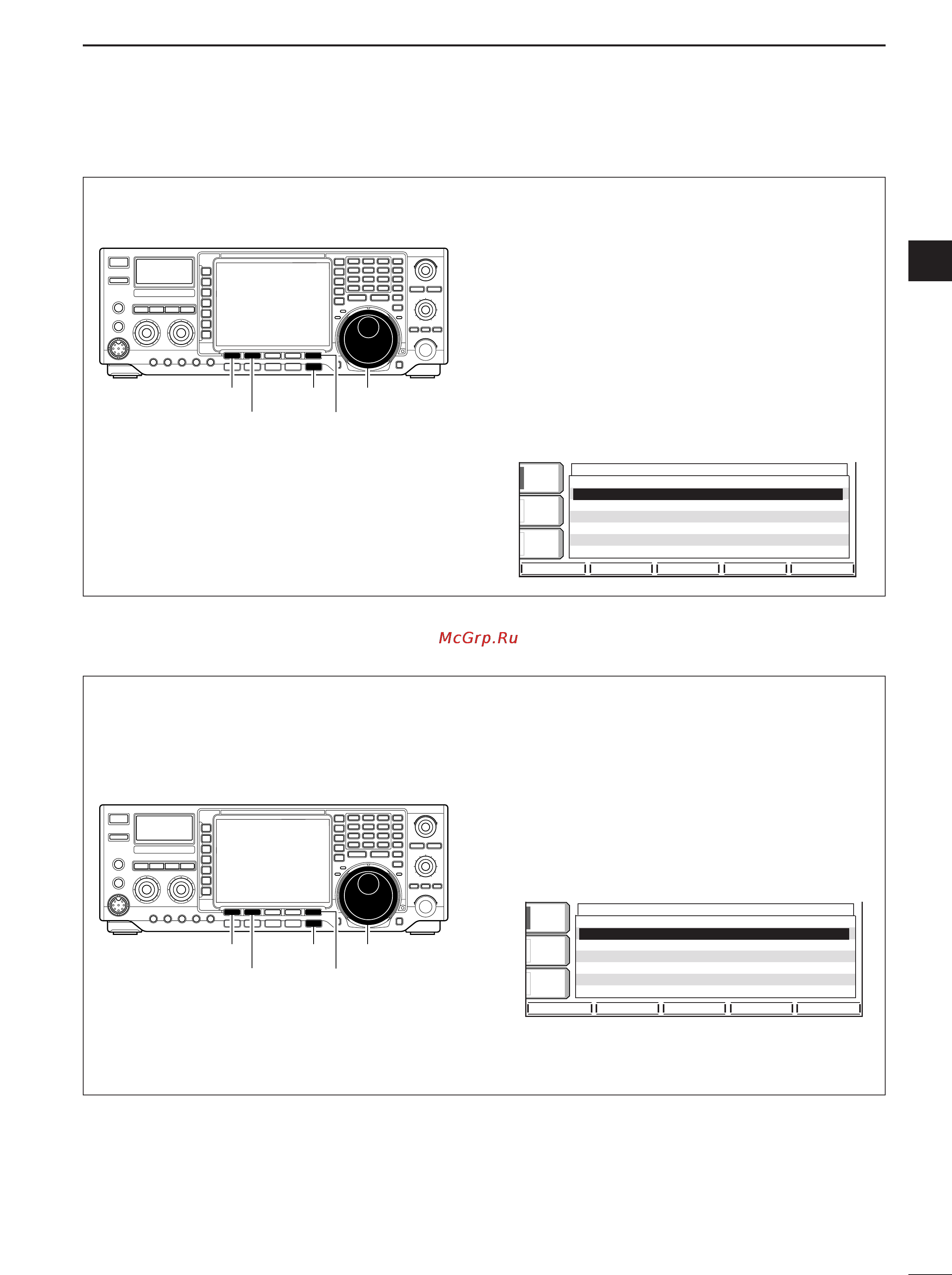

Auto tuning step function
When rotating the tuning dial rapidly, the tuning speed
accelerated automatically as selected.
q Push [EXIT/SET] several times to close a multi-
function screen, if necessary.
w Push [EXIT/SET] for 1 sec. to select the set mode
menu screen.
e Push [(F-5)OTHERS] to enter miscellaneous (oth-
ers) set mode.
r Push [(F-1)
YY
] or [(F-2)
ZZ
] to select “MAIN DIAL
Auto TS.”
t Rotate the tuning dial to select the desired condi-
tion from high, low and OFF.
•High: Approx. 5 times faster
•Low: Approx. twise faster
•OFF: Auto tuning step is turned OFF
y Push [EXIT/SET] to exit the set mode.
OTHERS OTHERS
SETSET
é
è
DEFDEF
WIDEWIDE
BK-INBK-IN
OFFOFF
1/41/4
OFFOFF
AGCAGC
MIDMID
MemopadNumbers OFF
MAIN DIAL Auto TS HIGH
MIC UP/Down Speed HIGH
Quick RIT/∂TX Clear OFF
SSB/CW Synchronous Tuning OFF
CW Normal Side LSB
External Keypad Auto
Tuning dial
[(F-2)Z] [(F-5)OTHERS]
[(F-1)Y] [EXIT/SET]
DD
Band edge warning beep
When selecting a frequency, that lies outside of a
band’s specified frequency range, a warning beep
sounds.
This function can be turned OFF in set mode, if de-
sired.
q Push [EXIT/SET] several times to close a multi-
function screen, if necessary.
w Push [EXIT/SET] for 1 sec. to select the set mode
menu screen.
e Push [(F-5)OTHERS] to enter miscellaneous (oth-
ers) set mode.
r Push [(F-1)
YY
] or [(F-2)
ZZ
] to select “Beep (Band
Edge).”
t Rotate the tuning dial to turn the band edge warn-
ing beep ON and OFF.
y Push [EXIT/SET] to exit the set mode.
OTHERS OTHERS
SETSET
é
è
DEFDEF
WIDEWIDE
BK-INBK-IN
OFFOFF
1/41/4
OFFOFF
AGCAGC
MIDMID
Beep(Confirmation) ON
Beep(Band Edge) ON
RF/SQL Control RF+SQL
Quick Dualwatch ON
Quick SPLIT ON
FM SPLIT Offset(HF) -0.100MHz
FM SPLIT Offset(50M) -0.100MHz
Tuning dial
[(F-2)Z] [(F-5)OTHERS]
[(F-1)Y] [EXIT/SET]
