BASIC OPERATION
3
DD

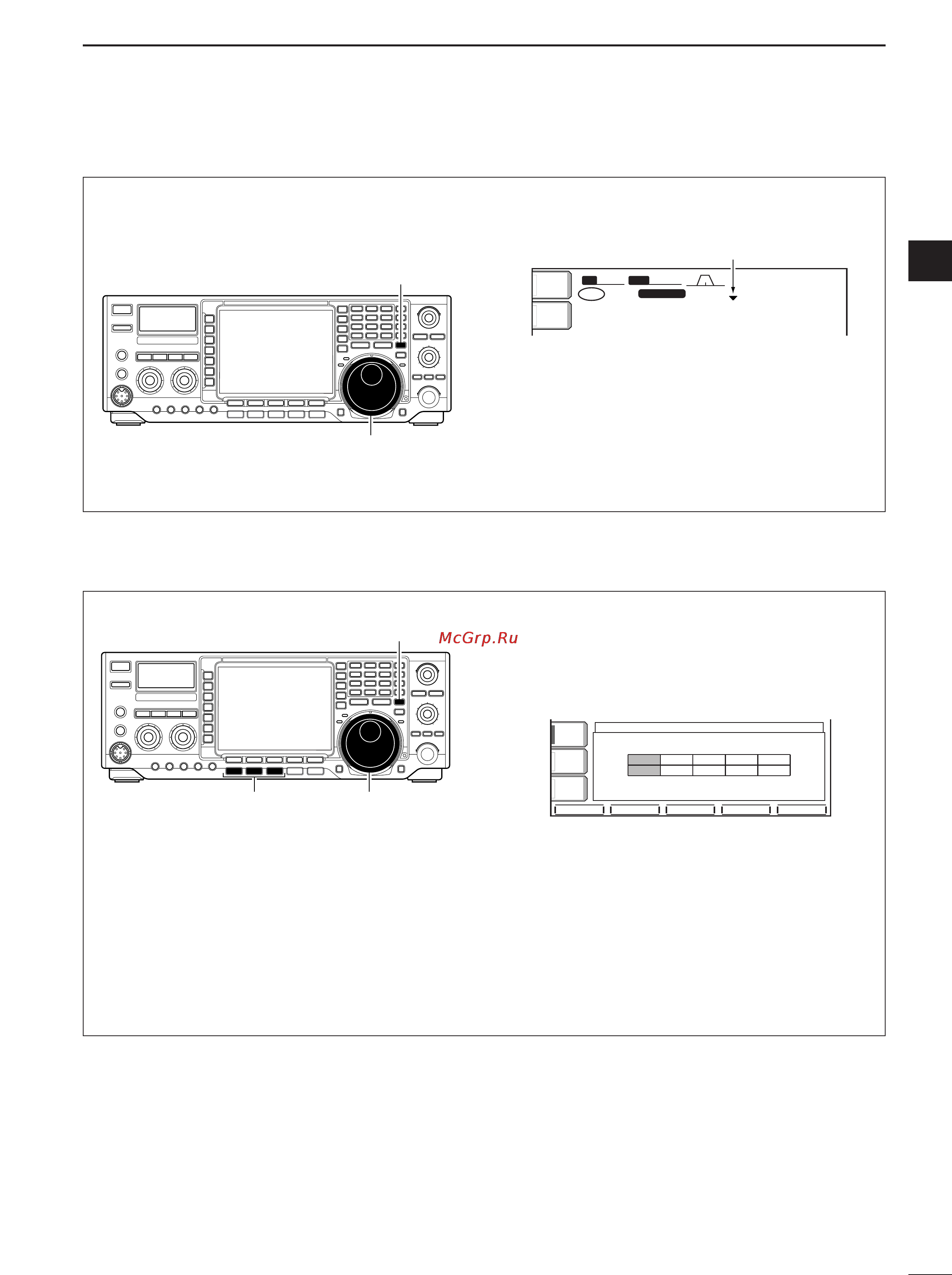

Quick tuning step
The operating frequency can be changed in kHz
steps (0.1, 1, 5, 9, 10, 12.5, 20 or 25 kHz selectable)
for quick tuning.
q Push [TS] momentarily to turn the quick tuning
function ON.
•“Z” appears when the quick tuning function ON.
w Rotate the tuning dial to change the frequency in
programmed kHz steps.
e Push [TS] again to turn the quick tuning function
OFF.
•“Z” disappears.
r Rotate the tuning dial for normal tuning, if desired.
BWBW
2.4k2.4k
SFTSFT
0
FIL2FIL2
TXTX
CWCW
qr.qpp.pp
21.076.5021.076.50
VFOVFO
USBUSB
1
METER
Po
ANT
1
qw:pp
12:0012:00
Quick tuning indicator
[TS]
Tuning dial
DD
Selecting “kHz” step
q Push [TS] momentarily to turn the quick tuning
step ON.
•“Z” appears when the quick tuning function ON.
w Push [TS] for 1 sec. to enter the tuning step set-
ting display.
• Selected tuning steps for all modes appear.
e Select the desired operating mode.
r Rotate the tuning dial to select the desired tuning
step from 0.1, 1, 5, 9, 10, 12.5, 20 or 25 kHz.
•Push [(F-3)DEF] for 1 sec. to return to the default set-
ting, if desired.
t Repeat steps e and r to select quick tuning
steps for other modes, if desired.
y Push [EXIT/SET] to exit the setting display.
DEFDEF
TSTS
FMFMAMAM
1010
(kHz)(kHz)
1111
SSBSSB CWCW RTTYRTTY
VOXVOX
OFFOFF
COMPCOMP
OFFOFF
WIDEWIDE
AGCAGC
MIDMID
[TS]
Tuning dial
Mode selection
