70
6
FUNCTION FOR TRANSMIT
6

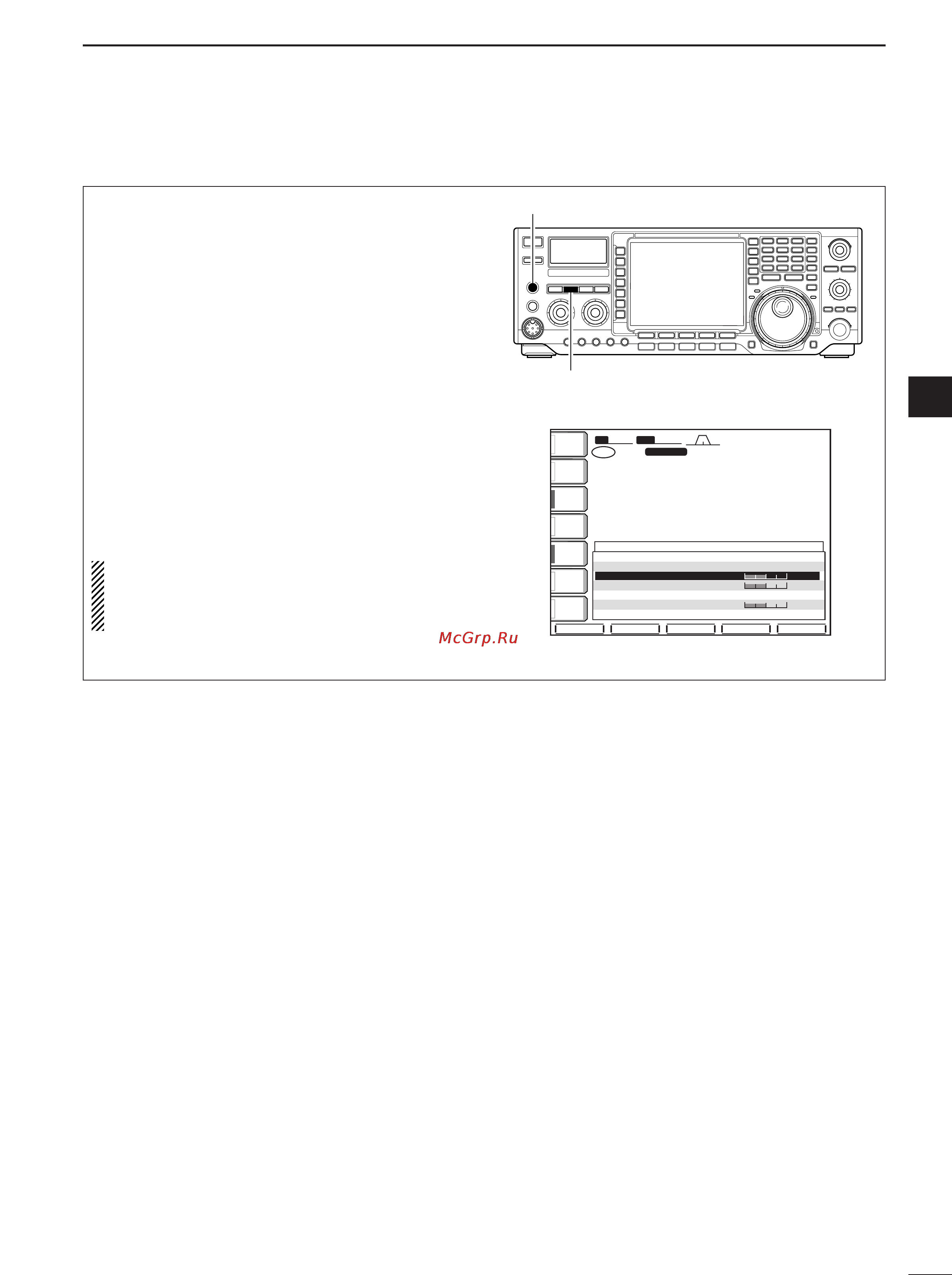

■ Monitor function
The monitor function allows you to monitor your trans-
mit IF signals in any mode through the speaker. Use
this to check voice characteristics while adjusting
SSB transmit tones. (p. 95) The CW side tone func-
tions regardless of the [MONITOR] switch setting.
q Push [MONITOR].
•The indicator (in [MONITOR] switch) lights when the
monitor function is ON.
w Push [EXIT/SET] several times to close a multi-
function screen, if necessary.
e Push [EXIT/SET] for 1 sec. then [(F-1)LEVEL] to
enter level set mode.
r Push [(F-1)
YY
] or [(F-2)
ZZ
] to select the monitor
level item.
t Adjust monitor gain using the tuning dial.
•Pushing [(F-3)DEF] for 1 sec. sets the selected item to
the default value.
y Push [EXIT/SET] twice to exit level set mode.
•Use headphones to prevent feedback.
•Set the transmit tone settings to the 0 dB positions
to check the unaltered characteristics of transmit-
ter or microphone.
BWBW
2.4k2.4k
SFTSFT
0
FIL2FIL2
USBUSB
TXTX
VFOVFO
USBUSB
USBUSB
USBUSB
FIL2FIL2
qr.qot.pp
qr.wpt.pp
14.100.0014.100.00
14.100.0014.100.00
1
1
VFOVFO
é
è
DEF
LEVEL SET
ANTANT
1
COMPCOMP
OFFOFF
WIDEWIDE
METERMETER
PoPo
P.AMPP.AMP
1
AGCAGC
MIDMID
ATTATT
OFFOFF
VOXVOX
OFFOFF
qw:pp
12:00
SSBTBW(NAR) L 500
SSBTBW(NAR) H 2500
MonitorLevel 50%
SideToneLevel 50%
SideToneLevel Limit ON
BeepLevel 50%
BeepLevelLimit ON
[MONITOR]
[PHONES] jack
