25
3
BASIC OPERATION

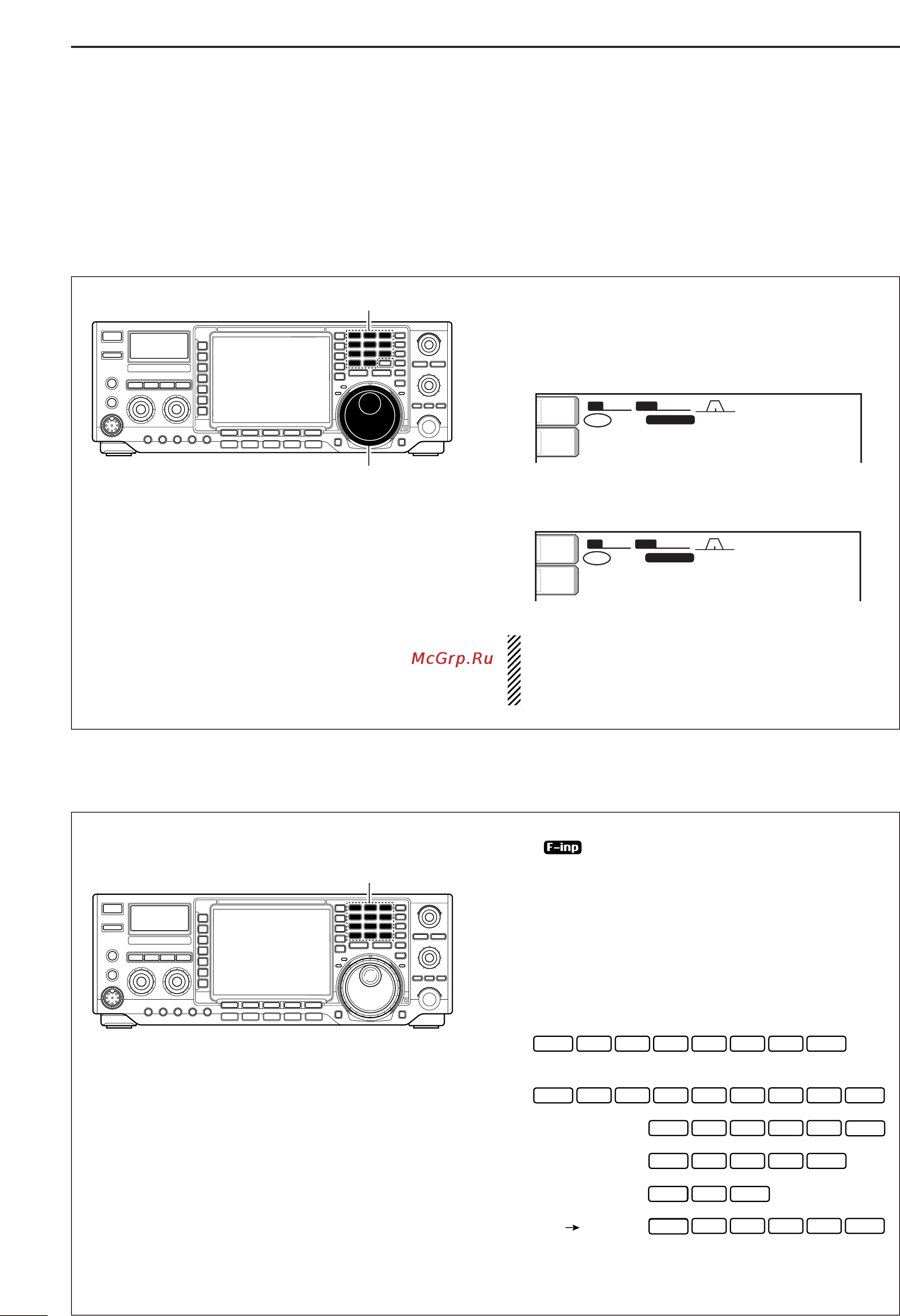

The transceiver has several tuning methods for conve-
nient frequency tuning.
■ Frequency setting
DD
Direct frequency entry with the keypad
DD
Tuning with the tuning dial
q Push the desired band key on the keypad 1–3
times.
•3 different frequencies can be selected on each band
with the band key. (See previous page “Using the band
stacking register.”)
w Rotate the tuning dial to set the desired frequency.
If the dial lock function is activated, the lock indica-
tor lights, and the tuning dial does not function. In
this case, push [LOCK/SPEECH] to deactivate the
lock function. (p. 65)
METER
Po
ANT
1
BW
BW
2.4k
2.4k
SFT
SFT
0
VFO
VFO
FIL2
FIL2
USB
USB
TX
TX
1
CW
CW
wq.wot.pp
21.076.50
21.076.50
qw:pp
12:00
12:00
METER
Po
ANT
1
BW
BW
2.4k
2.4k
SFT
SFT
0
VFO
VFO
FIL2
FIL2
USB
USB
TX
TX
1
CW
CW
wq.wpp.pp
21.076.50
21.076.50
qw:pp
12:00
12:00
Band keys
Tuning dial
The transceiver has a keypad for direct frequency
entry as described right.
q Push [(F-INP)ENT].
•“ ” appears.
w Input the desired frequency.
•Push [(GENE)•] to input “ • (decimal point)” between
the MHz units and kHz units.
e Push [(F-INP)ENT] to set the input frequency.
•To cancel the input, push [MAIN/SUB] instead of
[(F-INP)ENT].
[EXAMPLES]
Keypad
21.280 21.245
14.025 MHz
1 04 2• 5
08 7• 2 5
7 0• 6
2 4• 5
18.0725 MHz
1
706 kHz
F-INP
F-INP
• 15
5.100 MHz
7
7.000 MHz
F-INP
ENT
F-INP
ENT
F-INP
ENT
F-INP
ENT
F-INP
ENT
F-INP
ENT
F-INP
ENT
F-INP
ENT
F-INP
ENT
F-INP
ENT
F-INP
ENT
F-INP
ENT
