RECEIVE AND TRANSMIT
DD

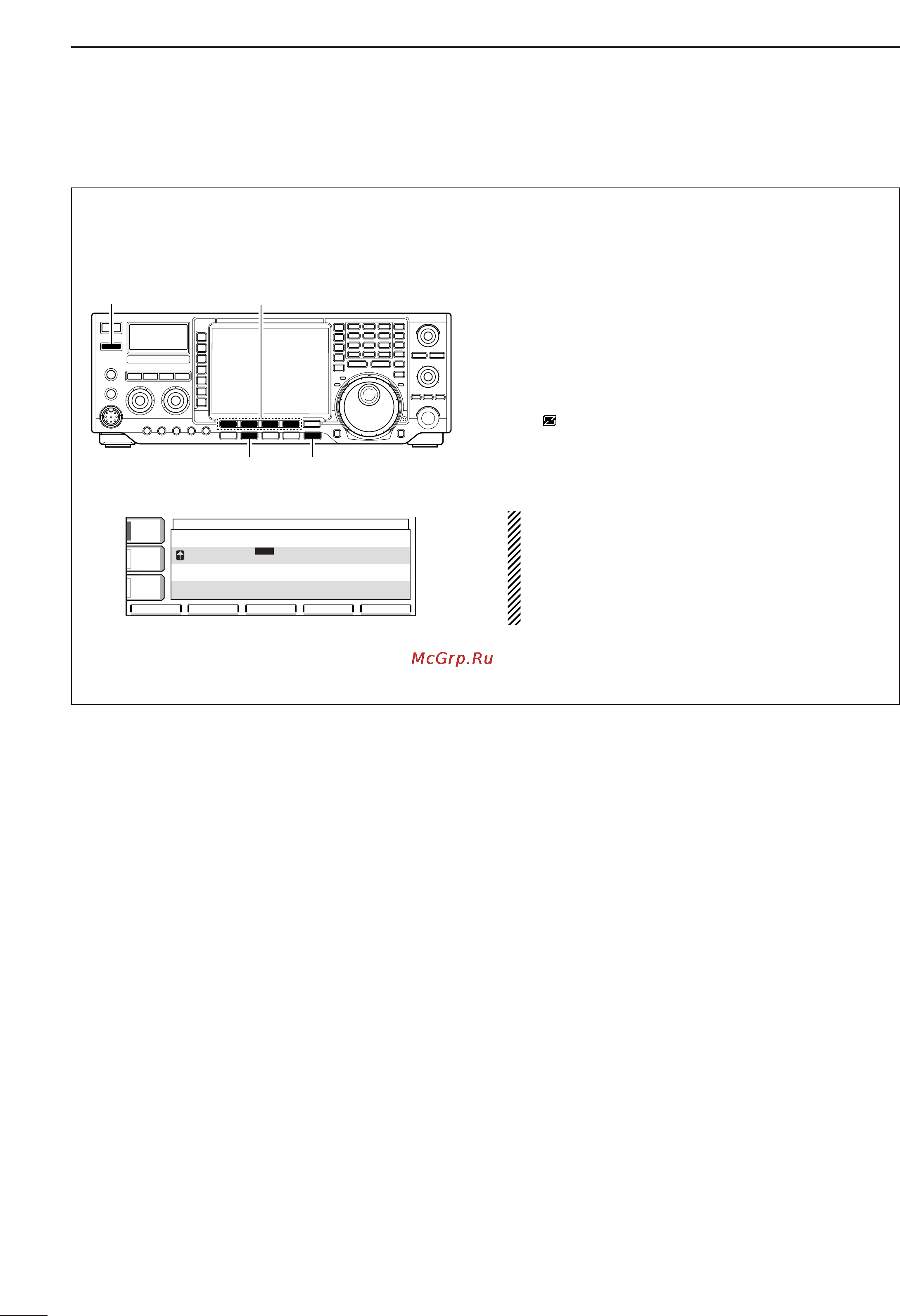

Memory keyer send screen
Pre-set characters can be sent using the keyer send
menu. Contents of the memory keyer are set using
the edit menu.
•Transmitting
q Push [EXIT/SET] several times, if necessary.
w Push [CW/RTTY] to select CW mode.
e Push [(F-3)KEYER] to select the memory keyer
screen.
r Push [TRANSMIT] to set the transceiver to trans-
mit, or set the break-in function ON (p.67).
t Push [(F-1)M1] – [(F-4)M4] momentarily to trans-
mit the contents one time; push these keys for 1
sec. to transmit the contents repeatedly.
• “M1”–“M4” are highlighted while transmitting.
•“ ” appears while transmitting repeatedly.
•
Set the repeat interval of the memory keyer to 1–60 sec.
(1 sec. steps). See p. 42 for keyer set mode.
•To count down the contact number, push [
(F-5)–1].
For your information
When an external keypad is connected to the pin 3
and pin 7 of the [MIC] connecter, the programmed
contents, M1–M4, can be transmitted without open-
ing the memory keyer screen.
See page 104 for details.
y Push [EXIT/SET] twice to exit the memory keyer
screen.
MEMORY KEYER
MEMORY KEYER
M1
M1
M2
M2
M3
M3
M4
M4
CQ
CQ
TEST
TEST
CQ
CQ
TEST
TEST
DE
DE
ICOM
ICOM
ICOM
ICOM
TEST
TEST
QRZ?
QRZ?
CFM
CFM
TU
TU
UR
UR
5NN
5NN
001
001
BK
BK
AGC
AGC
MID
MID
1/4
1/4
OFF
OFF
BK-IN
BK-IN
OFF
OFF
M1
M1
M2
M2
M3
M3
M4
M4
-1
-1
[CW/RTTY]
[TRANSMIT]
[EXIT/SET]
[(F-1)M1]–[(F-4)M4]
