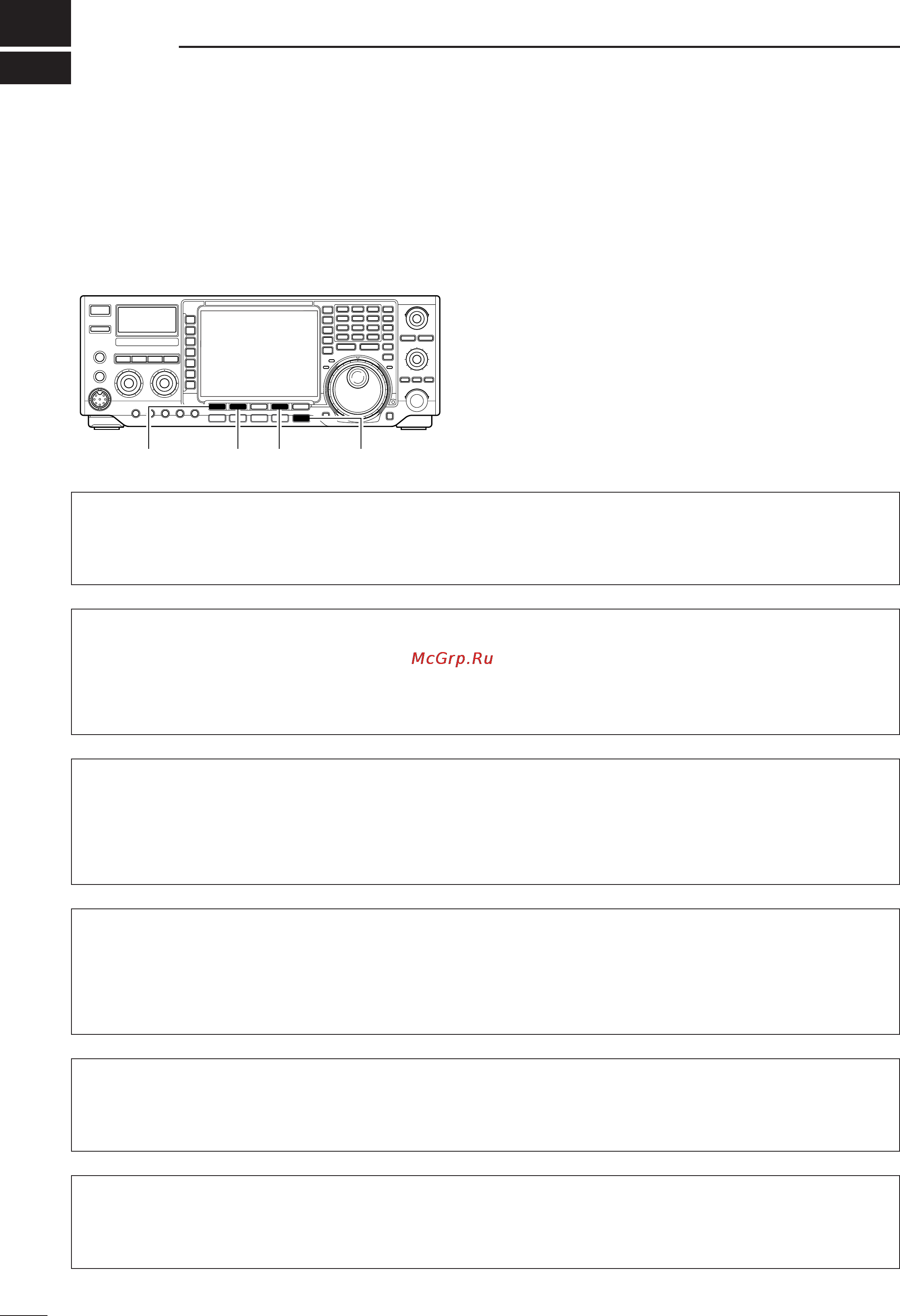

CCLLOOCCKK22 OOffffsseett
This item sets the desired off-set time period for the
clock 2 indication within –24:00 to +24:00 in 5 min.
steps.
•Push [(F-3)DEF] for 1 sec. to set the default value.
00::0000
(default)
++ 99::0000
Rotate the tuning dial to set
the time.
■ Time set mode
The transceiver has a built-in 24-hour clock with
power-off and power-on timer functions. This is useful
when logging QSO’s and so on. The clock indication is
always displayed except after pushing [(F-INP)ENT].
q Push [EXIT/SET] several times to close a multi-
function screen, if necessary.
w Push [EXIT/SET] for 1 sec. to select the set mode
menu screen.
e Push [(F-4)TIME] to enter the time set mode.
r Push [(F-1)
YY
] or [(F-2)
ZZ
] to select the desired
item.
t Rotate the tuning dial to set or select the desired
value or condition.
y Push [EXIT/SET] twice to exit the time set mode.
[(F-4)SET][(F-2)Z] [EXIT/SET][(F-1)Y]
TTiimmee ((NNooww))
This item sets the current time for the built-in 24-hour
clock.
1155::0000
Push [(F-4)SET] to enter the time.
TTiimmeerr FFuunnccttiioonn
This item sets the timer functions ON and OFF.
When the power-ON timer or the power-OFF timer is
used, “ON” must be selected in this item.
•Push [(F-3)DEF] for 1 sec. to set the default value.
OONN
The timer functions can be
operated. (default)
OOFFFF
The timer functions cannot
be operated.
CCLLOOCCKK22 FFuunnccttiioonn
This item turns the clock 2 indication ON and OFF.
The clock 2 is convenient to indicate the UTC or other
country’s local time, etc.
•Push [(F-3)DEF] for 1 sec. to set the default value.
OONN
The clock 2 is displayed
below the local time.
(default)
OOFFFF
The clock 2 does not dis-
play.
PPoowweerr--OOFFFF ppeerriioodd
This item sets the power-off period for automatic shut-
down after the power-on timer has turned power ON.
6600mmiinn
Push [(F-4)SET] to enter the time.
PPoowweerr--OONN TTiimmeerr sseett
This item sets the power-on time.
1155::0000
Push [(F-4)SET] to enter the time.
11
91
