CAUTION

Read the installation manuals of the field supplied parts.

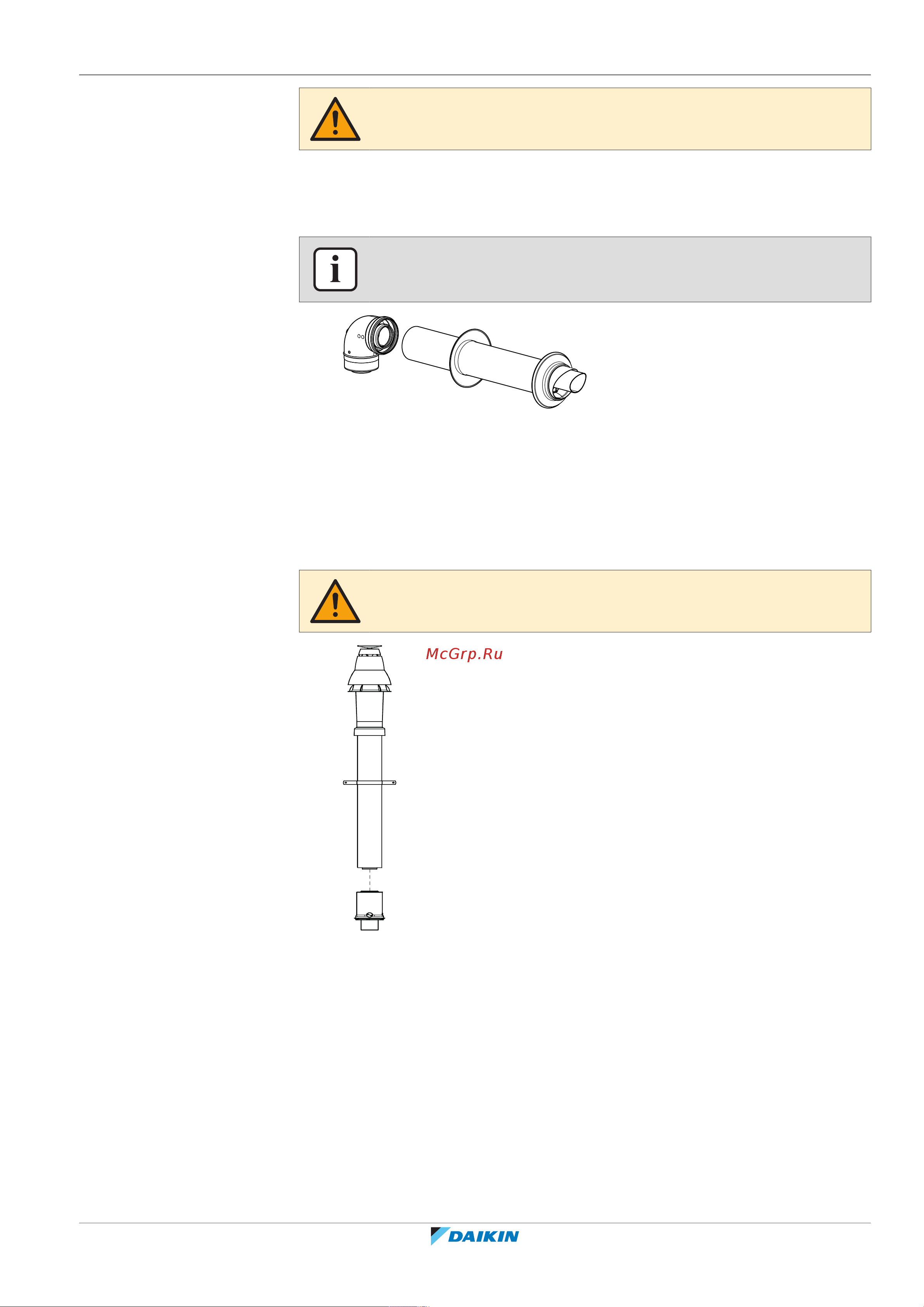

The horizontal flue MUST be installed under a 3° fall towards the boiler (50mm per

metre) and MUST be supported with a minimum of 1 bracket at each meter length.

Best recommended position of the bracket is just before the joint.

INFORMATION

Flexible flue gas lines may NOT be used in horizontal connection sections.

7.13.9 Fitting a vertical flue system

A vertical 60/100 mm flue kit is also available. By using additional components

available from your boiler supplier, the kit can be extended up to a maximum

length as specified in the table indicating the maximum pipe lengths (excluding the

initial boiler connection).

CAUTION

Read the installation manuals of the field supplied parts.

7.13.10 Plume management kit

See the local and national regulations.

Especially for UK:

The plume management kit comprises of a 710 mm horizontal section elbow to

connect the 500mm vertical condensing tube, which has a horizontal or vertical

terminal dependant on your requirements. The maximum length of the horizontal

flue including the terminal but excluding the initial elbow from the boiler and

500mm vertical condensing tube is 7m.
