5 | About the units and options
Installer reference guide
34
EVLQ05+08CAV3 + EHYHBH05AF + EHYHBH/X08AF + EHYKOMB33AA
Daikin Altherma hybrid heat pump
4P355634-1F – 2020.10

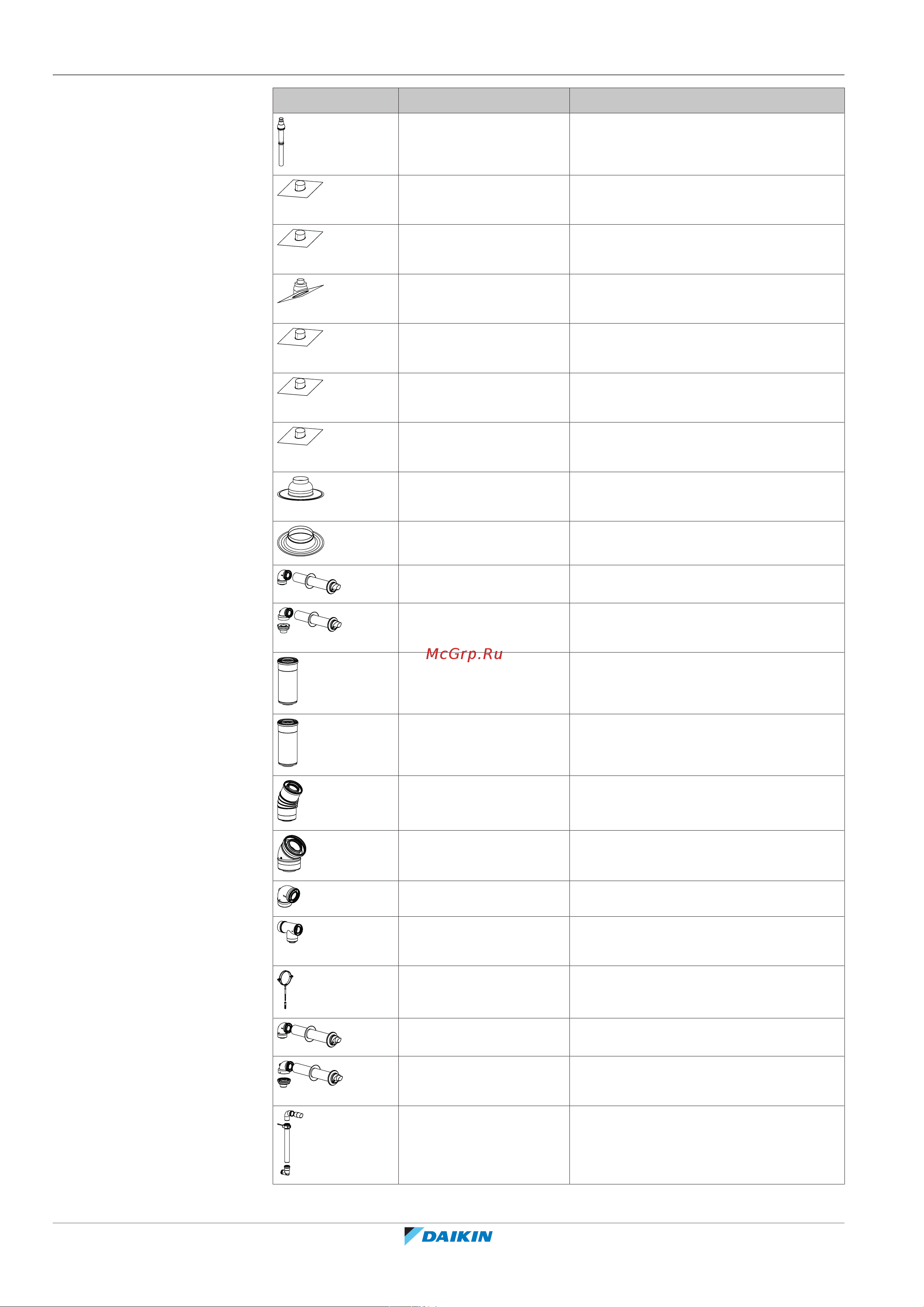

Accessories Part number Description
EKFGP6837 Roof terminal PP/GLV 60/100 AR460
EKFGS0518 Weather slate steep Pb/GLV 60/100
18°-22°
EKFGS0519 Weather slate steep Pb/GLV 60/100
23°-17°
EKFGP7910 Weather slate steep PF 60/100
25°-45°
EKFGS0523 Weather slate steep Pb/GLV 60/100
43°-47°
EKFGS0524 Weather slate steep Pb/GLV 60/100
48°-52°
EKFGS0525 Weather slate steep Pb/GLV 60/100
53°-57°
EKFGP1296 Weather slate flat Aluminium 60/100
0°-15°
EKFGP6940 Weather slate flat Aluminium 60/100
EKFGP2978 Wall terminal kit PP/GLV 60/100
EKFGP2977 Wall terminal kit low profile PP/GLV
60/100
EKFGP4651 Extension PP/GLV 60/100×500mm
EKFGP4652 Extension PP/GLV 60/100×1000mm
EKFGP4664 Elbow PP/GLV 60/100 30°
EKFGP4661 Elbow PP/GLV 60/100 45°
EKFGP4660 Elbow PP/GLV 60/100 90°
EKFGP4667 Meas. tee with inspection panel PP/
GLV 60/100
EKFGP4631 Wall bracket Ø100
EKFGP1292 Wall terminal Kit PP/GLV 60/100
EKFGP1293 Wall terminal kit low profile PP/GLV
60/100
EKFGP1294 Plume management kit 60 (UK only)
