Daikin EHYHBX08AFV3 [94/252] Installation
![Daikin EHYHBX08AFV3 [94/252] Installation](/views2/1798413/page94/bg5e.png)
7 | Installation
Installer reference guide
94
EVLQ05+08CAV3 + EHYHBH05AF + EHYHBH/X08AF + EHYKOMB33AA
Daikin Altherma hybrid heat pump
4P355634-1F – 2020.10
X39A
9 Close the switch box cover of the indoor unit.
10 Close the switch box cover of the gas boiler.
11 Close the gas boiler.

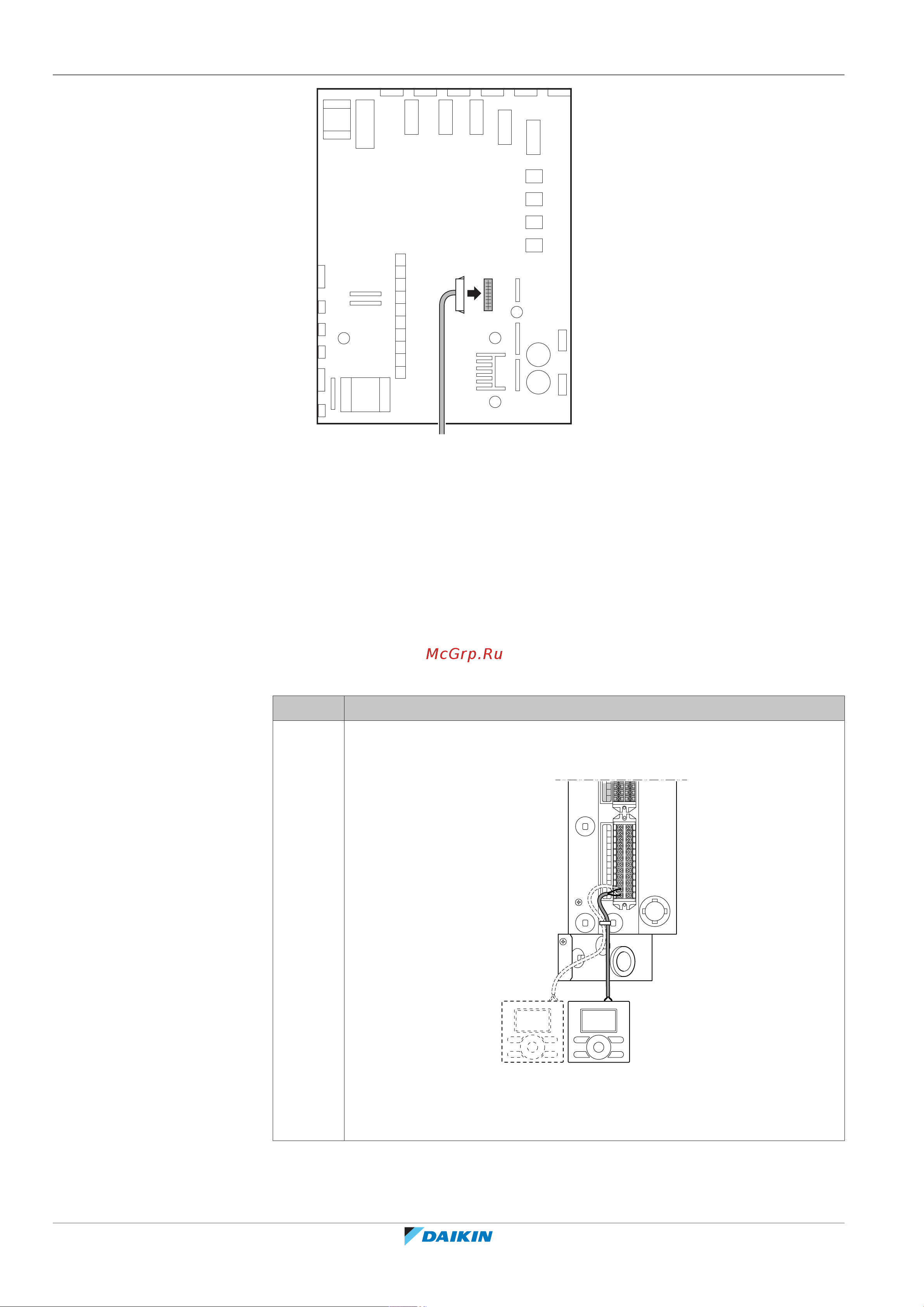

7.11.9 To connect the user interface
▪ If you use 1 user interface, you can install it at the indoor unit (for control close
to the indoor unit), or in the room (when used as room thermostat).
▪ If you use 2 user interfaces, you can install 1 user interface at the indoor unit (for
control close to the indoor unit) + 1 user interface in the room (used as room
thermostat).
# Action
1 Connect the user interface cable to the indoor unit.
Fix the cable with cable ties to the cable tie mountings.
X1M
1
2
X5M
ab
a Main user interface
(a)
b Optional user interface
