8 | Configuration
Installer reference guide
120
EVLQ05+08CAV3 + EHYHBH05AF + EHYHBH/X08AF + EHYKOMB33AA
Daikin Altherma hybrid heat pump
4P355634-1F – 2020.10

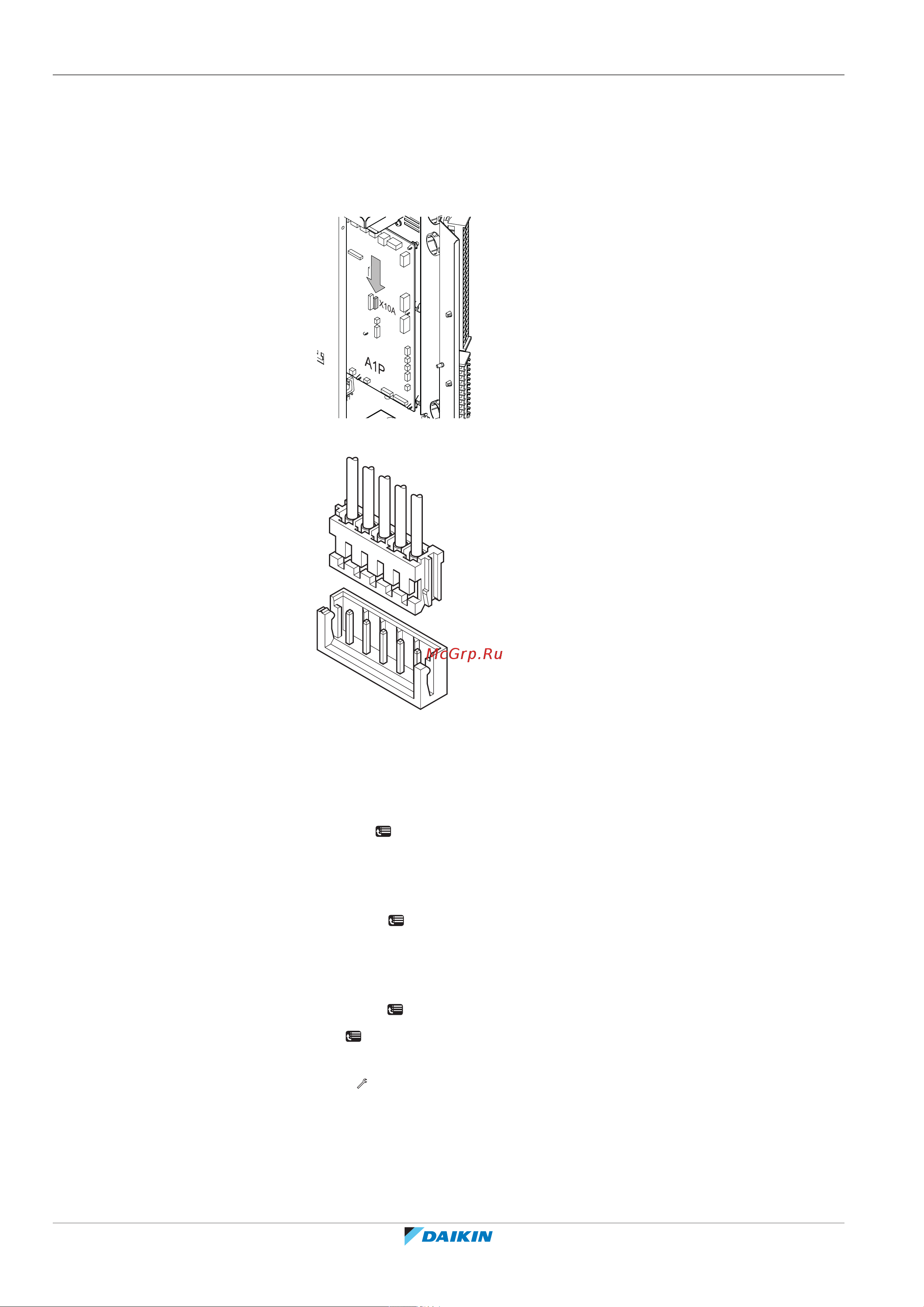

To connect the PC cable to the switch box
Prerequisite: The EKPCCAB4 kit is required.
1 Connect the USB connector of the cable to your PC.
2 Connect the plug of the cable to X10A on A1P of the switch box of the indoor
unit.
3 Pay special attention to the position of the plug!
2
345
H J S T
To access the most used commands
To access the installer settings
1 Set the user permission level to Installer.
2 Go to [A]: > Installer settings.
To access the overview settings
1 Set the user permission level to Installer.
2 Go to [A.8]: > Installer settings > Overview settings.
To set the user permission level to Installer
Prerequisite: Your user permission level is Adv. end user.
1 Go to [6.4]: > Information > User permission level.
2 Press for more than 4seconds.
Result: Your user permission level is now Installer. The home pages
display .
